As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 2.5G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

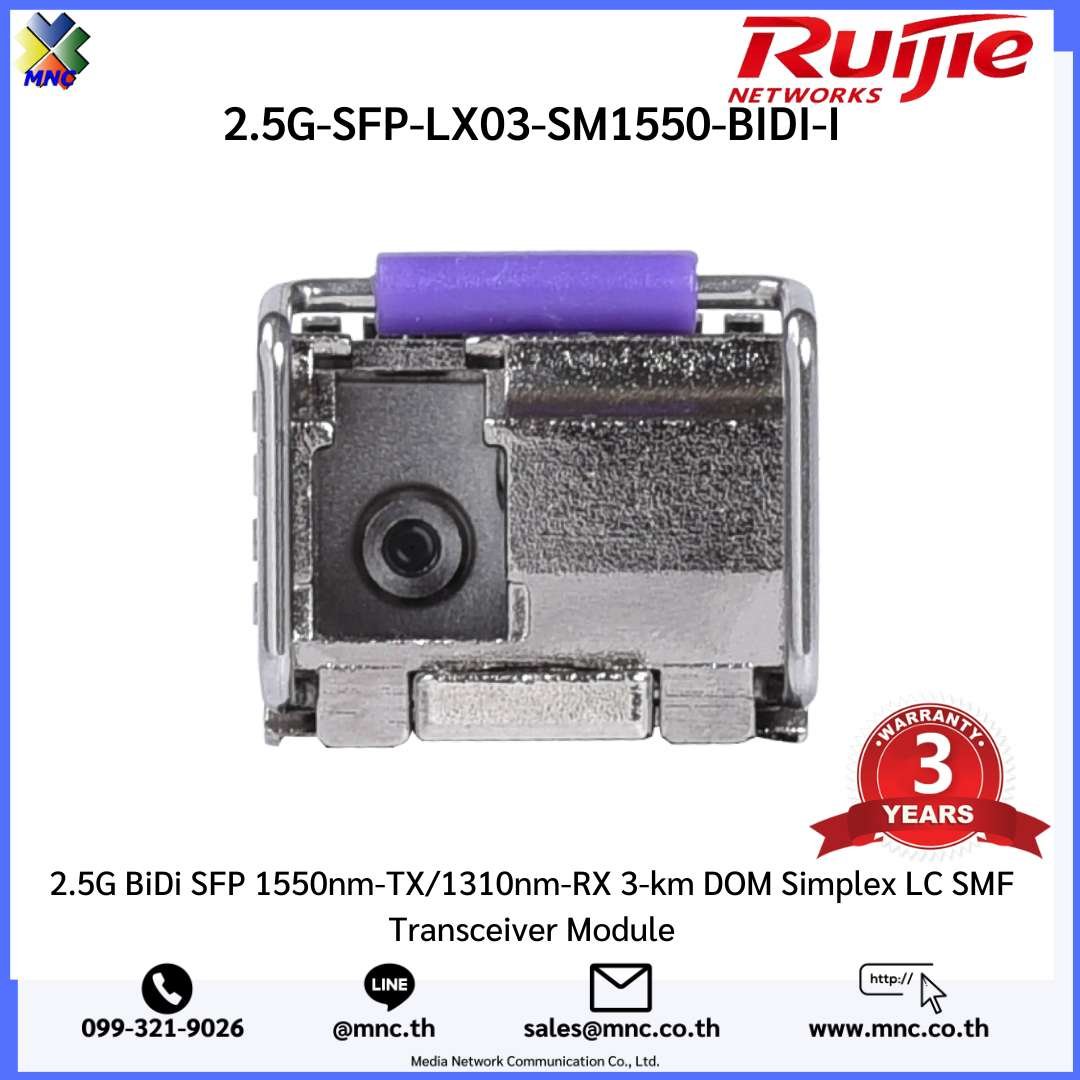

The 2.5G-SFP-LX03-SM1550-BIDI-I is aligned to IEEE 2.5GBASE-LX optical specifications and supports a link length of up to 3 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver conforms to SFF-8431, SFF-8472, and RoHS standards.
Specifications
Optical Module Specifications
| Model | 2.5G-SFP-LX03-SM1311-BIDI-I | 2.5G-SFP-LX03-SM1551-BIDI-I |
| Data rate | 3.125 Gbps | |
| Form factor | SFP | |
| Connector type | BIDI LC | |
| Cable type | SMF | |
| Fiber end face finish type | Ultra Physical Contact (UPC) | |
| Transmitter type | FB | DFB |
| Receiver type | PIN | |
| Reach | 3 km (9,842.52 ft.) | |
| Bit error ratio (BER) | 1.00E-12 | |
| Data diagnosis-capable (DDM/DOM) | Yes | |
| Power consumption | ≤ 1 W | |
| Transmitter Optical Parameters | ||
| Wavelength | 1310 nm TX
1550 nm RX |
1550 nm TX
1310 nm RX |
| Max. transmit power (AVG) | –3 dBm | |
| Min. transmit power (AVG) | –9 dBm | |
| Min. extinction ratio | ≥ 6.5 dB | |
| Receiver Optical Parameters | ||
| Receive sensitivity (OMA) | < –16 dBm | |
| Overload optical power (AVG) | –3 dBm | |
| Environment and Reliability | ||
| Operating temperature | –40ºC to +85ºC (–40ºF to +185ºF) | |
| Operating humidity | 10% RH to 90% RH | |
| Storage temperature | –40ºC to +85ºC (–40ºF to +185ºF) | |
| Storage humidity | 10% RH to 90% RH | |
| Dimensions and Weight | ||
| Dimensions
(W x D x H) |
56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.51 in. x 0.33 in.) | |
| Weight | 35 g (0.08 lbs.) | |
Warranty
- 3 Years warranty
