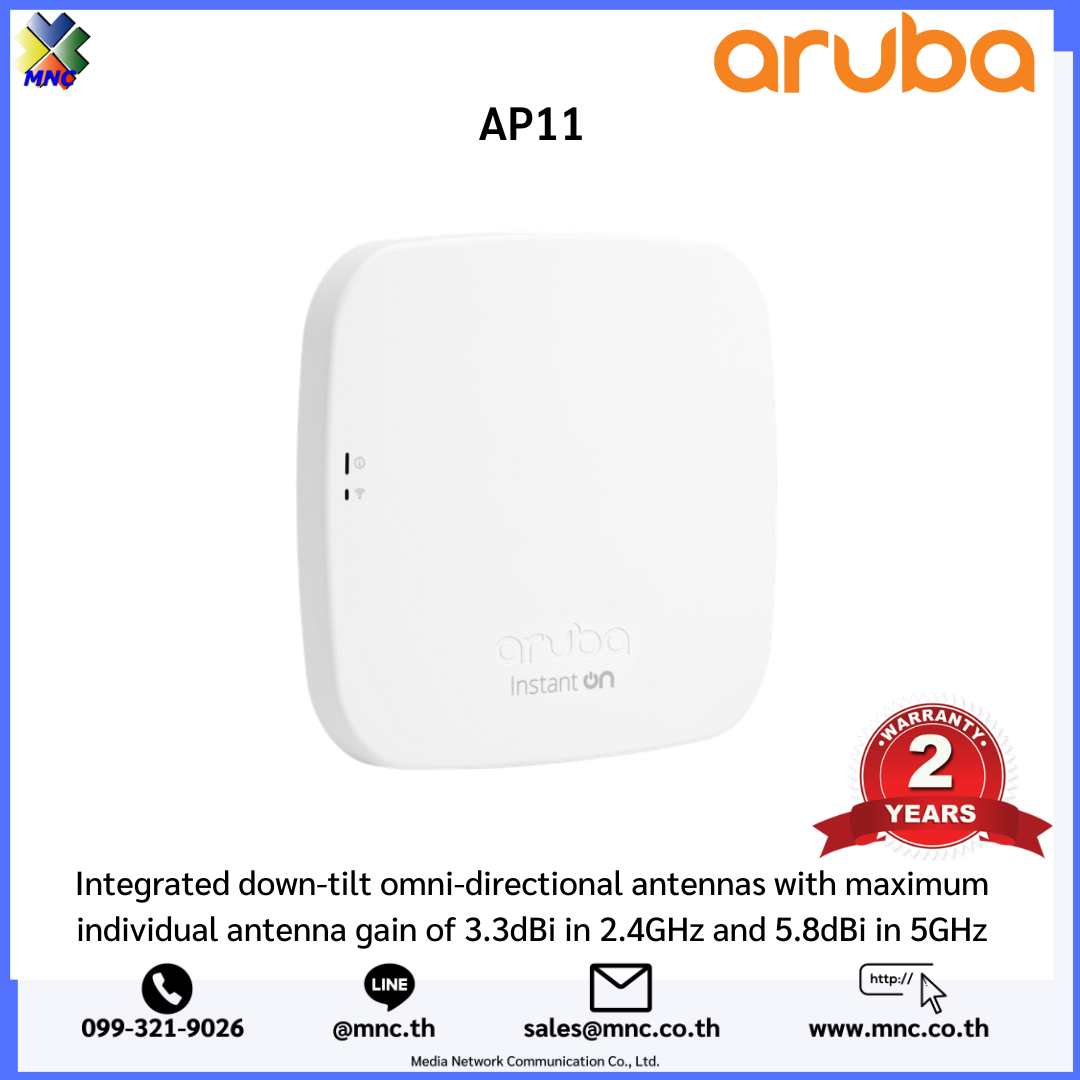

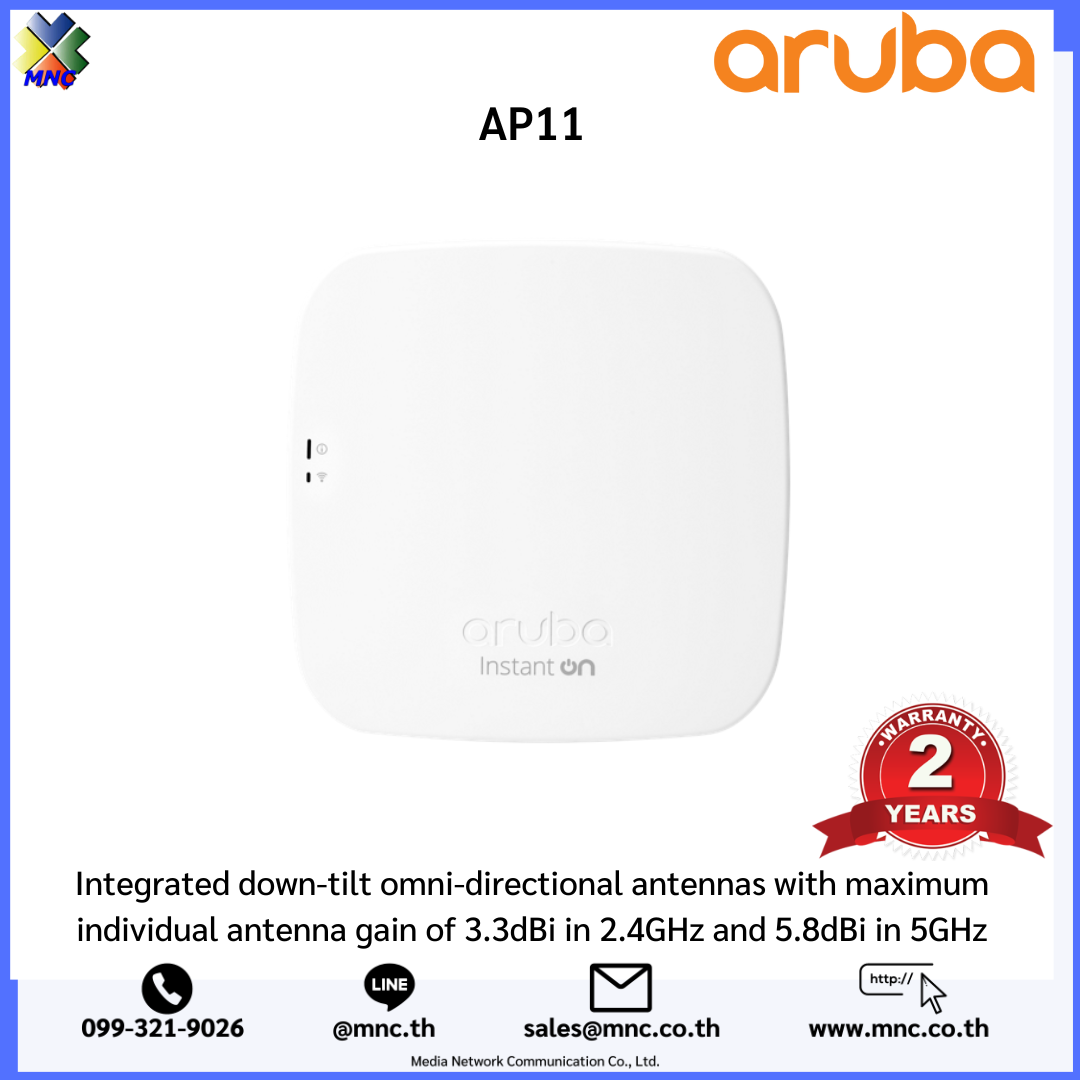

HPE Networking Instant On Access Points AP11
Aruba Instant On AP11 Indoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for low- to medium-density small business environments. Business-grade capabilities are designed to meet the mobile, IoT, and security needs of smaller law firms, dental offices, and retailers at an attractive price point.
The compact form factor of the Aruba Instant On AP11 indoor access points deliver enhanced security, multi-user capabilities, and an aggregate peak data rate of 1.2 Gbps to support high-definition video streaming and cloud application requirements. These access points (AP) come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications. The Aruba Instant On AP11 indoor AP is designed for cost-effective, small business deployments such as café, exclusive boutique stores, and Small Office/Home Office.
Specifications
CertificationsUL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Input voltagePower over Ethernet (POE): 802.3af (class 3) or DC power (12V). Power sources sold separately.
Wi-Fi antennaIntegrated down-tilt omni-directional antennas with maximum individual antenna gain of 3.3dBi in 2.4GHz and 5.8dBi in 5GHz
Connectivity, standardIEEE 802.11ac, 802.11n
Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

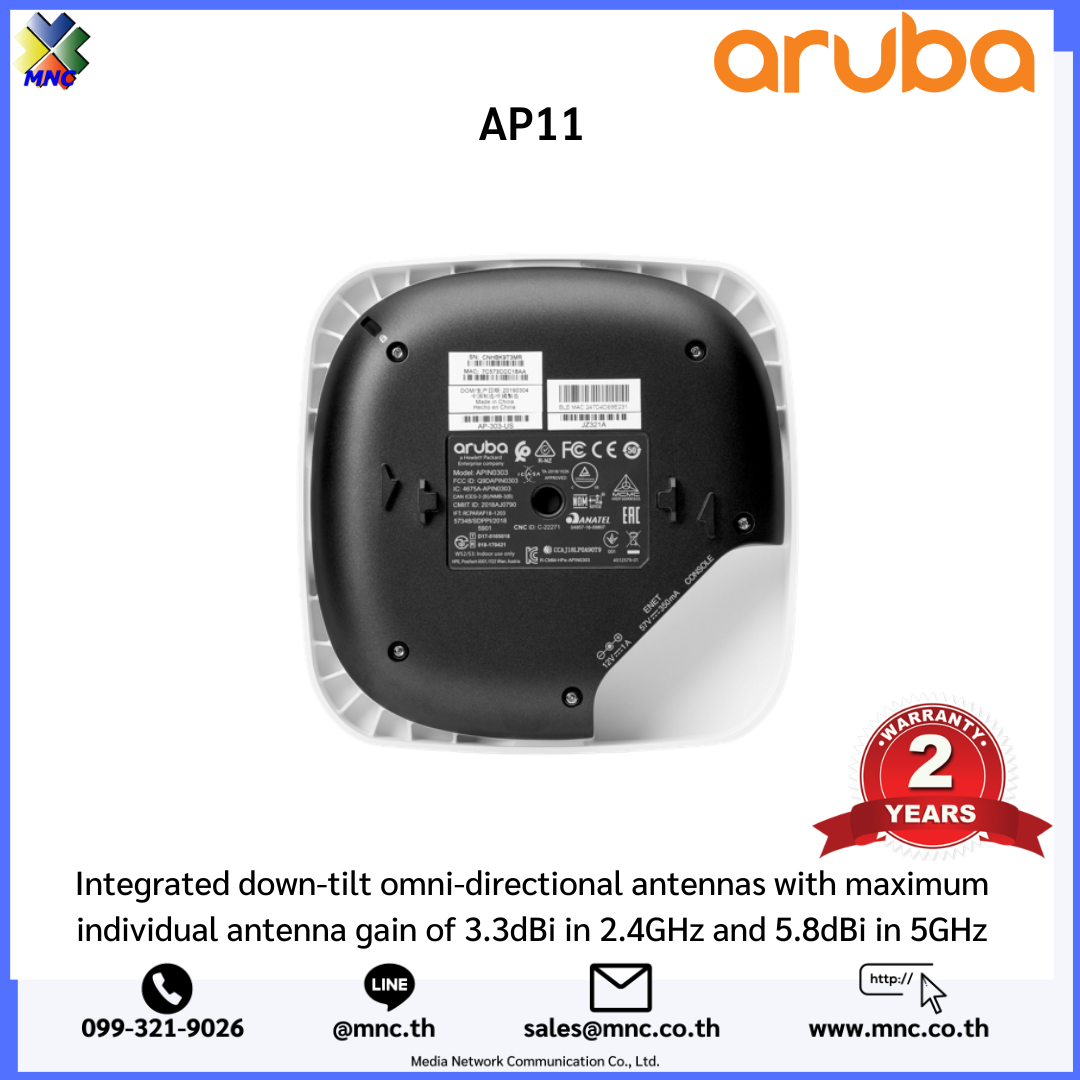

MountingThe access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling).
Radio coverageDual radio for simultaneous dual-band operation.
5 GHz 802.11ac 2×2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5).
2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4).
WarrantyAruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.
Weight193 g (0.4 lb)

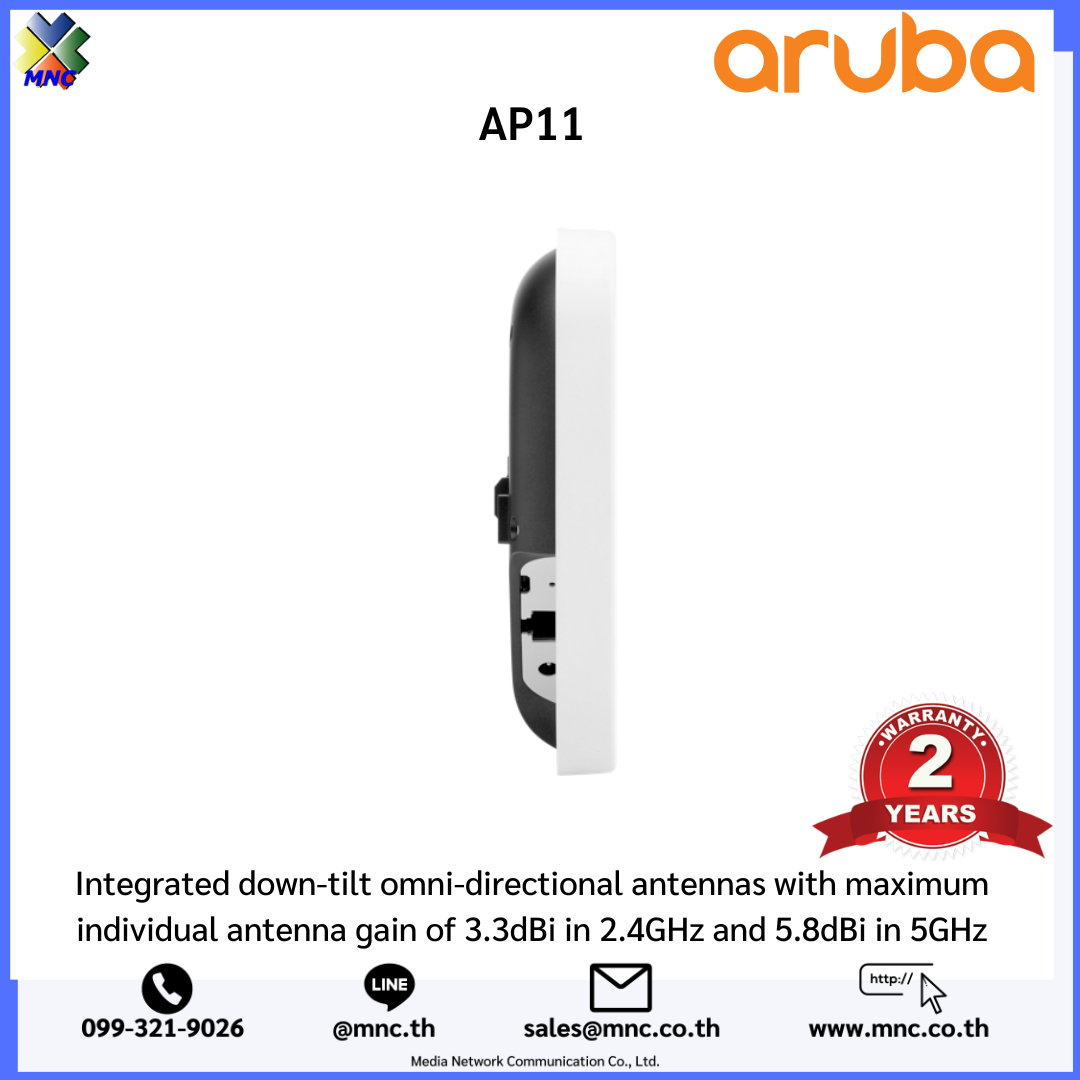

Dimensions34 x 152 x 152 mm (1.3 x 6.0 x 6.0 in)
Warranty
- 2 warranty
Download
Product Datasheet
