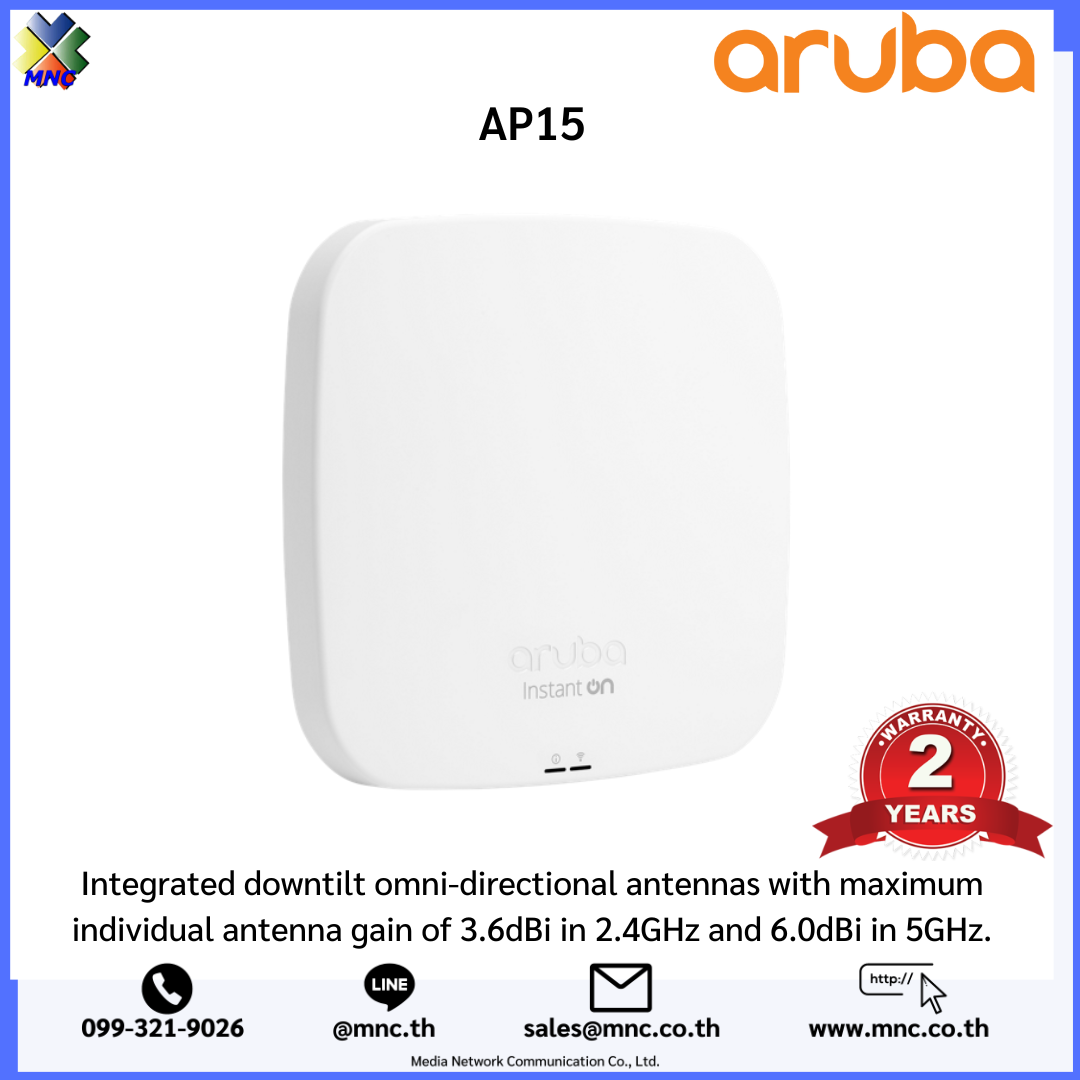

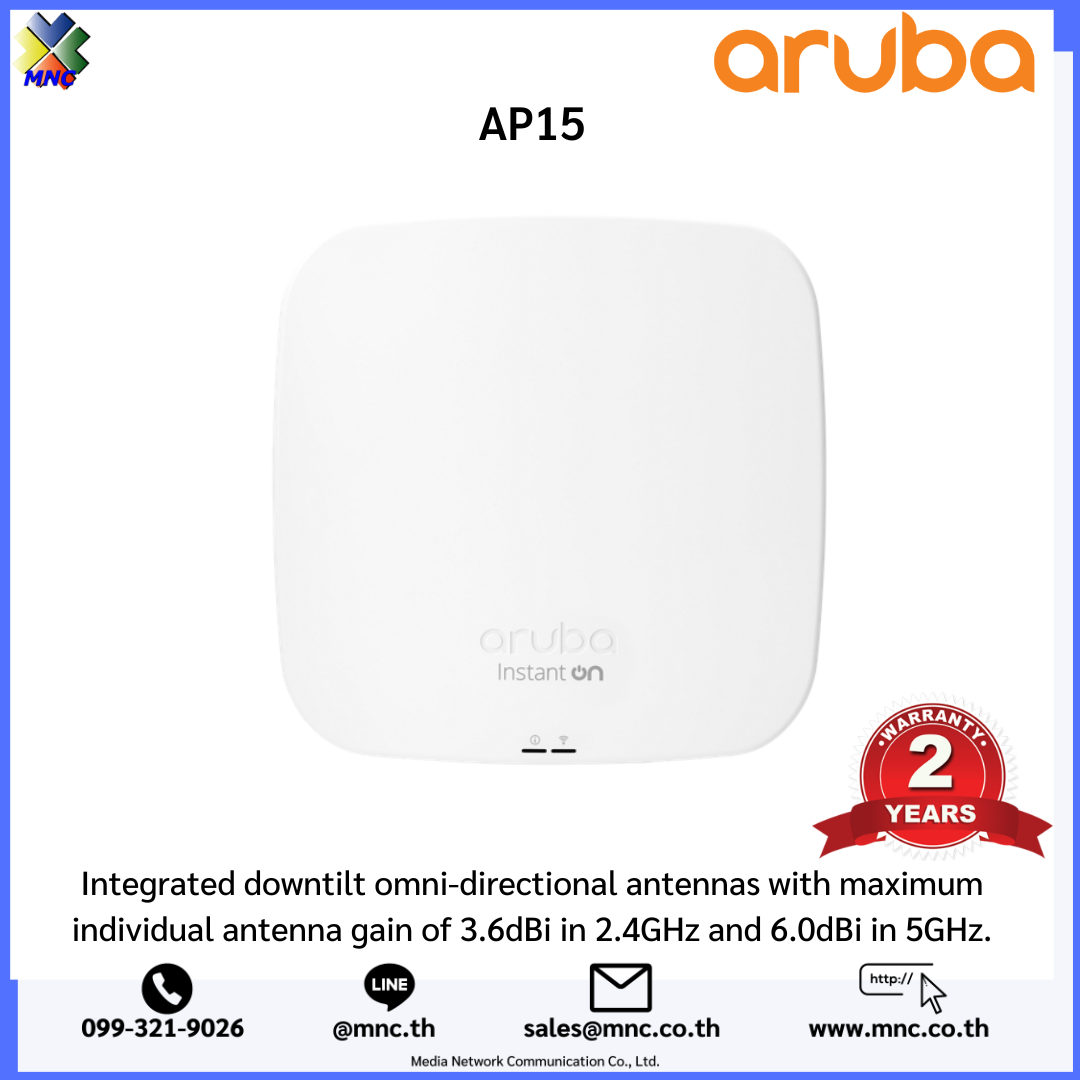

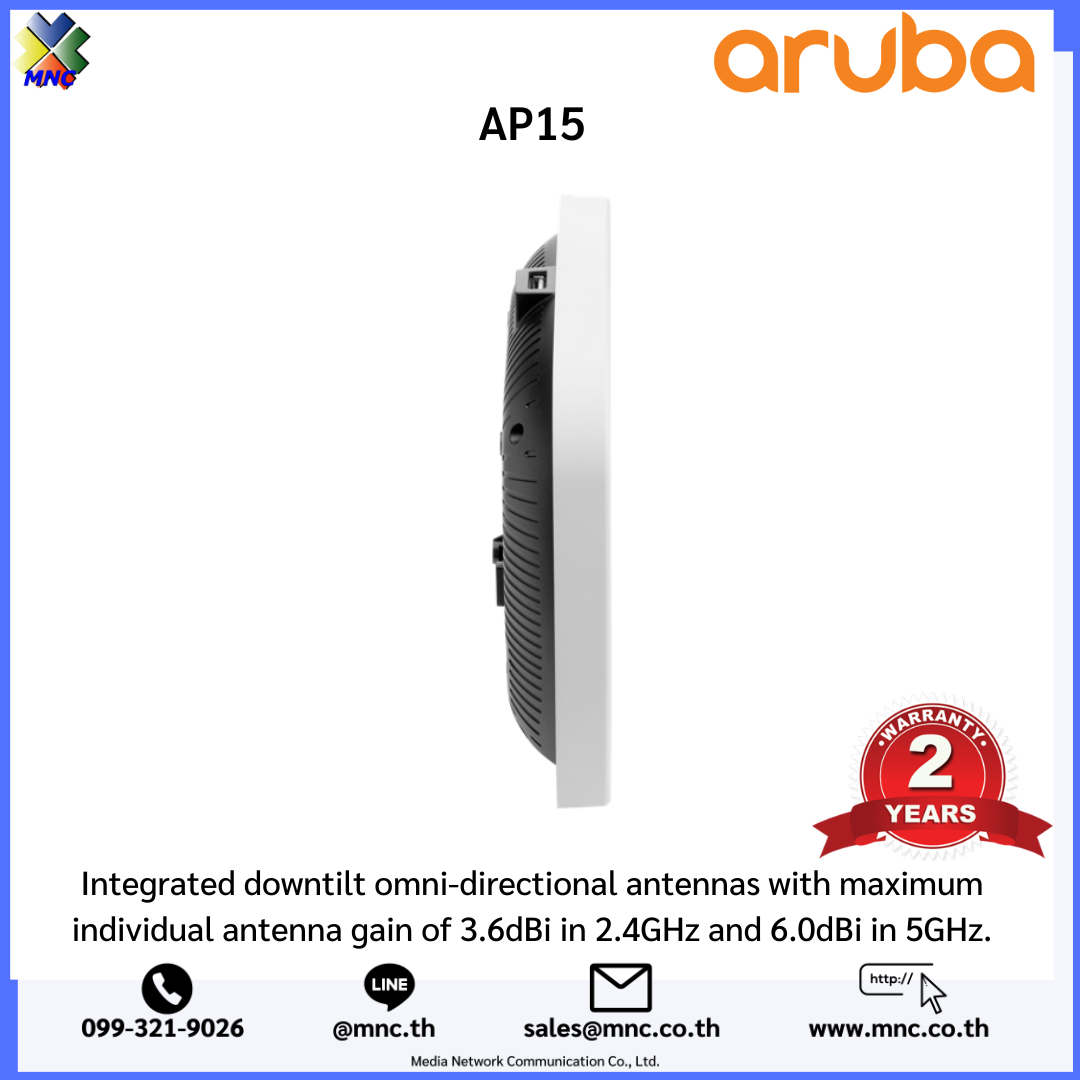

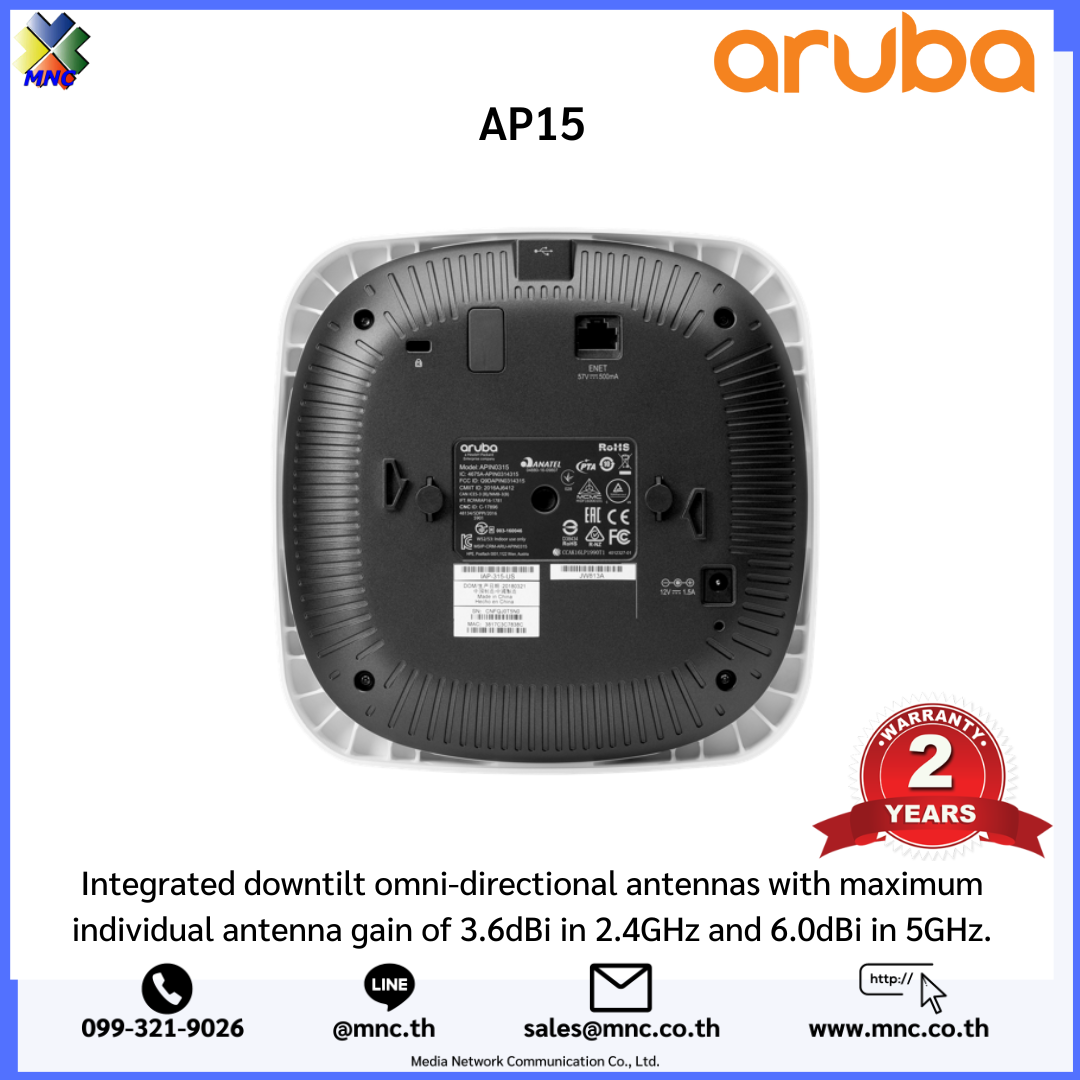

Aruba Instant On AP15 Indoor Access Points
Aruba Instant On AP15 Indoor Access Points deliver affordable, premium-grade Wave 2 802.11ac Wi-Fi for medium-density small business environments requiring high performance and bandwidth. Business-grade capabilities are designed to meet the mobile, IoT, and security needs of tech-start-ups and retail stores at an attractive price point.
The compact form factor delivers reliable and affordable multi-user capabilities and an aggregate peak data rate of 2 Gbps to support high-definition video streaming and cloud application requirements. These Aruba Instant On AP15 Indoor Access Points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications.
The Aruba Instant On AP15 Indoor APs are designed for small business deployments demanding high-traffic, high-performance network environments like tech-start-ups and co-working spaces.
Specifications
CertificationsUL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Input voltagePower over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately
RegulatoryUL2043 plenum rating
Wi-Fi antennaIntegrated downtilt omni-directional antennas with maximum individual antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz.
Connectivity, standardIEEE 802.11ac, 802.11n
Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
MountingThe access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)
Radio coverageDual Radio for simultaneous dual-band operation
5 GHz 802.11ac 4×4 MIMO for up to 1,733 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
WarrantyAruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.
Weight674 g (1.5 lb)
Dimensions41 x 183 x 183 mm (1.6 x 7.2 x 7.2 in)
Warranty
- 2 warranty
