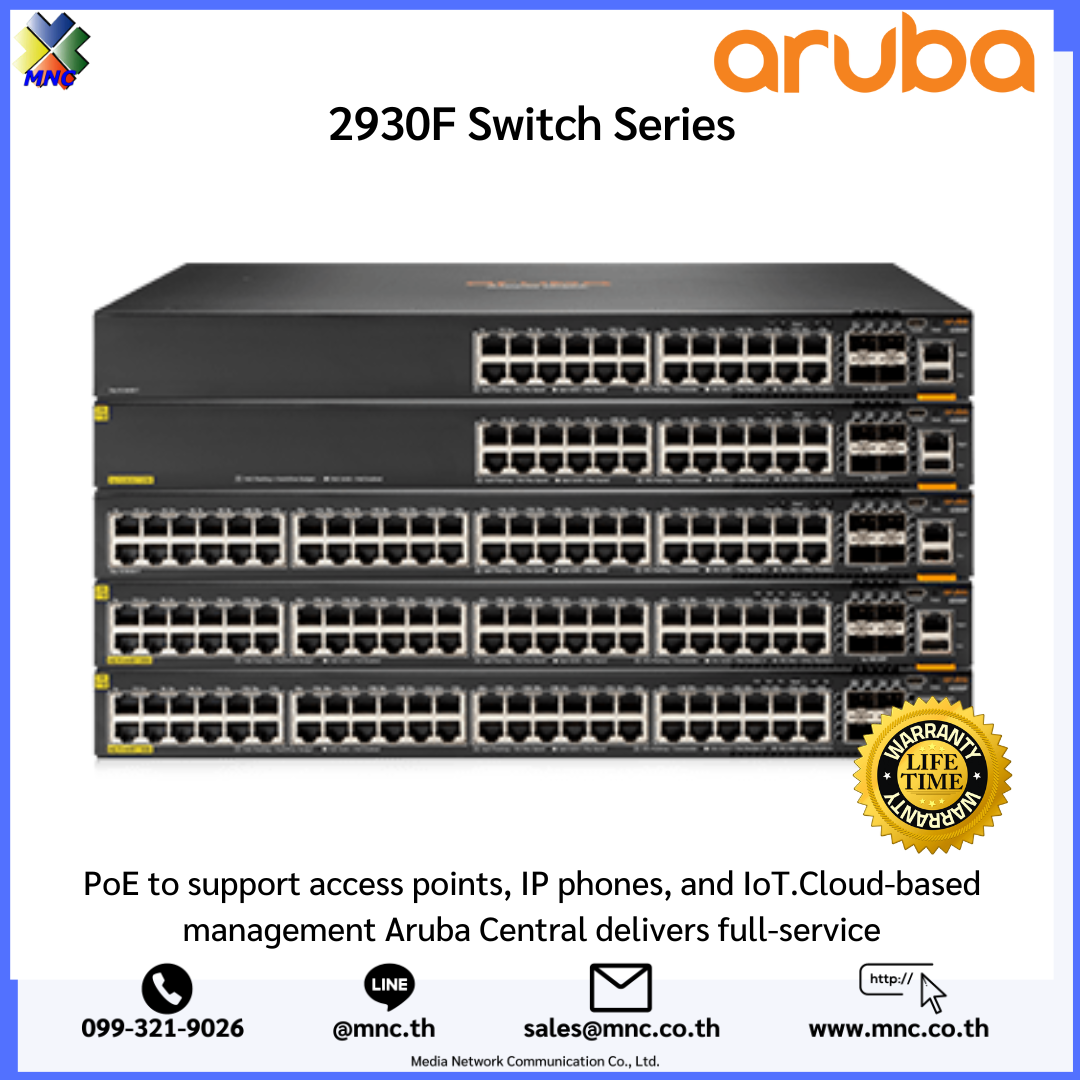

HPE Aruba Networking 2930F Switch Series
This stackable Layer 3 switch series provides performance and ease of use for enterprises, small and medium-sized businesses, and branch office networks.
Simplicity built-in
This cost-effective, agile switch provides fast, powerful network access to IoT devices, access points, and users. Featuring convenient built-in uplinks and PoE+ power, the 2930F is simple to deploy and manage with advanced security and network management tools.
Security for users and IoT
Aruba Dynamic Segmentation extends Aruba’s foundational, wireless role-based policy capability to Aruba wired switches. That means regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
Unified cloud-based management
HPE Aruba Networking Central delivers full-service AI insights, and security and unified infrastructure management for campus, branch, remote, and data center networks, all from a single pane of glass. It’s network configuration and operations made simple.
Simple deployment
With Zero-Touch Provisioning (ZTP) and support from cloud-based HPE Aruba Networking Central, you can quickly set up remote offices with little or no IT support.
Secure and powerful access
Layer 3 Ethernet switches
Comes with enterprise-grade feature set that includes static and RIP routing, IPv6, ACLs, robust security, and QoS.
Grow quickly and simply
Supports 8-member VSF stacking so you can quickly add users and devices while keeping switch management simple.
Right-size switches
Choose from compact 8-, 12-, 24-, and 48-port Ethernet switches with optional PoE and 10GbE uplinks built-in.
Power over Ethernet
Up to 740W of PoE to support access points, IP phones, and IoT.
Flexible management
Innovative design supports cloud-based and on-premise management, CLI, and easy-to-use Web GUI with the same hardware, eliminating rip and replace of equipment as network management needs grow.
Specifications
- 2930F 24G 4SFP+ Switch (JL253A)
- 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 48G 4SFP+ Switch (JL254A)
- 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 24G PoE+ 4SFP+ Switch (JL255A)
- 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 48G PoE+ 4SFP+ Switch (JL256A)
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 8G PoE+ 2SFP+ Switch (JL258A)
- 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 2 SFP+ 1/10GbE ports; PHY-less
- 2930F 24G 4SFP Switch (JL259A)
- 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP 1GbE ports; PHY-less
- 2930F 48G 4SFP Switch (JL260A)
- 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP 1GbE ports; PHY-less
- 2930F 24G PoE+ 4SFP Switch (JL261A)
- 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP 1GbE ports; PHY-less
- 2930F 48G PoE+ 4SFP Switch (JL262A)
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP 1GbE ports; PHY-less
- 2930F 48G PoE+ 4SFP 740W Switch (JL557A)
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP 1GbE ports; PHY-less
- 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A)
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 48G PoE+ 4SFP+ 740W TAA Switch (JL559A)
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 8G PoE+ 2SFP+ TAA Switch (JL692A)
- 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 2 SFP+ 1/10GbE ports; PHY-less
- 2930F 24G PoE+ 4SFP+ TAA Switch (JL263A)
- 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 48G PoE+ 4SFP+ TAA Switch (JL264A)
- 24 or 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP+ 1/10GbE ports; PHY-less
- 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A)
- 12 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 2 SFP+ 1/10GbE ports; PHY-less
Warranty
- Life Time Carry-in Year warranty by HPE Aruba Thailand (5 ปีหลังเลิกผลิต)
Download
Product Datasheet
