OpenVox T1/E1 Gateway is an open-source Asterisk-based VoIP Gateway solution for operators and call centers. It is a converged media gateway product. This kind of gateway connects a traditional telephone system to IP networks and integrates VoIP PBX with the ISDN seamlessly. With a user-friendly GUI, customers may easily setup their customized Gateway. Also, secondary development can be completed through AMI (Asterisk Management Interface).

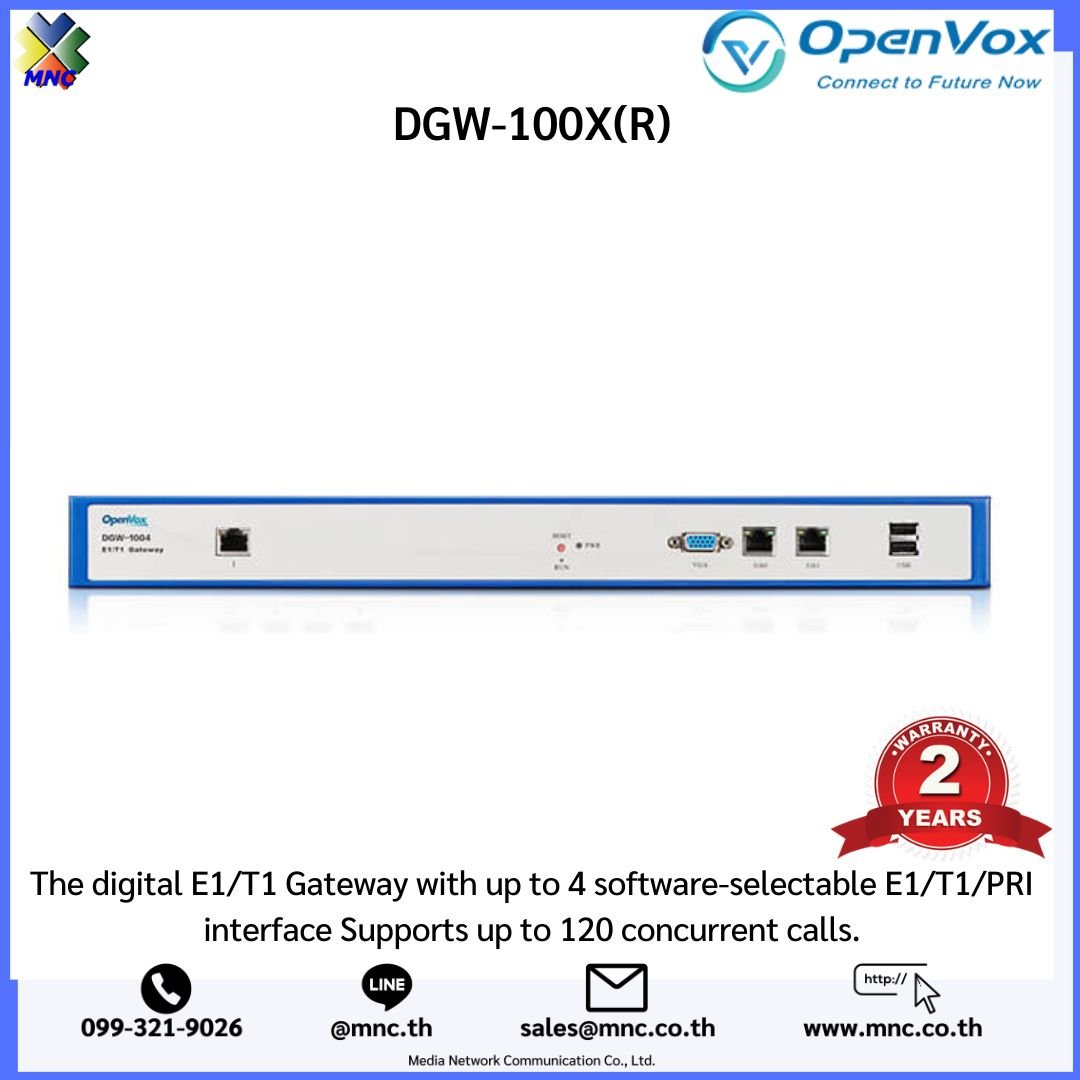

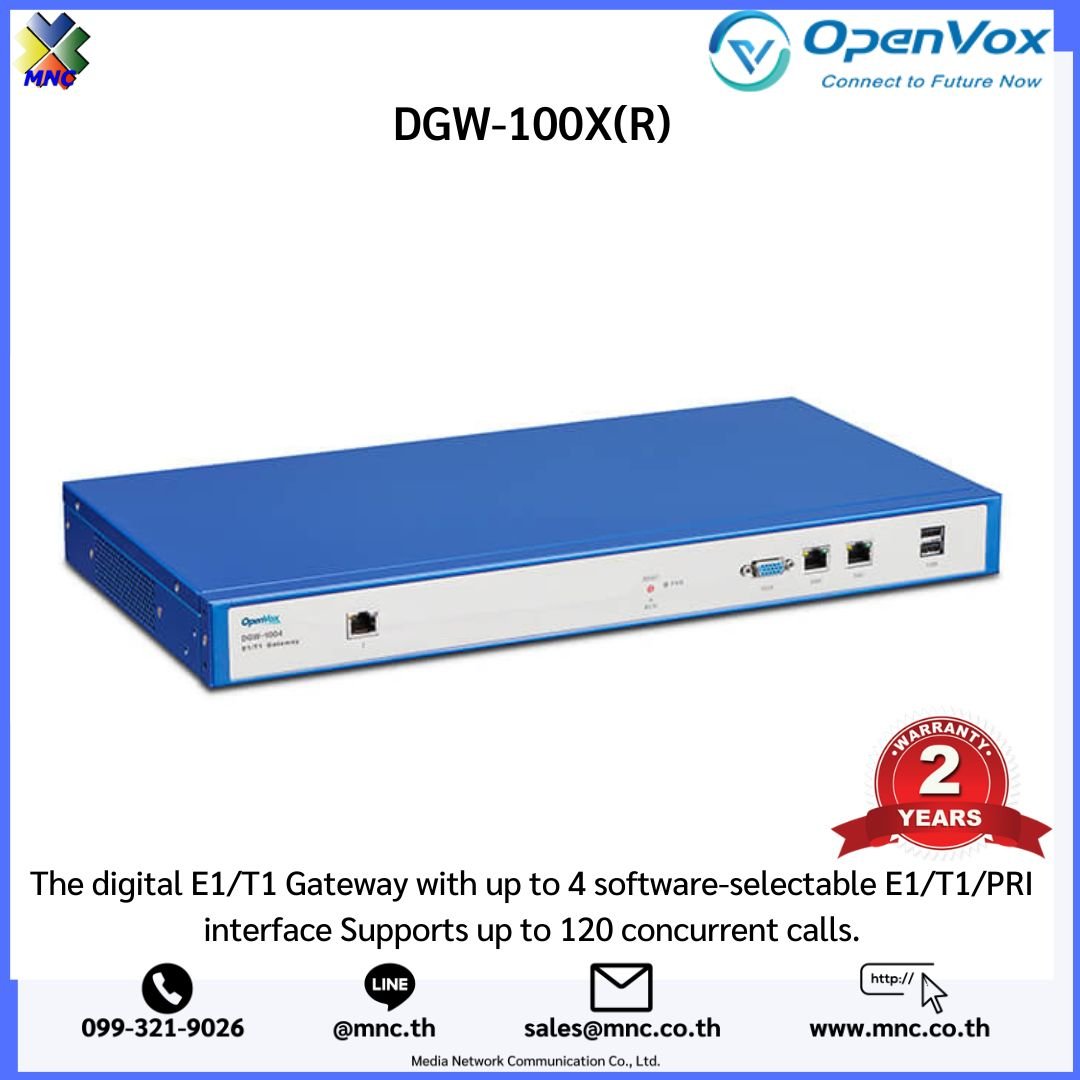

The DGW-100X(R) digital VoIP gateway supports 1/2/4 software-selectable T1/E1/PRI interface and supports up to 30/60/120 concurrent calls. The “R” means that the device supports a redundant power supply.
Target Applications
- Connect legacy PBX systems to low-cost VoIP services
- Connect legacy PBX systems to remote sites over private VoIP links
- Connect IP PBX systems to legacy TDM services
- The phased transition from legacy PBX to IP PBX
- Connect virtualized systems to legacy TDM services
- Transcoding by connecting systems using varying codecs
- Lync connectivity to SIP or legacy TDM providers and SIP or Legacy PBX
Technical Specifications
- 1/2/4 T1/E1 RJ-48
- 2 10/100/1000M Ethernet ports
- 2 USB 2.0 ports
- DGW-100XR with redundant power supply
- DGW-100X with a single power supply
- Maximum Power Consumption: 20W
- Power supply specification: 100-240V/AC
- Operation humidity: 5%~95% non-condensing
- Operating temperature: 0℃~70℃
- Storage temperature: -40℃~85℃
System Features
- Available in 1/2/4 port T1/E1, energy efficiency concurrent processing, up to 120
- Signalling: PRI/R2/SS7
- Support up to 24 countries’ standard R2 signalling
- Support new R2 variant
- Simple and convenient configuration via Web GUI
- Codecs support: G.711A, G.711U, G.729A, G.723.1, G.722, GSM
- Support protocols：SIP、IAX、TCP、UDP、RTP、SSH、HTTP、HTTPS
- Support NTP time synchronization and client time synchronization
- Support SSH access for background management, Asterisk CLI command operation
- Open API interface (AMI)
- Support ports group management
- Support custom dialplans
- Echo Cancellation (Octasic® DSP)
- Firmware update by HTTP
- Support call statistics
- Support TR069
- Support auto-provision
- Support channel status shows dynamically
- Support backup/upload configuration file
- Multiple detailed log output
- Support Chinese language
- Automatically reboot
- Compatibility with all kinds of SIP servers, such as Asterisk, Elastix, Freeswitch and other IPPBX platforms
- Available for OEM
- 3-month “No Question Asked” Return Policy, and Two-year Warranty
SIP Features
- Support add, modify & delete SIP Accounts
- SIP registration with Domain
- Support multiple SIP registrations： Anonymous, Endpoint registers with this gateway and this gateway registers with the endpoint
- SIP accounts can be registered to multiple servers
- Combine different SIP Trunks into a group
- SIP(RFC3261) compliance
- DTMF: RFC2833, SIP INFO, INBAND
- Support T.38 /Pass-through Fax
Routing
- Flexible routing settings
- Support 512 routing
- Support caller/callee manipulation and filtering
- Trunk group support, Trunk priority management
- Support add, modify & delete routing
- E1/T1 port grouping
- Support Failover
Network Features
- Network type: Static IP and DHCP
- IPv4, UDP/TCP, DHCP, TFTP, SCP
- HTTP/HTTPS/SSH
- Support DDNS
- Support ping & traceroute commands on the web
- Support network capture on the web
