Specification
Network Parameters

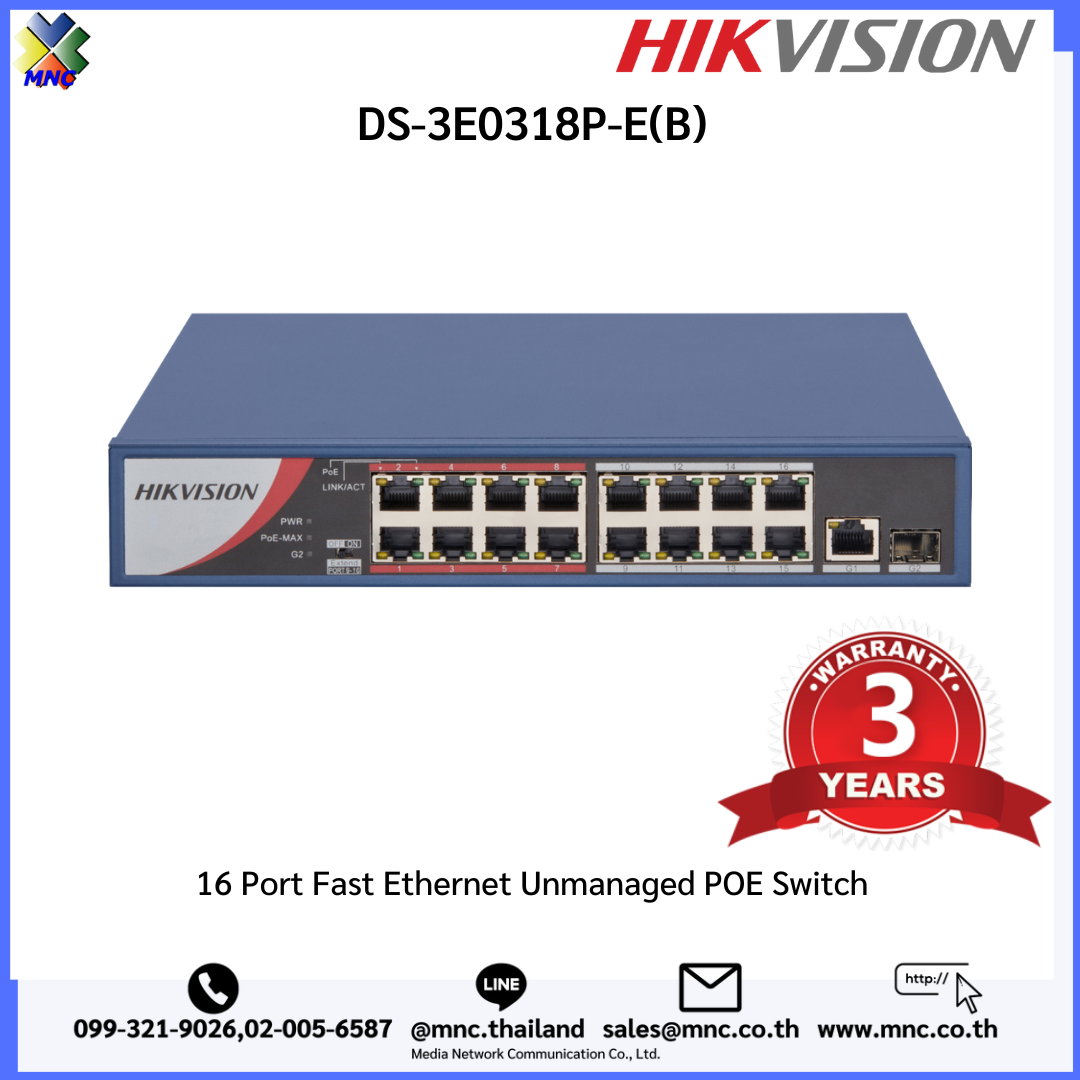

16 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode Standard mode (default); Extend mode
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode Store-and-forward switching
High Priority Ports Ports 1 to 8
MAC Address Table 4 K
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.356 Mpps
Internal Cache 2.75 Mbits
PoE Power Supply
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port Ports 1 to 16
Max. Port Power 30 W
PoE Power Budget 130 W
Dialing Function
Long Range Ports 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
General
Dimensions (W × H × D) 266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
Shell Metal material
Gross Weight 2.58 kg (5.69 lb)
Net Weight 1.80 kg (4.00 lb)
Operating Temperature –10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity 5% to 95% (no condensation)
Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F)
Storage Humidity 5% to 95% (no condensation)
Power Supply 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Power Consumption In Idle 20 W
Max. Power Consumption 150 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
