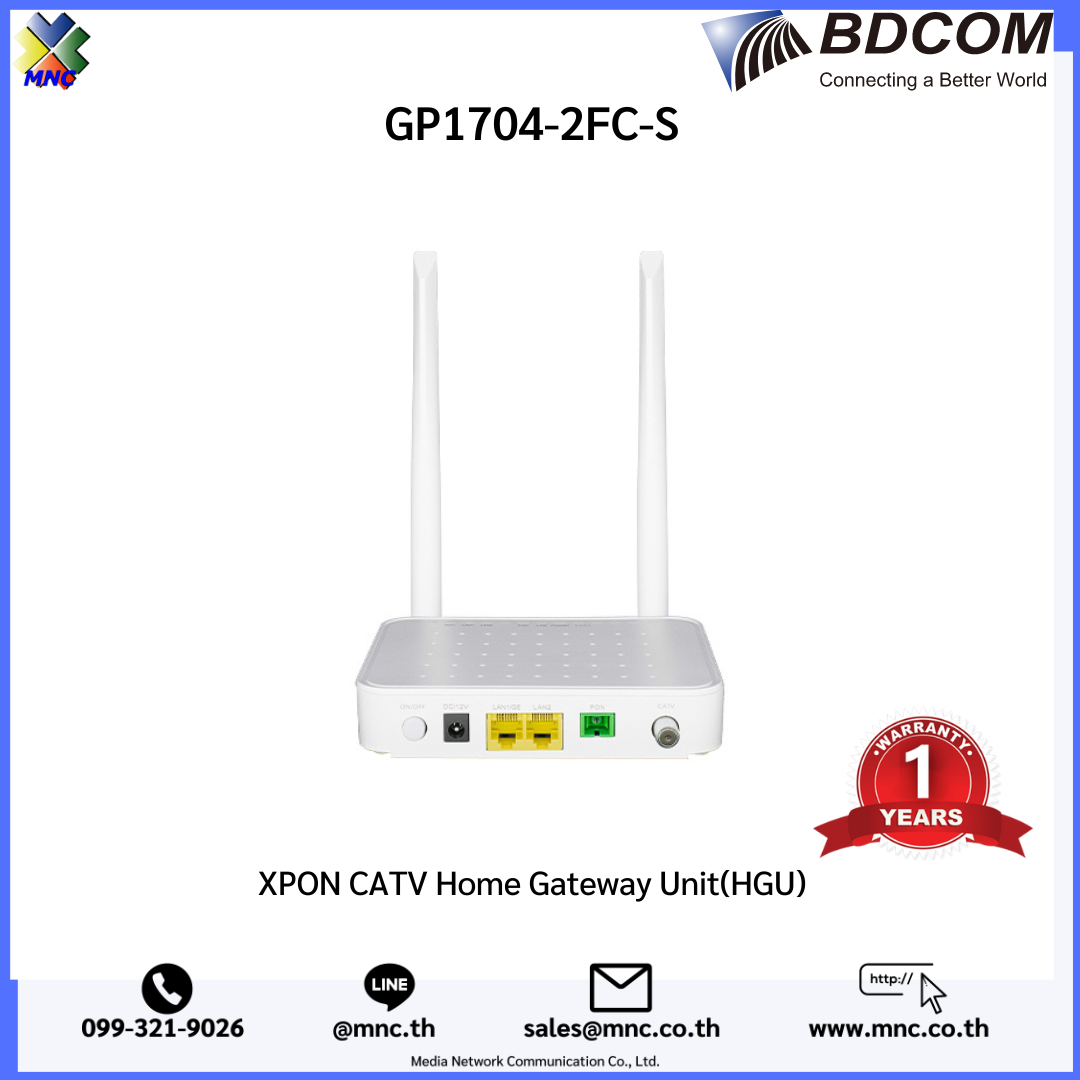

BDCOM GP1704 Series is a smart HGU with integrated wireless, VoIP and CATV function. BDCOM GP1704 Series is orientedfor the integrated multiservice network in telecom operatornetwork.
BDCOM GP1704 series is compatible with EPON and GPON networks complied with the international standard ITU-T G.984/988 and IEEE802.3ah, PRC Communication Industry
Standard GB/T33845-2017 and YD/T 1475-2006 and China Telecom EPON/GPON Technical Requirement CTC.
Technical Parameter
| PON ports | 1 SC/APC |
| UNI ports | 1-Port Gigabit RJ45 1-Port 100M RJ45 1-Port RF(British system) |
| WIFI | 300Mbps |
| Optical power | |
| TX power | 0.5~5dBm |
| RX sensitive | < -28dBm |
| CATV | |
| TX level | ≥70dbuv |
| Receiver AGC Range | -15~-5dbm |
| AC adaptor | Input: 100-240V AC Output: 12V/1A |
| Max. consumption (W) | 10 |
| Chassis | |
| Dimensions (WxDxH mm) | 140 x 105 x 30 |
| Weight(Kg)(empty) | 0.2 |
| Package | |
| Dimensions (WxDxH mm) | 277 x 176 x 38 |
| Weight (Kg) | 0.3 |
| Operating Temperature Humidity | -0℃ -45℃ 10%~85% (non-condensing ) |
| Storage Temperature Humidity | -40℃ -85℃ 5%-95% (non-condensing ) |
| Accessories | Power adaptor |
Features
-
Standards
- ITU-T G.984/G.988,
IEEE802.3ah
GBT33845-2017, YD/T 1475-2006
IEEE 802.1Q, VLAN
ITU-T Y.1291
-
VLAN
- 4K VLAN
Port based VLAN
IEEE 802.1Q VLAN
CTC2.0 defined VLAN
-
IP Service
- DHCP server/client
Routing/Bridging/Hybrid mode
DNS, DDNS
PPPOE
NAT/NAPT
-
QoS
- Backpressure flow control (half-duplex)
IEEE 802.3x flow control (full duplex)
Against Head of Line mechanism
IEEE 802.1p, CoS
Four priority queues on each port
WR, SP and FIFO queue schedule algorithms
Port rate limit
SLA and DBA
-
Management
- Management modes including CLI, HTTP, SNMP, TR069 and TELNET
Software upgrade through TFTP and WEB, OMCI, etc.
Local or server syslog
-
GPON Service
- AES128 algorithm encryption
MAC/Loid/Hybrid authentication
-
Voice Service
- SIP, T.38 FAX
Three-way calling
Call waiting
Hot-line calling
-
Network Security
- MAC address number limit
MAC filter
Port protect
-
Multicast
- IGMP-Snooping
CTC defined dynamic multicast function
MLD-Snooping
Multicast group limitation
Multicast fast-leave
-
Reliability
- Loop detection
Dying-Gasp
TX/RX optical power alarm
-
Wireless
- 802.11 b/g/n
802.11 ac(-22A models)
2×2 MIMO
Multi SSID
SSID encryption
Wireless channel (configurable)
Warranty
- 1 Year warranty
Download
Product Datasheet
