คำอธิบาย

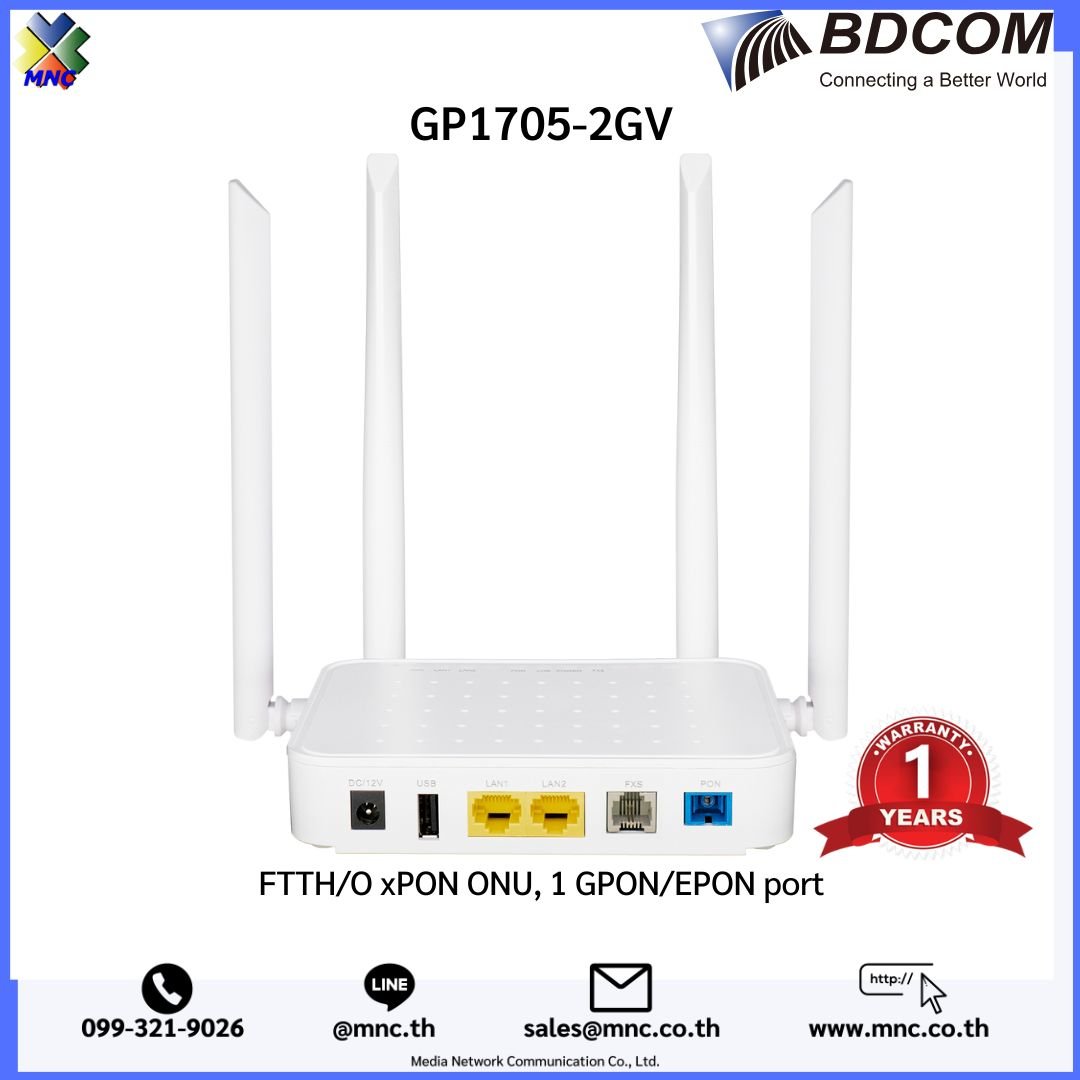

GP1705-2G xPON FTTH Home Gateway Unit(HGU)
BDCOM GP1705-2G is a smart HGU with integrated wireless, VoIP and CATV function. BDCOM GP1705-2G is oriented for the integrated multi-service network in telecom operator network. BDCOM GP1705-2G is compatible with EPON and GPON networks: complied with the international standard ITU-T G.984/988 and IEEE802.3ah, PRC Communication Industry Standard GB/T33845-2017 and YD/T 1475-2006, and China Telecom EPON/GPON Technical Requirement CTC.
Specifications
Standards
· ITU-T G.984/G.988
· IEEE802.3ah
· GBT33845-2017, YD/T 1475-2006
· IEEE 802.1Q, VLAN
· ITU-T Y.1291
VLAN
· 4K VLAN
· Port based VLAN
· IEEE 802.1Q VLAN
· Tag/Transparent/Aggregation/Trunk/Translation mode VLAN
· CTC2.0 defined VLAN
IP Service
· DHCP server/client
· Routing/Bridging/Hybrid mode
· DNS, DDNS
· PPPOE
· NAT/NAPT
QoS
· Backpressure flow control (half-duplex)
· IEEE 802.3x flow control (full duplex)
· Against Head of Line mechanism
· IEEE 802.1p, CoS
· Four priority queues on each port
· WR, SP and FIFO queue schedule algorithms
· Port rate limit
· SLA and DBA
Management
· Management modes including CLI, HTTP, SNMP, TR069 and TELNET
· Software upgrade through TFTP and WEB, OMCI, etc.
· Local or server syslog xPON Service
· AES128 algorithm encryption
· MAC/Loid/Hybrid authentication
Network Security
· MAC address number limit
· MAC filter
· Port protect
Multicast
· IGMP-Snooping
· CTC defined dynamic multicast function
· MLD-Snooping
· Multicast group limitation
· Multicast fast-leave
Reliability
· Loop detection
· Dying-Gasp
· TX/RX optical power alarm
Wireless
· 802.11b/g/n/ac
· 2×2 MIMO
· Multi SSID
· SSID encryption
· Wireless channel (configurable)
Warranty
- 1 Year warranty
Download
Product Datasheet
