คำอธิบาย
Specification
| HARDWARE FEATURES | |
|---|---|

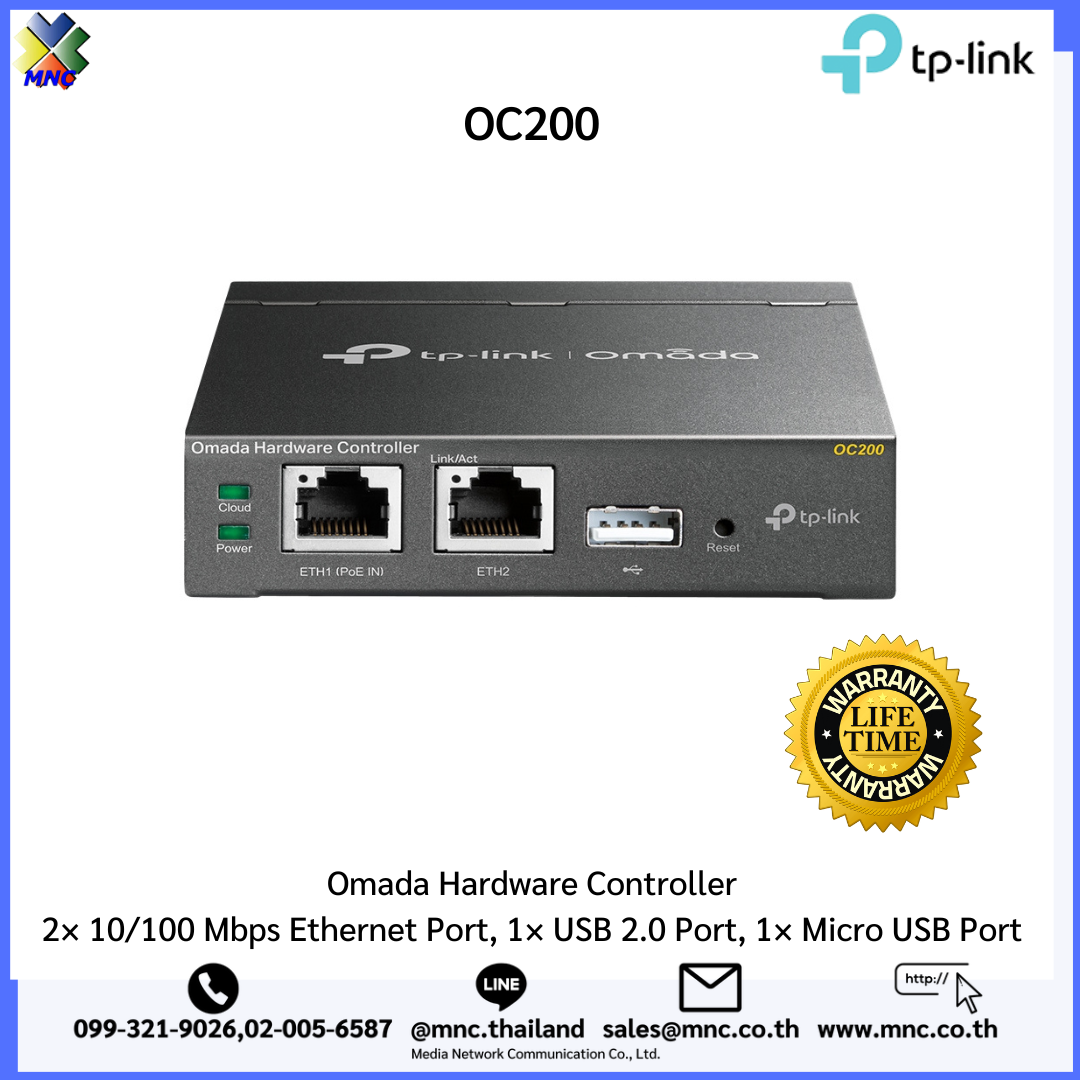

| Interface | • 2× 10/100 Mbps Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A） |
| Dimensions | 3.9×3.9×1.0 in (100×98×25 mm) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |

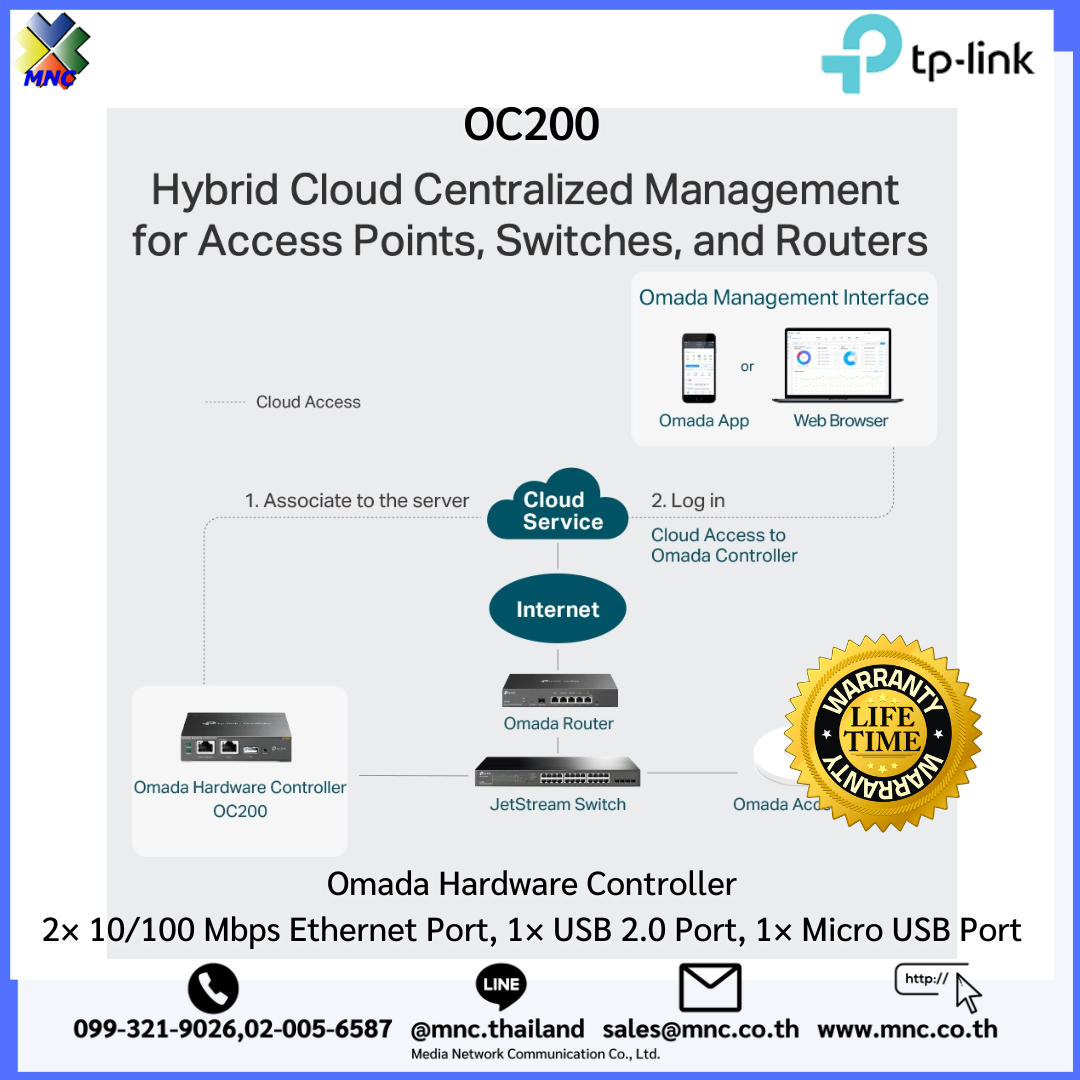

| Centralized Management | • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers • Up to 1,000 Clients Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200 |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

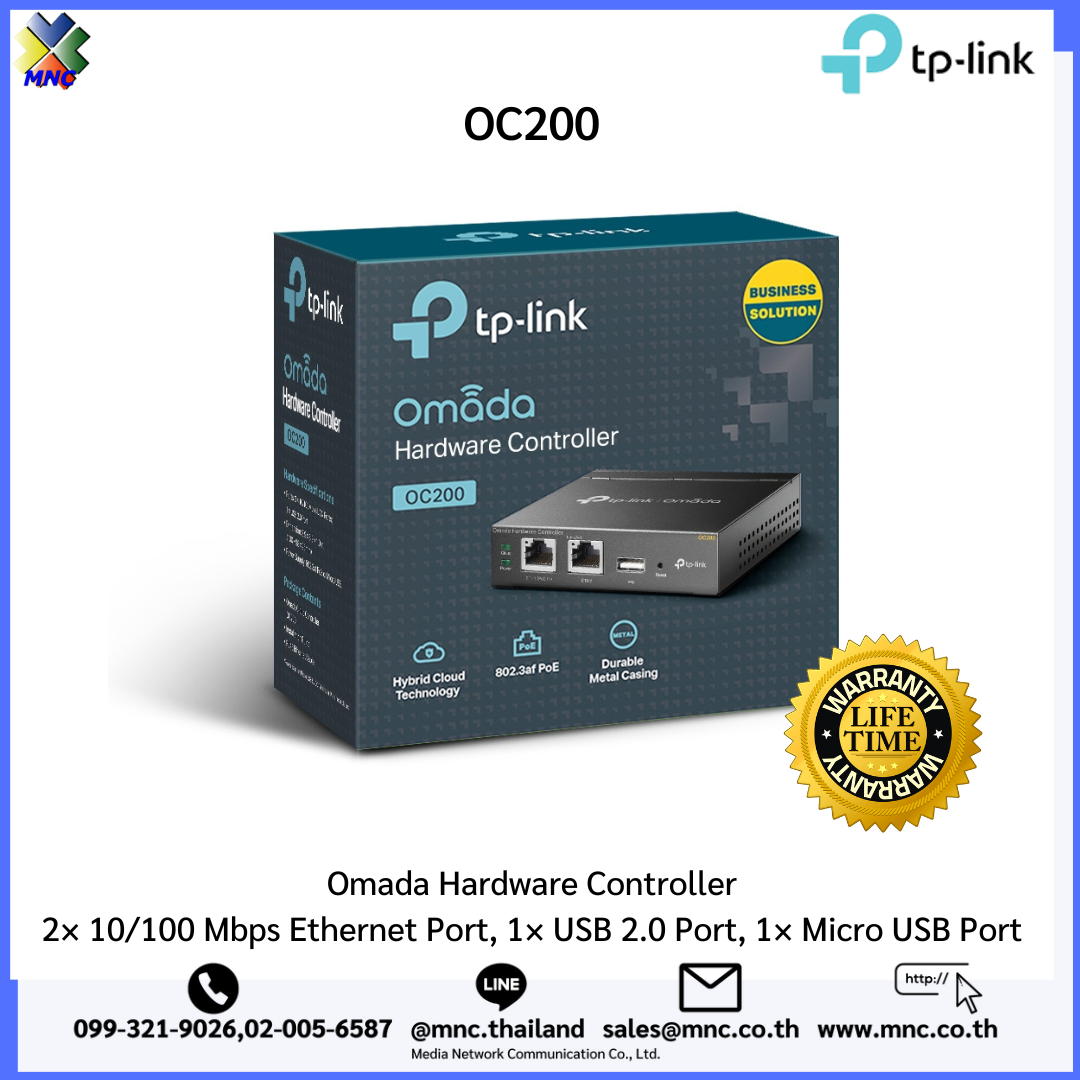

| Package Contents | • Omada Hardware Controller OC200 • Quick Installation Guide • Ethernet Cable |
| System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
