Description

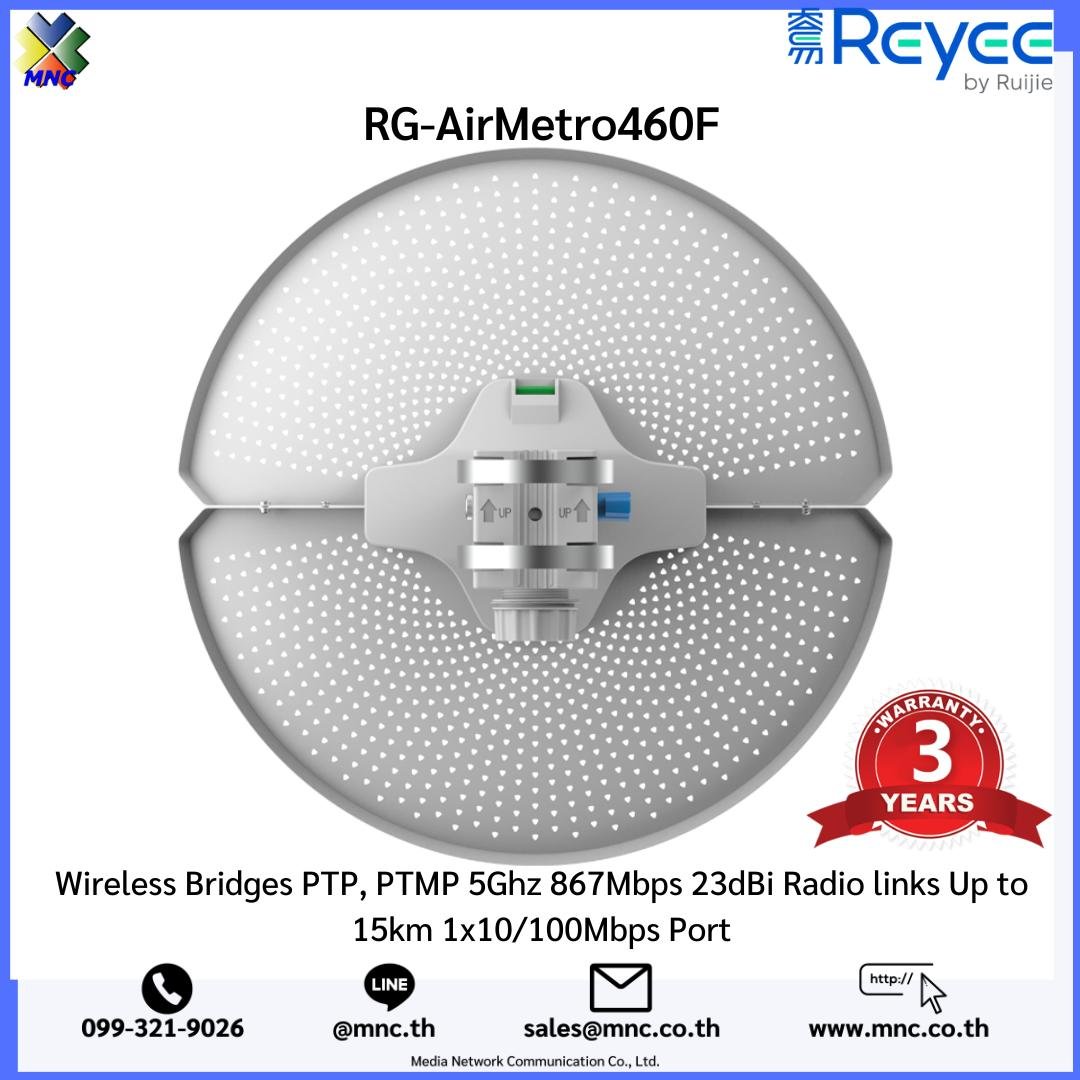

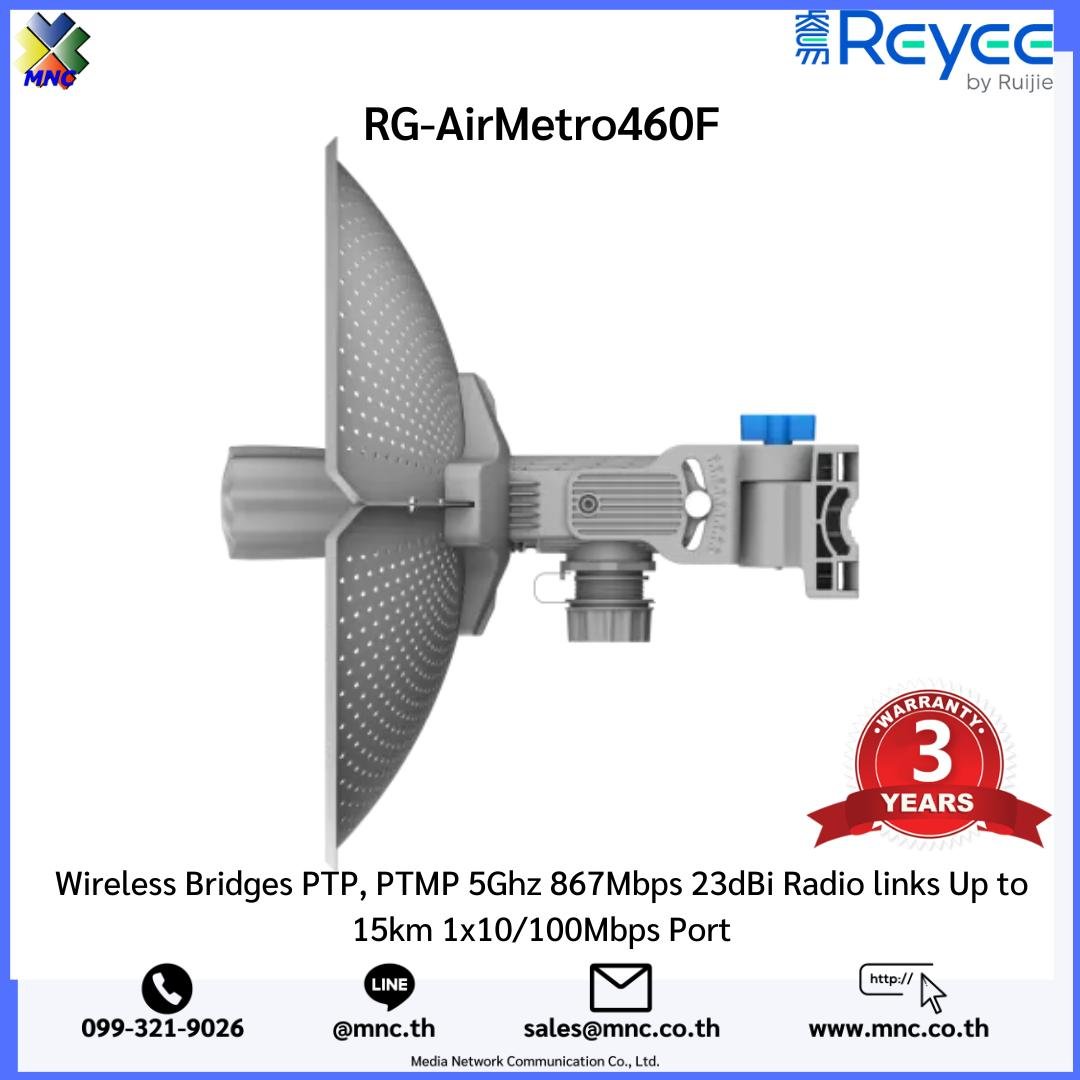

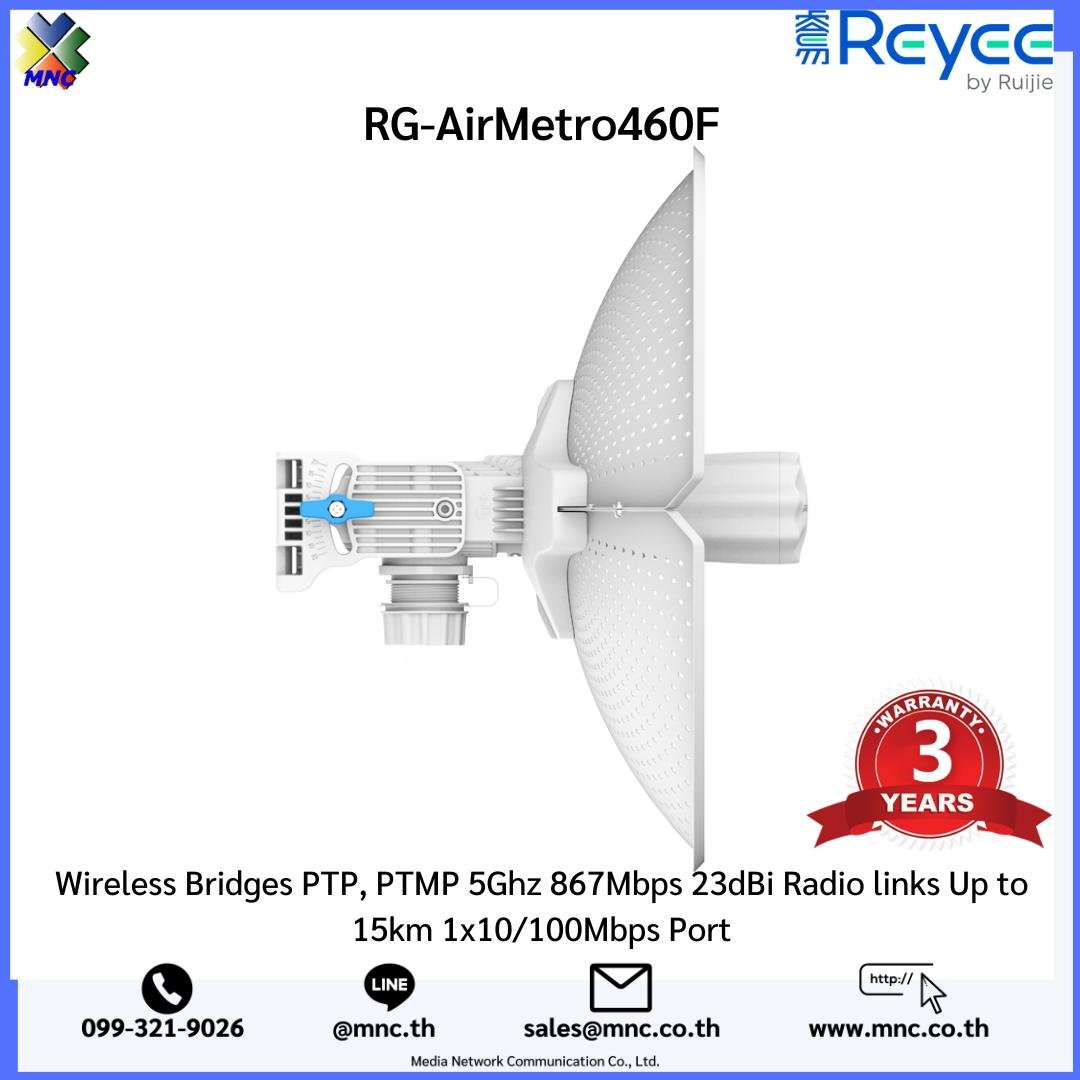

- Device for the high-power wireless bridge at 5 GHZ
- IP65, suitable for outdoor use
- This device is used as a client or as a base station in PTP radio links and as a client in PTMP radio links
- Port RJ45 10/100Mbps(RG-AirMetro460F), 10/100/1000Mbps(RG-AirMetro460G)
- A proprietary protocol allowing connections at 867 Mbps for 5 GHz
- MIMO technology with 23 dBi directional antennas for horizontal coverage: 9°, vertical: 9°- Temperature range of
- 40 to 70 ºC
- Connection up to 15 km
- Passive PoE Power 24v
- Power supply included
Specifications
| Brand | Reyee |
| Wireless standard | Owner |
| Mode of Operation | Point to Point / Point – Multipoint (up to 32 CPE) |
| Port RJ45 | 10/100Mbps |
| Frequencies | 5GHz – 5.85 GHz |
| Distance | Up to 15 km |
| Channel width | 20/40/80Mhz |
| Transmission range | 0 to +26 dBm |
| Integrated antenna | 23 dBi Dual directional |
| TDMA | Fixed Mode / Flexible Mode |
| Management | Configuration via the web interface, One-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan, and Link Optimization |
| Additional functionalities | SSID Masquerading, Spectrum Analysis, Alignment Tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, ARQ |
| Power | 24 VDC non-standard PoE |
| Operating temperature | 0 °C ~ 70 °C (When using a power adapter the maximum operating temperature of the device and power adapter is 60º max) |
| Electrostatic Protection | ±24 kV Contact/Air |
| Surge protection | 6 kV |
| Degree of IP Protection | IP65 |
| Power consumption | < 12 W |
| Dimensions (Diameter x Length incl. mounting kit) | 368.5 x 271 mm |
| Weight | 2.33 Kg |
Download
Product Datasheet
