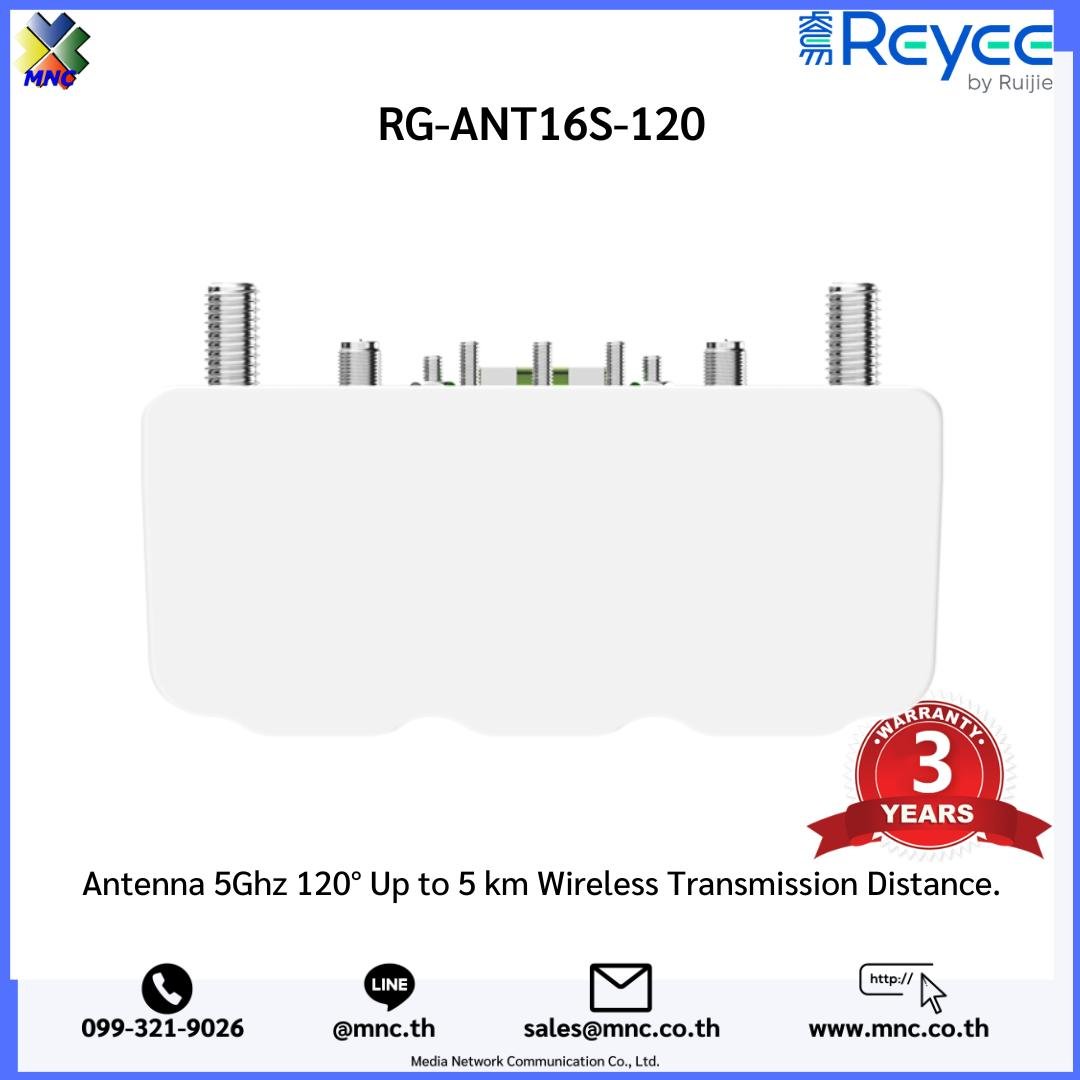

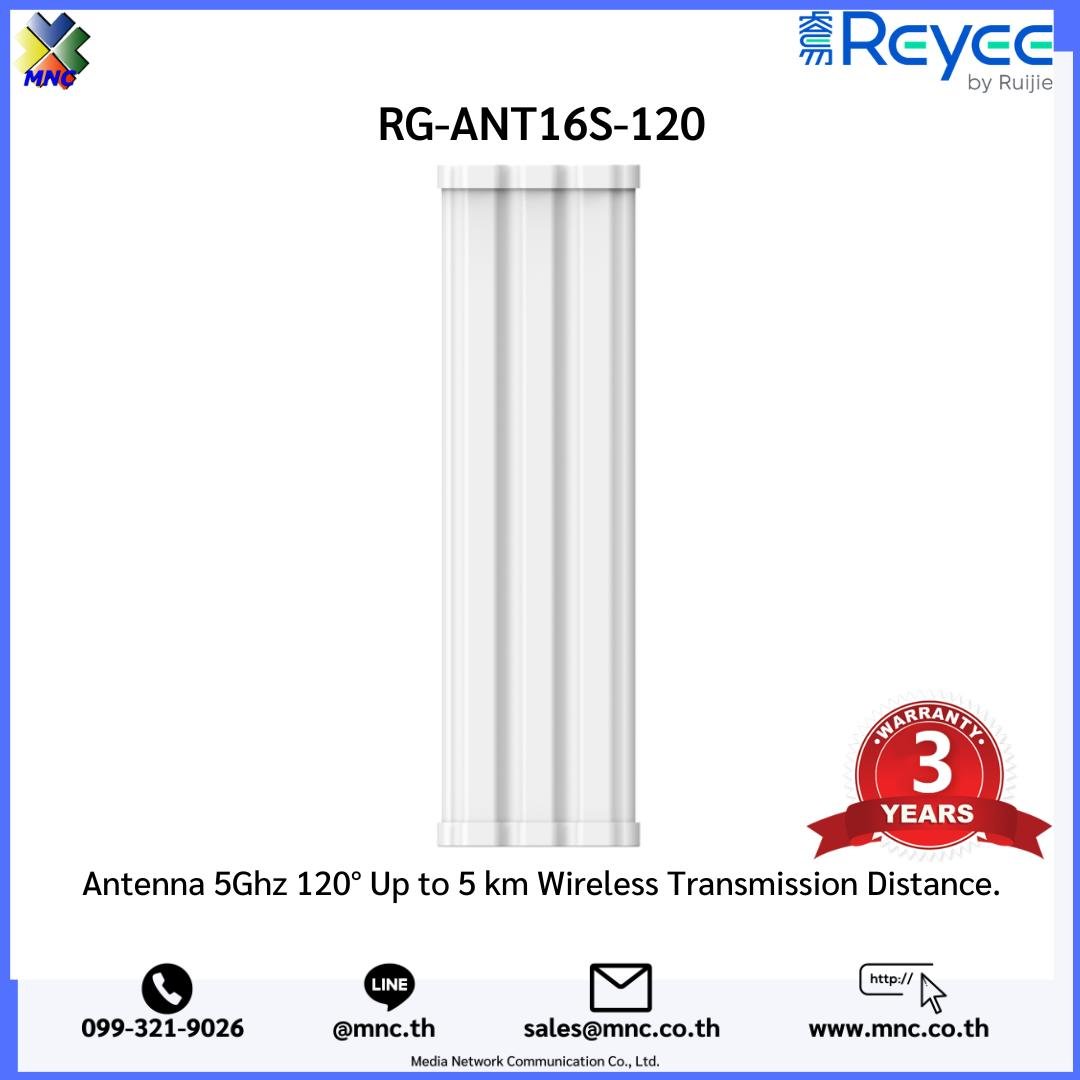

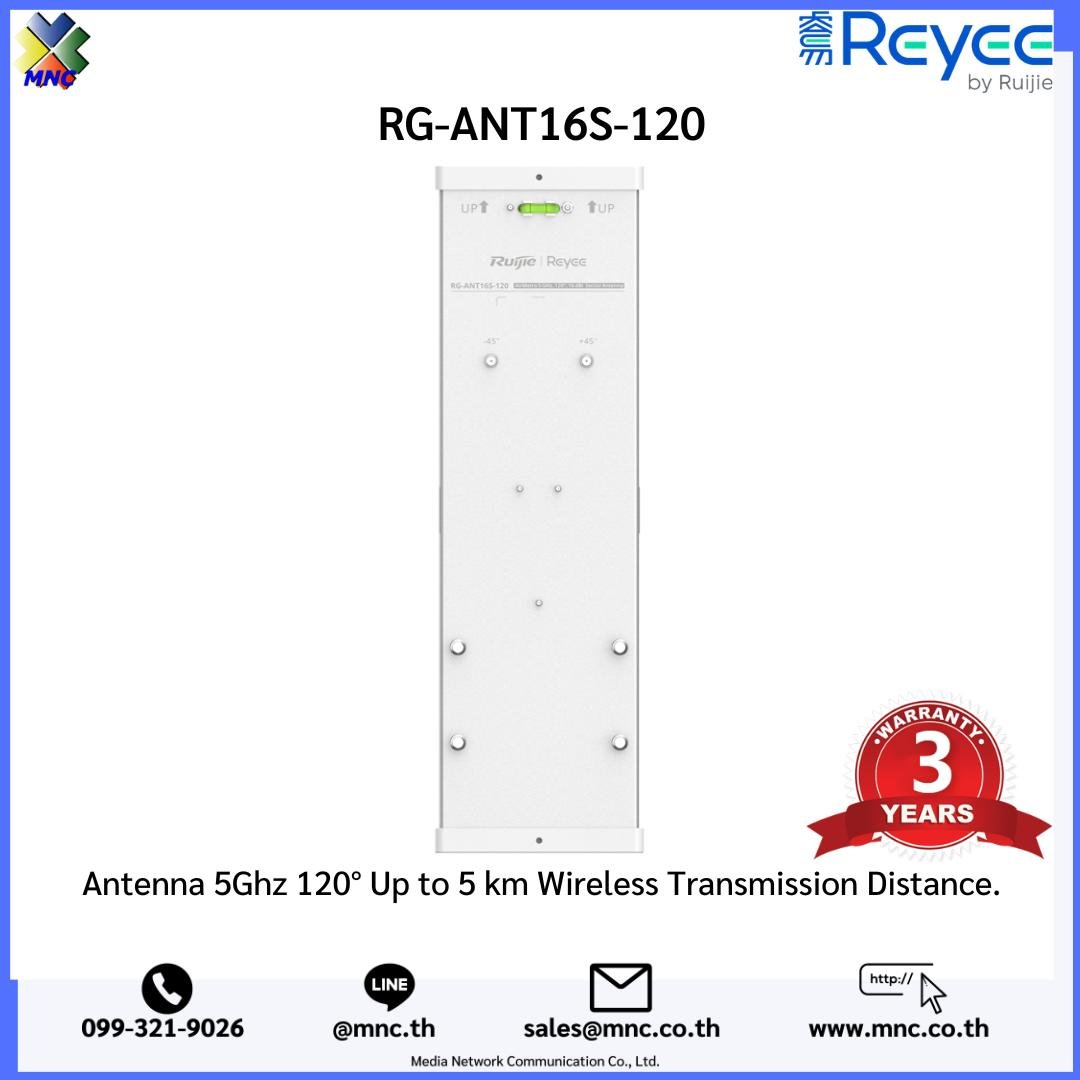

The Ruijie Reyee RG-ANT16S-120 antenna is an external sector antenna for outdoor bridges. This antenna, featuring the 5 GHz 2×2 MIMO technology and two spatial streams, delivers a gain of up to 16 dBi, with a horizontal angle of 120° and a vertical angle of 10°. It is specifically designed for the RG-AirMetro550G-B bridge for PTMP scenarios, covering a range of up to 5 km.
Specifications:
- Frequency Range: 5.15 – 5.85 GHz
- Gain: 16 dBi
- HPOL Beamwidth: 118˚ (6 dB)
- VPOL Beamwidth: 120˚ (6 dB)
- Elevation Beamwidth: 10° (6 dB)
- Electrical Downtilt: 0°
- Max. VSWR: 2.0:1
- Wind Survivability: 220.32 km/h (137 mph)
- Wind Loading: 93 N @ 220.32 km/h (20.9 lbf @137 mph)
- Polarization: ±45°
- Cross-Pol Isolation: 20 dB Min.
- Mounting: Pole-mount
- IP Rating: IP55
- Certification: CE
- MTBF: > 400000 hours
Dimensions:
- Unit Dimensions: 361 × 110 × 48.5mm (without mounting bracket)
- Net weight: 1.9kg
- Package Dimensions (LxWxH): 435*175*155mm
- G. Weight: 2.5kg
Temperature and Humidity Requirements:
- Operating Temperature: -40°C to 80°C (-40°F to 176°F) excluding the power adapter
- Storage temperature: –40°C to 85°C (–40°F to 185°F)
- Operating Humidity: 5% to 95% RH (non-condensing)
- Storage humidity: 5% to 95% RH (non-condensing)
Package Contents:
- 1x RG-ANT16S-120 Antenna (with Mounting Bracket)
- 1x Protective Cover
- 2x RF Cable
- 1x U Bracket
- 1x Pole Bracket
- 1x Pole Clamp
- 6x Hexagon Flange Nut
- 2x Phillips Hexagon Flange Bolt
- 2x Cup Head Square Neck Bolt with Large Head
- 1x Warranty Card
- 1x UserManual
Warranty
- 3 Years Warranty
