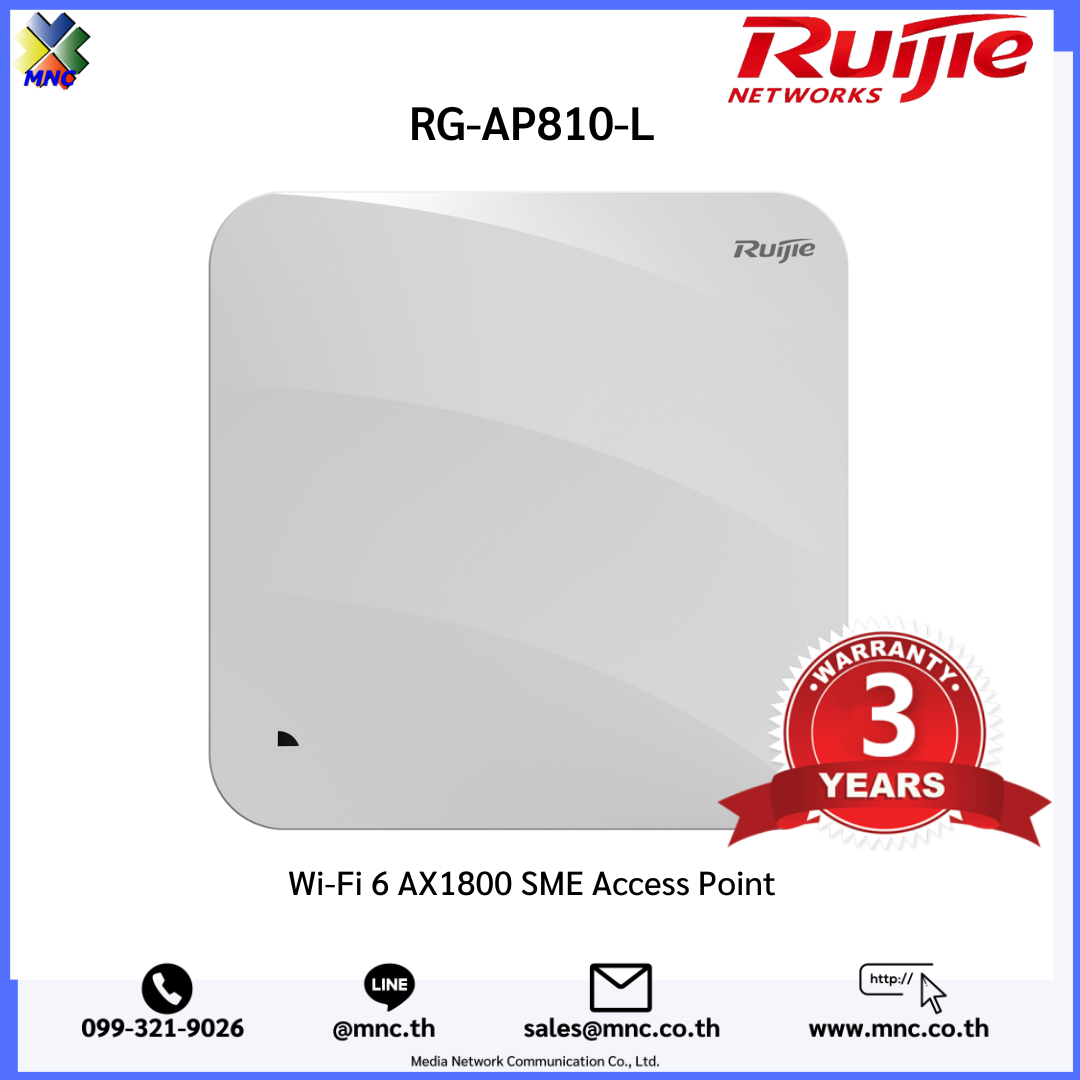

Ruijie RG-AP810-L is a cost-effective entry-level wireless access point with Wi-Fi 6 dual-radio, dual-band design. It not only has the simplicity and flexibility for small and medium-sized enterprises, but the features, functionality, and performance quality to scale up to large-enterprise network deployments. Ruijie RG-AP810-L supports a maximum of 1.775Gbps wireless throughput when 80MHz bandwidth in 5G radio mode is adopted (HE80). It fully complies with Wi-Fi 6 features and guarantees minimal signal interference and a maximum of 512clients.
Highlights:
■Maximum ROI (Lifetime free cloud management & WIS optimization service)
■HE80 Supported for Higher Throughput with Latest Wi-Fi 6 Chipsets
■Hybrid Management (Cloud / Controller / Standalone)
■Automated Radio Optimization by Artificial Intelligence

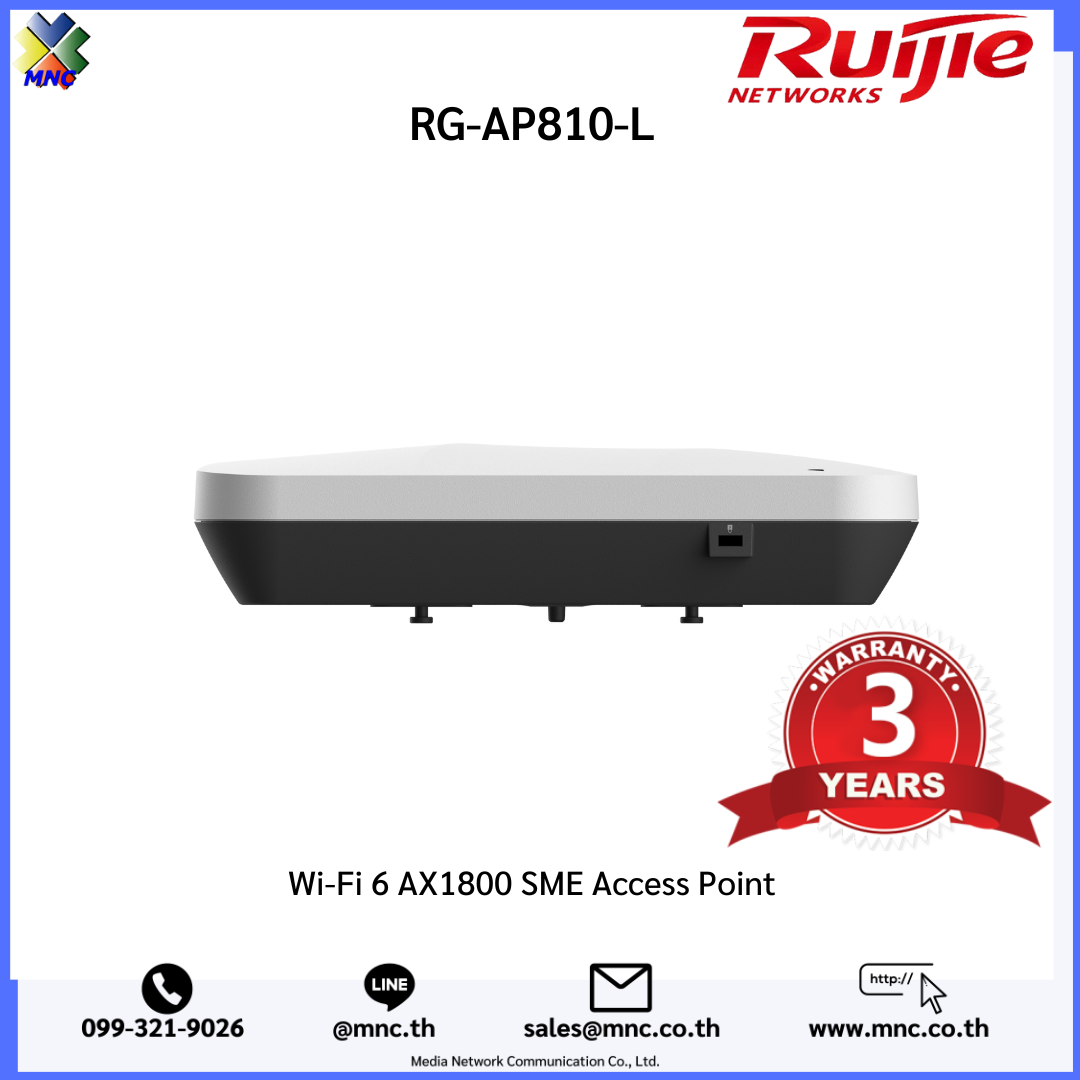

Physical Specifications
| RG-AP810-L | |
|---|---|
| Dimensions
(W × D × H) |
220mm×220mm×49mm |
| Weight | Device：0.6kg
Mounting Kit：0.2kg |
| Installation | Ceiling / Wall |
| Anti-theft Lock | Support |
Radio Specifications
| RG-AP810-L | |
|---|---|
| Radio | Dual-radio dual-band:
Radio1：2.4GHz 11ax，2×2 MIMO Radio2：5GHz 11ax，2×2 MIMO |
| Operating Band | Radio1:
802.11b/g/n/ax，2.4GHz～2.483GHz，HE40 Radio2： 802.11a/n/ac/ax，5.150GHz～5.350GHz，HE80 802.11a/n/ac，5.470GHz～5.725GHz，5.725GHz～5.850GHz，HE80 Note: vary depending on different countries |
| Max Throughput | Radio1：2.4GHz，0.574Gbps
Radio2：5GHz，1.201Gbps Maximum throughput per AP: 2.4GHz+5GHz，1.775Gbps |
| Antenna Type | Integrated Omnidirectional |
| Antenna Gain | 2.4GHz： 3dBi
5GHz： 3dBi |
| Transmit Power | 20dBm
Note: vary depending on different countries |
| Adjustable Power | 1dBm |
| Modulation | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK，QPSK，16QAM 、64QAM 、256QAM and1024QAM OFDMA |

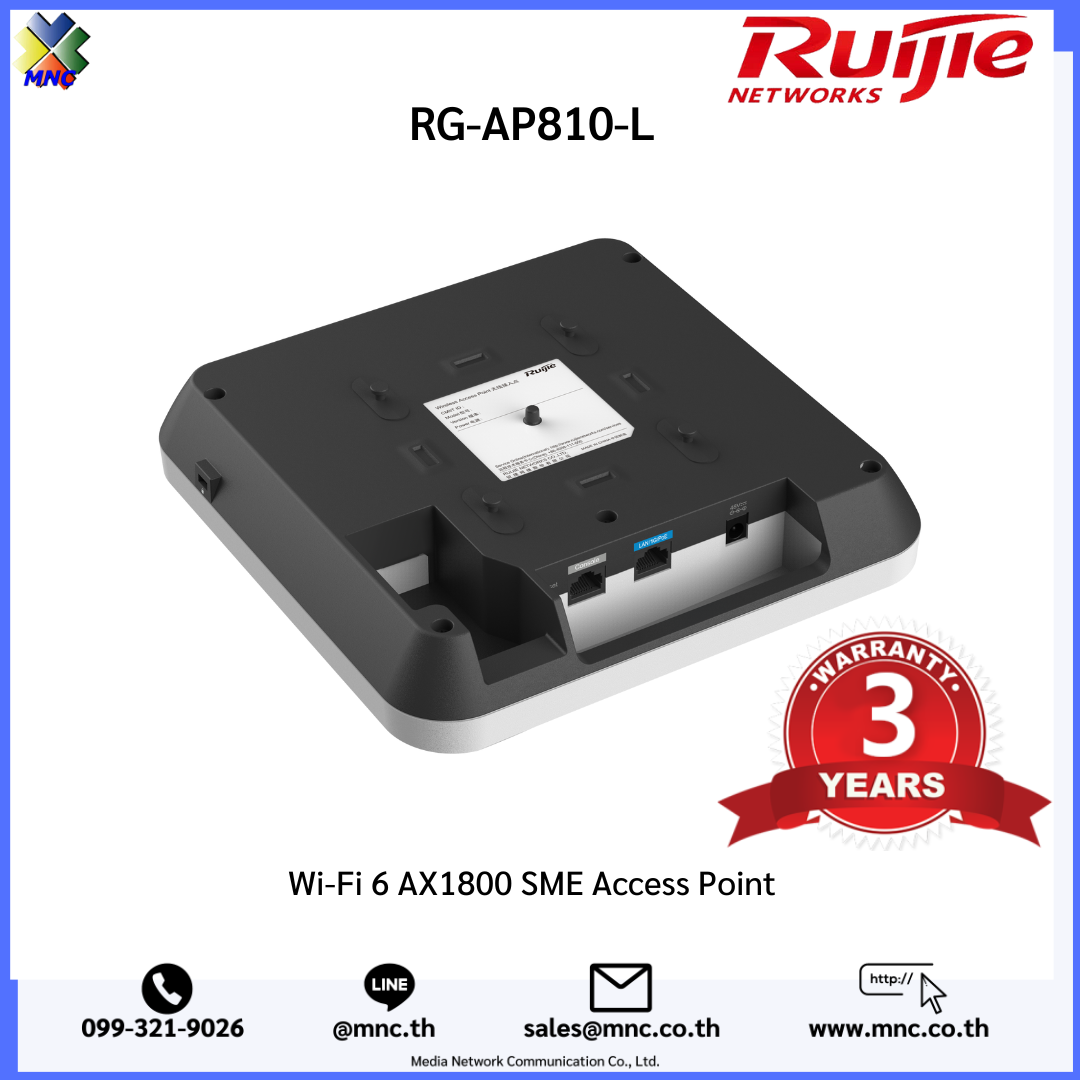

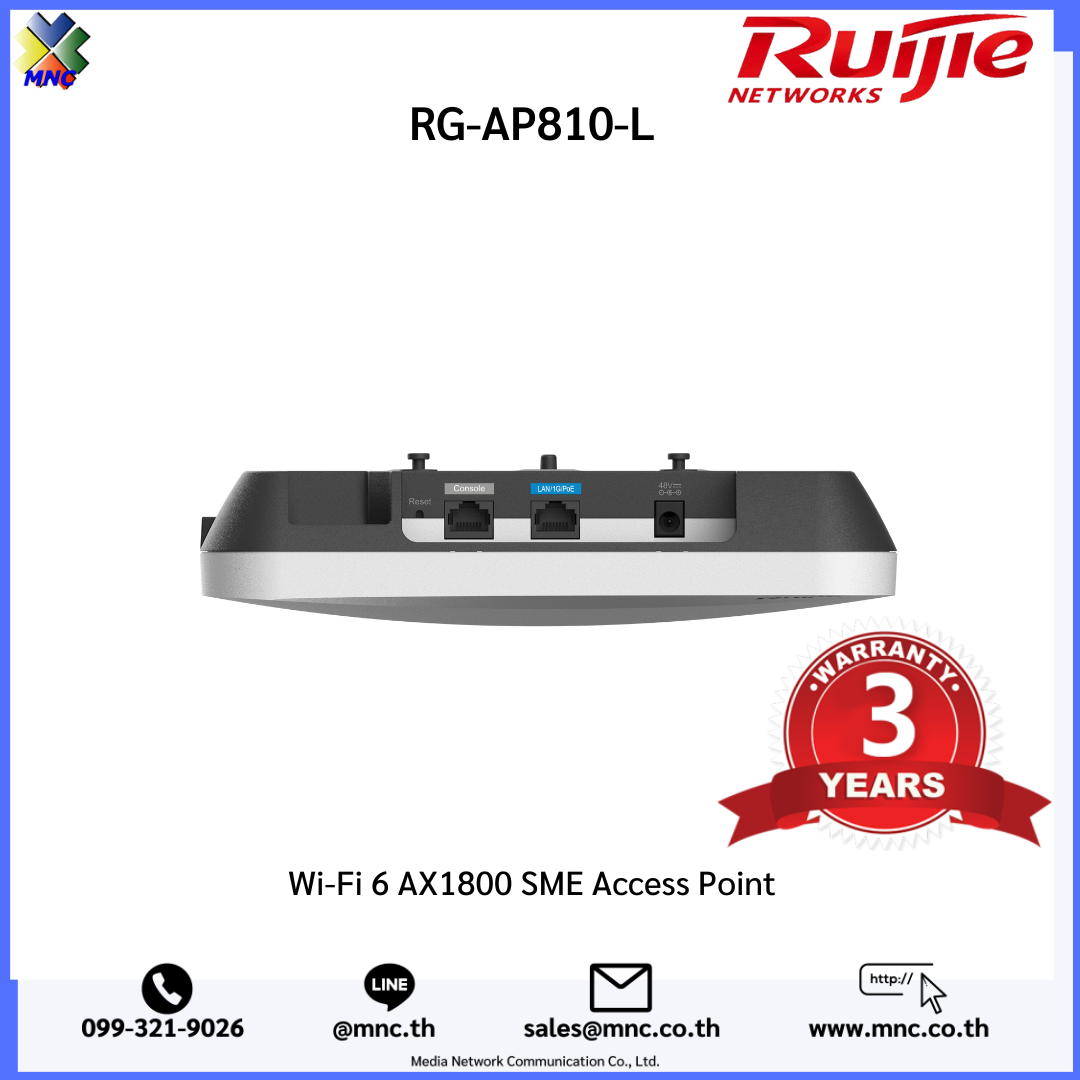

Interfaces
| RG-AP810-L | |
|---|---|
| Interfaces | 1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af)
Full Spectrum Operation in IEEE 802.3af Mode |
| Bluetooth | BT 5.1 |
| Management Port |
1 RJ45 Console Port |
| LED Indicator | 1 LED Indicator |
| Reset Button | Support |
Power
| RG-AP810-L | |
| Power Supply | Local Power Supply (DC 48V/0.6A)
Note: DC power adapters should be purchased separately from third-party vendors if needed. PoE（IEEE 802.3af Standard）- Full Spectrum Operation |
| Power Consumption | 12.95W |
Environment
| RG-AP810-L | |
|---|---|
| Temperature | Operating Temperature: -10°C～50°C Storage Temperature: -40°C～70°C |
| Humidity | Operating Humidity: 5%~95% (non-condensing)
Storage Temperature: 5%~95% (non-condensing) |
| IP Rating | IP41 |
| Safety Standard | GB 4943.1-2011，IEC 62368-1 |
| EMC Standard | EN 300386,GB/T 19286-2015,GB/T 17618-2015 |
Software Specifications
| RG-AP810-L | |
|---|---|
| WLAN | Maximum Clients: 512
Recommended Client: 120 SSID Hiding: Support 5G Priority (Band Steering): Support Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID: Support Remote Intelligent Perception Technology (RIPT): Support Intelligent Device Recognition Technology: Support Intelligent Load Balancing Based on the Number of Users or Traffic: Support STA Limit Control: SSID/Radio based Bandwidth Control: STA/SSID/AP-based |
| Security | Support PSK and Web authentication
Data Encryption: WPA（TKIP）、WPA-PSK、WPA2（AES）、WPA3、WEP（64/128bits） PPSK authentication: Support 802.1X authentication: Support PEAP authentication: Support Data Frame Filtering: Allow list, Static/Dynamic Block list User Isolation: Support Rogue AP Detection and Countermeasure: Support Dynamic ACL Assignment: Support RADIUS: Support CPU Protection Policy (CPP) Support Network Foundation Protection Policy (NFPP): Support |
| IP | IPv4: Support Static and DHCP IP Address
Support Multicast to Unicast Conversion DHCP Service: Support DHCP Snooping, Option 82, Server, Client |
| Operation & Management | Support Wireless LAN Controllers:
Ruijie RG-WS Series Wireless Controller Ruijie Cloud (Public Cloud) Ruijie Private Cloud Management Protocol: Telnet, SSH, TFTP, FTP, Web Wireless Intelligent AI Optimization Service (WIS): Support SNMP: Support V1, V2c, V3 Syslog / Debug: Support FAT/FIT/Cloud Managed Mode Firmware: Support FAT (Standalone) or FIT (WS Controller) or Cloud Managed (Ruijie Public/Private Cloud) Management |
