RG-AP880-I is our next-generation flagship ultra-high-performance Wi-Fi 6 enterprise AP designed for challenging high density indoor scenarios, powered by the 5th gen X-sense smart antenna for 360o zero-dead zone coverage. With the built-in IoT module, enterprise customers can be ready for future IoT expansion to boost the operational efficiency and customer experience.
The Ruijie RG-AP880-I supports concurrent dual-band dual-radio (4×4:4 in 2.4GHz, 8×8:8 in 5GHz), up to 12 total spatial streams and a maximum of 5.95Gbps wireless throughput. Taking the advantage of Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, the RG-AP880-I guarantees minimal signal interference and a maximum of 1024 client connections.
Additionally, RG-AP880-I provide four Ethernet ports with totally 22G wired access capacity, including two 10G Ethernet Uplink Port (1 Copper and 1 Fiber), one Gigabit Uplink, and one LAN port for external IoT sensor connection with PoE out (passive) feature. The RG-AP880-I support dual-port power supply redundancy design for high availability, guarantee for zero service impact even any uplink port failure.
Upon the uprising challenges of management efficiency and wireless security, all Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of the below wireless controller options depending on the functionality and capacity:
Hybrid Cloud: RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) – targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc.
Private Cloud: RG-MACC Software Controller – targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices.
Public Cloud: Ruijie Cloud – Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips.

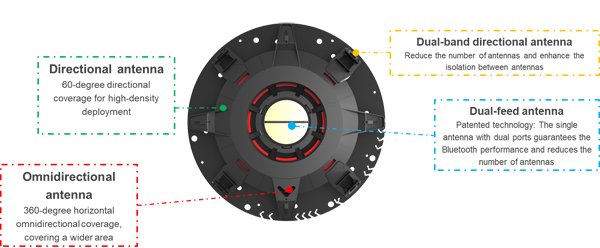

New 5th gen X-Sense Smart Antenna
Powered by Ruijie patent smart antenna technology – the 5th gen X-Sense, the RG-AP880-I built-in with 18 integrated antenna arrays, the AP supports intelligent algorithm switching to realize automatic switching between ordinary 360° zero-dead-zone coverage and high-density deployment scenario.
Stacked ultra-high-density antenna design: Built-in with 18 integrated antenna arrays, guarantees 360°coverage
High-reliability antenna design: All-in-one Snap-on design for improved antenna reliability

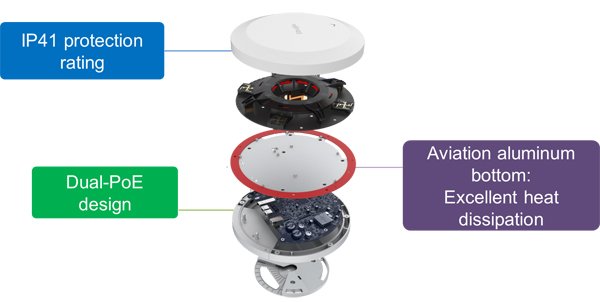

Industrial-grade Reliability Design
Ruijie RG-AP880-I is designed for scenarios demand for 24×7 operation with high utilization usage. To maximize the equipment stability, the RG-AP880-I upper and lower metal interlayer design of the AP effectively solves the problem of heat dissipation and electromagnetic interference, and ensures product reliability. Plus the IP41 protection rating and Dual-PoE design, the RG-AP880-I is highly recommended for any extreme working environments.
Multi-level Reliability Design
Hardware specifications
|
Model |
RG-AP880-I | |
|
Hardware specifications |
||
|
Radio |
Dual-radio dual-band：
Radio 1: 2.4G 11ax: 4×4 MIMO Radio 2: 5G 11ax: 8×8 MIMO |
|
|
Protocol |
Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac | |
|
Operating Bands |
802.11b/g/n/ax ：2.4G ~ 2.483GHz
802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries) |
|
|
Spatial Streams |
Up to 12: 4×4:4 in 2.4GHz , 8×8:8 in 5GHz | |
|
Max Throughput |
Maximum throughput of 2.4G: 1.15Gbps
Maximum throughput of 5G: 4.8Gbps Maximum throughput per AP: 5.95Gbps |
|
|
Modulation |
OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) |
|
|
Receiver Sensitivity |
11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）
11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） 11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11） |
|
|
Antenna |
Integrated antenna design (5th gen X-Sense patent smart antenna) | |
|
Antenna Gain |
2.4G: 3dBi 5G: 3dBi |
|
|
Service Ports |
1 100M/1000M/2.5G/5G/10G Base-T (PoE In), 1 10G SFP+, 1 10/100/1000M Base-T ports (PoE In), 1 10/100/1000M Base-T ports (LAN/IoT Expansion) | |
|
Management Port |
1 console port | |
|
USB |
1 USB 2.0 port | |
|
IoT Capability |
BLE |
|
|
Reset Button |
Support | |
|
Anti-theft Lock |
Support | |
|
LED Indicator |
1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.) | |
|
Transmit Power |
≤100mw（20dBm） (vary depending on different countries) |
|
|
Adjustable Power |
1dBm | |
|
Power Supply |
Local power supply (DC 48V/1A) (DC Power adapters should be purchased from third-party vendors separately if needed) 802.3bt(HPoE) recommended or 802.3at(PoE+) with lower performance. 802.3af(PoE) , device cannot power up |
|
|
Power Consumption |
＜40W | |
| Physical Specifications | ||
|
Temperature |
Operating Temperature: -10°C to 45°C | |
| Storage Temperature: -40°C to 70°C | ||
|
Humidity |
Operating Humidity: 5% to 95% (non-condensing) | |
| Storage Humidity: 5% to 95% (non-condensing) | ||
|
Installation Mode |
Ceiling/wall-mountable | |
|
Dimensions (W x D x H) |
290mm×64mm (Height of the AP only, excluding the mount kit and modelling) | |
|
Weight |
AP 3.05Kg, Mount Kit 0.2Kg | |
|
IP Rating |
IP41 | |
|
MTBF |
250,000 hours | |
|
Certifications and Compliance |
||
|
Safety Standard |
GB4943, EN/IEC 60950-1 | |
|
EMC Standard |
GB9254, EN301 489 | |
|
Health Standard |
EN 62311 | |
|
Radio Standard |
SRRC, EN300 328, EN301 893 |
|
|
Software Specifications |
||
| WLAN | Maximum clients per AP | 1024 |
| Recommended clients per AP | 64 | |
| BSSID capacity | Up to 32 | |
| SSID hiding | Support | |
| 5G Priority (Band Steering) | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Intelligent device recognition technology | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based bandwidth control | |
| Data encryption | WPA（TKIP）, WPA-PSK, WPA2（AES）, WEP（64/128 bits） | |
| PSK and web authentication | Support | |
| PPSK authentication (For Employee) | Support (require wireless controller) | |
| 802.1x authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| IP |
IPv4 and IPv6 address |
Support |
|
Multicast routing |
Multicast to unicast conversion |
|
|
DHCP service |
DHCP Snooping, Option 82, Server, Client |
|
|
Management and Maintenance |
Supported wireless LAN controllers |
Ruijie WS Series Wireless Controller
Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) |
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
Warranty
- 3 Years Warranty
