RG-APF1250-S, Reyee 1200M Wi-Fi5 dual-band wall-mounted optical AP (ONU)

คำอธิบาย

Reyee RG-APF1250-S 1200M Wi-Fi5 dual-band wall-mounted optical AP (ONU)

Passive all-fiber LAN is a new LAN networking method (P2MP). Compared with the traditional Ethernet solution (P2P), it has fewer maintenance nodes, a more streamlined layer 2 network structure, and smoother upgrade transition capabilities.

Ruijie Ruiyi has developed a new set of Ethernet optical splitting products (referred to as “Yiguang solution”). The new solution can support both passive all-fiber LAN (P2MP) and traditional Ethernet network (P2P) networking methods. Engineering companies do not need to After re-learning, you can complete the networking and debugging of the passive all-fiber LAN.

Yiguang’s solution includes optical network convergence switches (OLT), optical APs (ONUs), optical access switches (ONUs), optical splitting optical modules, passive optical splitters and other products. RG-APF1250-S is a multi-service wall-mounted optical AP (ONU) launched by Ruijie Ruiyi for passive all-fiber LAN. RG-APF1250-S is wall-mounted through a bracket. The overall design is simple and beautiful, and it is easy to deploy. The device supports IEEE 802.11a/b/g/n/ac Wave1/ac Wave2 protocols and can work in the 2.4GHz and 5GHz frequency bands at the same time. The whole machine provides an access rate of 1167Mbps, so that performance is no longer a bottleneck.

Thanks to the multi-service integration design of RG-APF1250-S, in the hotel scene, a single in-room optical fiber is used to carry the access needs of multiple services such as wireless network, wired network, guest control, IPTV, and telephone in the guest room. Not only It reduces the usage of traditional network cables and saves a lot of labor wiring costs, providing engineering companies with a more cost-effective overall solution for hotel passive all-fiber LANs.

Features

Multi-business integration makes construction simpler

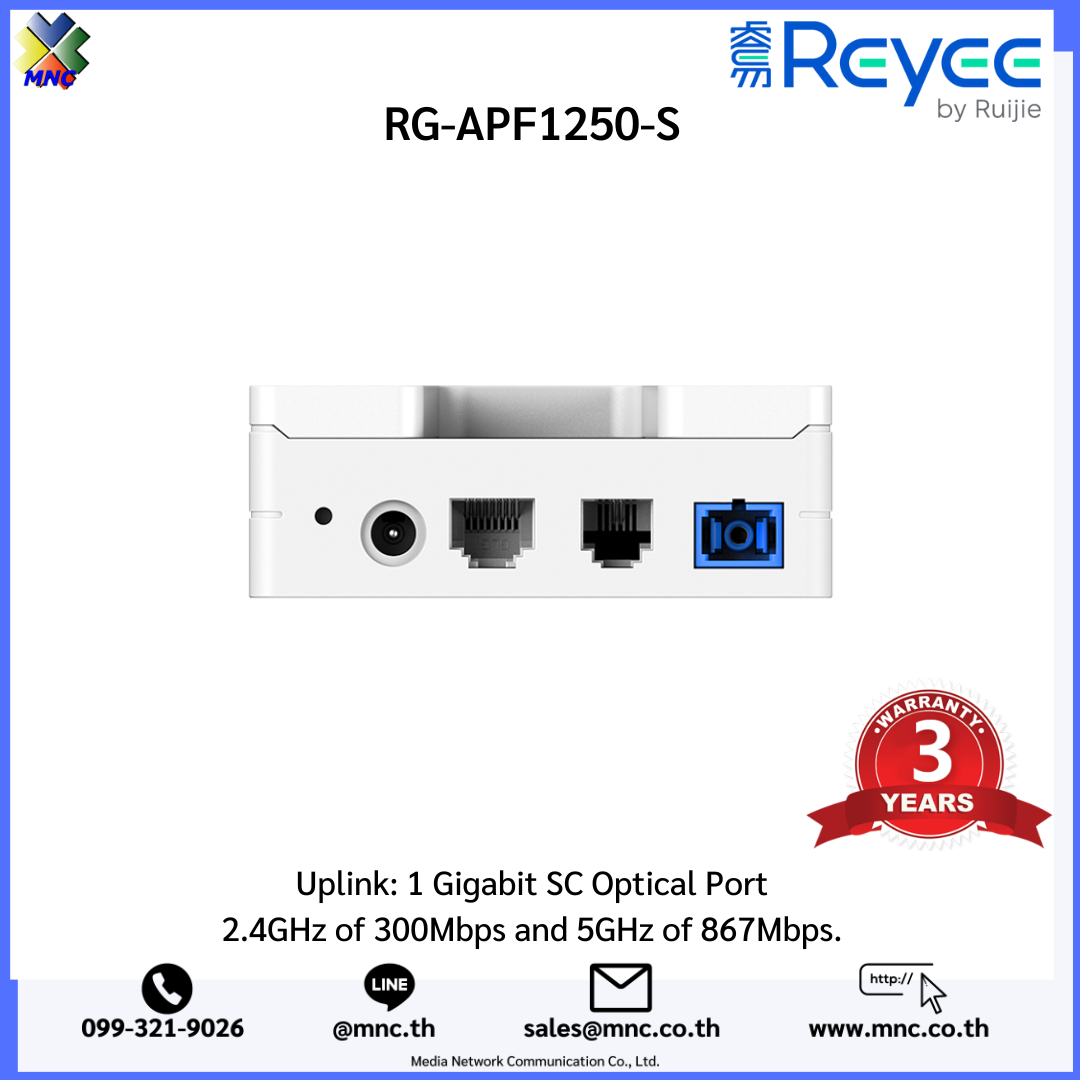

The optical AP (ONU) RG-APF1250-S adopts a multi-service integration design and has 1 Gigabit Ethernet electrical port, 1 RJ11 analog phone port, and 1 Gigabit SC uplink passive optical splitting port, which can be connected through a In-room optical fiber carries the access requirements of five services including wireless network, wired network, guest control, IPTV and telephone in the guest room, saving a lot of wire usage and labor investment.

Two-layer networking architecture makes maintenance easier

Compared with the traditional Ethernet three-layer architecture, the optical AP (ONU) RG-APF1250-S adopts a flat two-layer networking architecture. Through the passive aggregation design, not only the use of a large number of active aggregation switches is reduced, there is no need to build weak current rooms in the corridor, but also a large amount of maintenance work is reduced.

Inheriting the traditional Ethernet configuration method, the debugging and operation of all-optical networks are easier

Optical AP (ONU) RG-APF1250-S inherits the configuration logic of traditional Ethernet and can achieve extremely fast deployment of passive all-fiber LAN in 3 minutes.

Optical AP (ONU) RG-APF1250-S supports remote management through Ruiyi APP and Noker Cloud MACC. You can easily understand the status of the passive all-fiber local area network without going to the site. You can remotely modify parameter configurations and perform remote fault location. and repair.

The optical AP (ONU) RG-APF1250-S also supports local extremely fast intelligent configuration. It can complete an ad hoc network without obtaining an IP. It can also perform unified configuration of the entire network without going to the cloud, and the equipment debugging is simple.

Wireless speed exceeding Gigabit

The device supports 2.4GHz and 5GHz dual-band communication, providing 2.4GHz 300Mbps, 5GHz 867Mbps, and the entire machine has an access rate of up to 1167Mbps. It can provide terminals with a 5GHz frequency band with less interference, wider channels, and faster speeds, allowing them to enjoy a truly refreshing wireless communication experience.

Layer 2 intelligent roaming

Supports Layer 2 intelligent roaming to solve the problem of roaming stickiness, improve roaming signal strength, shorten roaming switching time, and reduce packet loss rate. Based on big data algorithms, it automatically and intelligently optimizes the network to provide users with a smooth and fast network environment.

High strength shell

The outer cover of the equipment is made of high-strength flame-retardant material. The impact strength is 5 times higher than that of common ABS plastic materials, and the tensile and bending strength are increased by 30%. It is not easy to be damaged, and it is more secure to use and maintain.

Super anti-interference ability

Use high-quality antennas to achieve stronger transmit signals and better reception sensitivity. The equipment uses LTCC filters to more effectively filter out various interferences caused by operator base stations, microwave ovens, Bluetooth devices, etc. The wireless signal is purer, the transmission rate is higher, and the transmission quality is more stable.
