RG-ES126G-P-L, Reyee Switch 24 Port Unmanaged Switches

Name: RG-ES126G-P-L, Reyee Switch 24 Port Unmanaged Switches
Brand: Ruijie &amp; Reyee - รุ่ยเจี๋ย &amp; รียี่
SKU: RG-ES126G-P-L
Availability: InStock

สถานะสินค้า: มีสินค้า

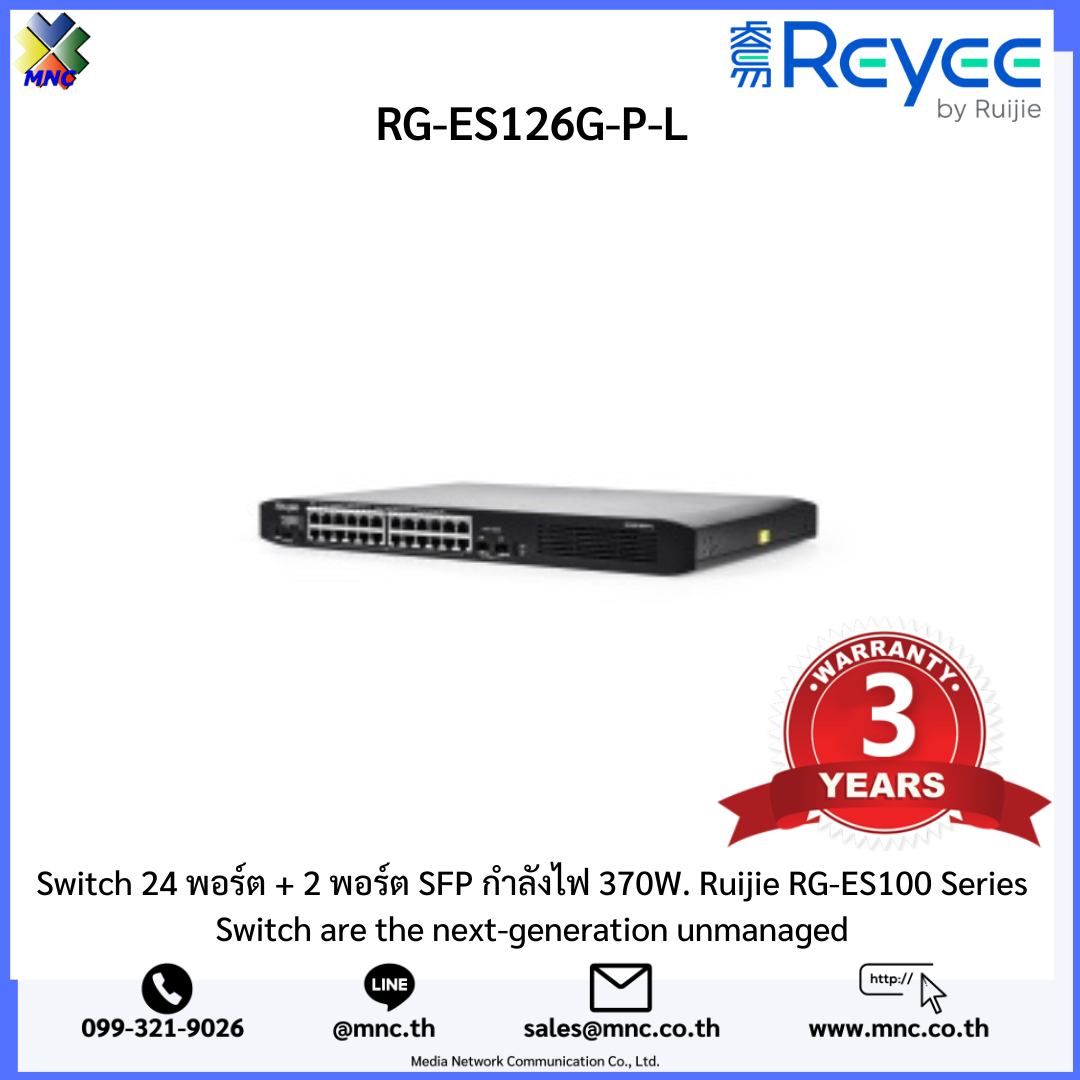

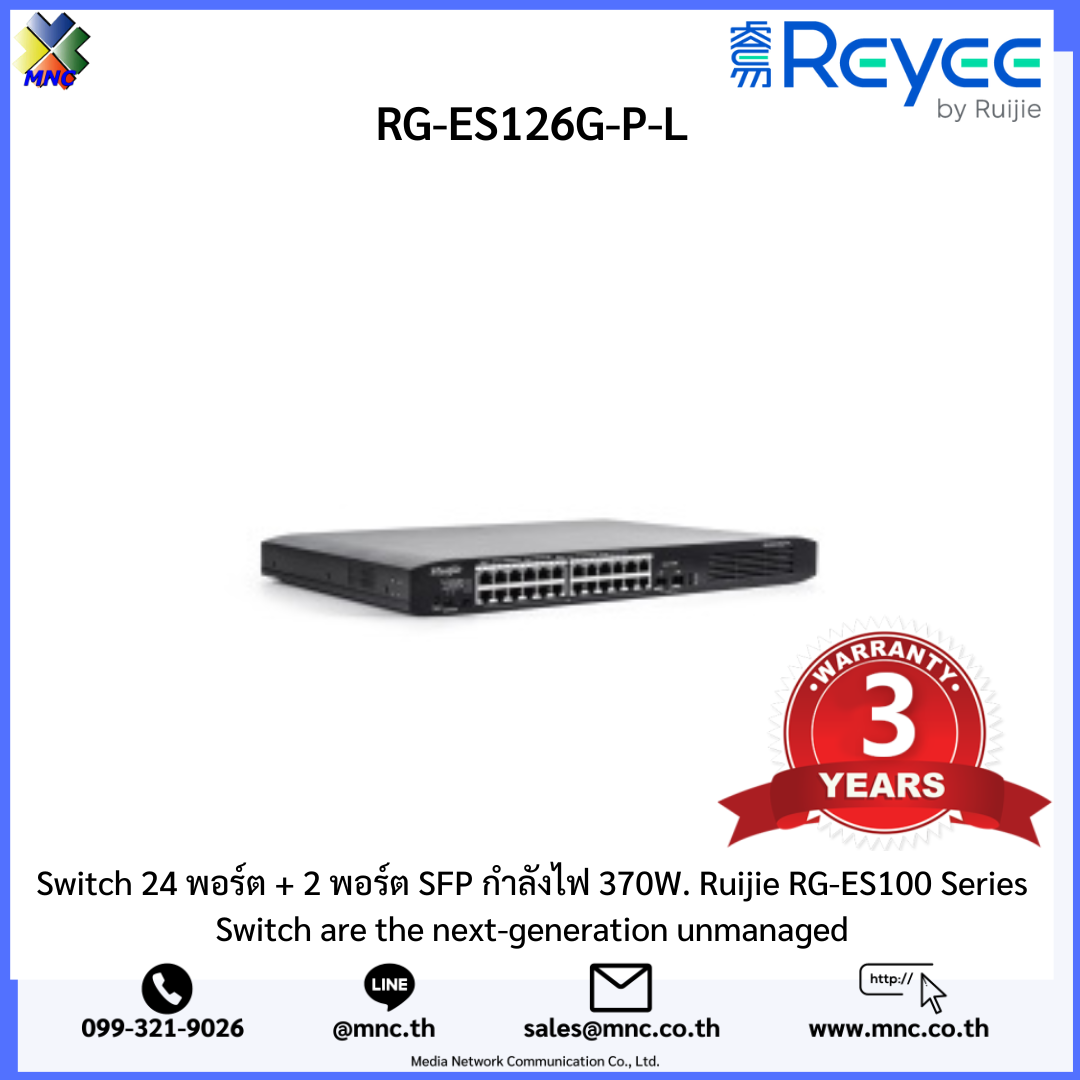

RG-ES126G-P-L, Reyee Switch 24 Port Unmanaged Switches - Image 2

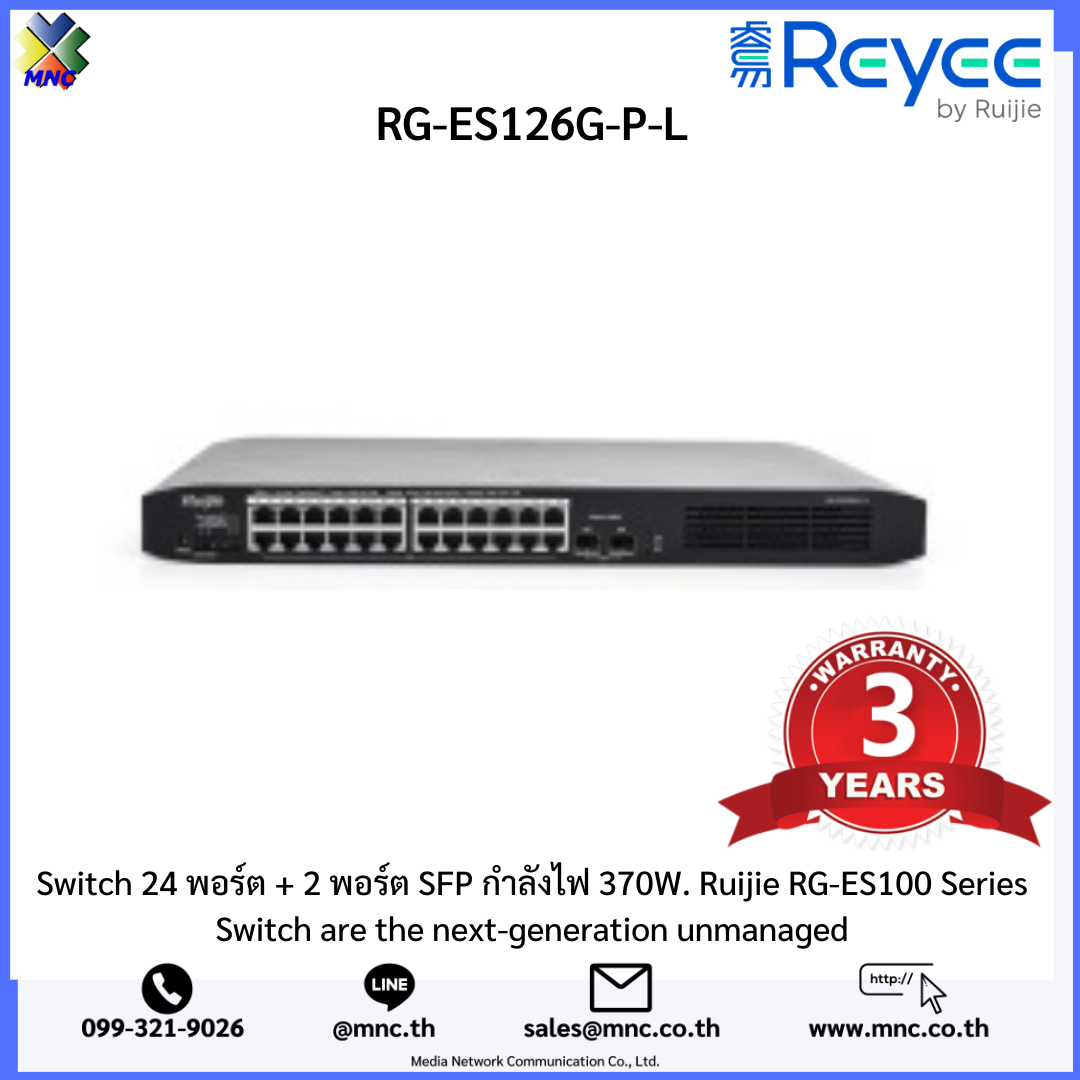

RG-ES126G-P-L, Reyee Switch 24 Port Unmanaged Switches - Image 3

12,500.00฿ (11,682.24฿ Exc. VAT)

Ruijie RG-ES126G-P-L Switch 24 พอร์ต + 2 พอร์ต SFP กำลังไฟ 370W. Ruijie RG-ES100 Series Switch are the next-generation unmanaged switches for scenarios like CCTV, ELV and small offices. The series is designed for small and medium-sized businesses looking for Plug-n-Play solution

Availability: มีสินค้า

รหัสสินค้า: RG-ES126G-P-L หมวดหมู่: Managed Switches L2 PoE แท็ก: Reyee, RG-ES126G-P-L, Ruijie, Ruijie Network, ราคา

คำอธิบาย

RG-ES100 Series Unmanaged Switches

Video surveillance has been widely popularized, and more and higher requirements are raised for surveillance security switches that are indispensable for video data transmission. Ruijie launches the Reyee RG-ES100 Series to provide customers with next-generation unmanaged surveillance security switches that feature diversified specifications, stable quality, and high-cost performance.

Specification	RG-ES105D	RG-ES108D	RG-ES106D-P （End of Sale）
Basic
Downlink Ports	5 x 10/100BASE-TX	8 x 10/100BASE-TX	4 x 10/100BASE-TX
Uplink Ports	–	–	2 x 10/100BASE-TX
PoE/PoE+ ports	–	–	4
Max. PoE budget	–	–	58W
Layer Type	Unmanaged	Unmanaged	Unmanaged
Switching capacity	1 Gbps	1.6 Gbps	1.2 Gbps
Forwarding rate	744 Kpps	1.19 Mpps	0.89 Mpps
MAC address table	1000	2000	1000
Dimensions (W x D x H)	119 mm x 75 mm x 24 mm	160 mm x 75 mm x 24 mm	100 mm × 100 mm × 26 mm
Weight (With package)	0.25 kg	0.35 kg	0.66 kg
Warranty	3 Years	3 Years	3 Years
Software Features
Auto/Full/Half Duplex Negotiation	✔️	✔️	✔️
Auto MDI/MDIX	✔️	✔️	✔️
Switching model	Store-and-forward	Store-and-forward	Store-and-forward
Cloud Management	Cloud monitoring	Cloud monitoring	Cloud monitoring
Hardware Features
Reset Button	–	–	–
Flow Control	–	–	✔️
Port Isolation	–	–	✔️
Power Consumption	≤5W	≤5W	＜67W
Power Supplies	5V power adapter, 1A	5V power adapter, 1A	51V DC Power adapter, 1.25A
Surge Protection	6kV	6kV	6kV
Fan	Fanless	Fanless	Fanless
Operating Temperature	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)	0°C to 45°C (32°F to 109°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% RH to 90% RH	10% RH to 90% RH	10% RH to 90% RH
Storage Humidity	5% RH to 95% RH	5% RH to 95% RH	5% RH to 95% RH
Certificate	CE, RoHS	CE, RoHS	CE, RoHS

Specification	RG-ES110D-P	RG-ES118S-LP	RG-ES126S-LP （End of Sale)
Basic
Downlink Ports	8 x 10/100BASE-TX	16 x 10/100BASE-TX	24 x 10/100BASE-TX
Uplink Ports	2 x 10/100/1000BASE-T	2 x 10/100/1000BASE-T Combo	2 x 10/100/1000BASE-T with 1 Combo
PoE/PoE+ ports	8	16	24
Max. PoE budget	110W	120W	180W
Layer Type	Unmanaged	Unmanaged	Unmanaged
Switching capacity	5.6 Gbps	7.2 Gbps	8.8 Gbps
Forwarding rate	4.17 Mpps	5.36 Mpps	6.55 Mpps
MAC address table	2000	8000	8000
Dimensions (W x D x H)	190 mm × 100 mm × 28 mm	440 mm × 208 mm × 44 mm	440 mm × 208 mm × 44 mm
Weight (With package)	1.3 kg	3.4 kg	3 kg
Warranty	3 Years	3 Years	3 Years
Software Features
Auto/Full/Half Duplex Negotiation	✔️	✔️	✔️
Auto MDI/MDIX	✔️	✔️	✔️
Switching model	Store-and-forward	Store-and-forward	Store-and-forward
Cloud Management	Cloud monitoring	Cloud monitoring	Cloud monitoring
Hardware Features
Reset Button	–	–	–
Flow Control	✔️	✔️	✔️
Port Isolation	✔️	✔️	✔️
Power Consumption	<129W	<148W	<220W
Power Supplies	53V DC Power adapter, 2.24A	100V AC to 240V AC, 2.5A	100V AC to 240V AC, 4A
Surge Protection	6kV	6kV	6kV
Fan	Fanless	Fanless	Support
Operating Temperature	0°C to 45°C (32°F to 109°F)	0°C to 45°C (32°F to 109°F)	0°C to 45°C (32°F to 109°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% RH to 90% RH	10% to 90% RH	10% to 90% RH
Storage Humidity	5% RH to 95% RH	5% to 95% RH	5% to 95% RH
Certificate	CE, RoHS	CE, RoHS	CE, RoHS

Specification	RG-ES105GD	RG-ES108GD	RG-ES109G-LP-L （End of Sale)
Basic
Downlink Ports	5 x 10/100/1000BASE-T	8 x 10/100/1000BASE-T	8 x 10/100/1000BASE-T
Uplink Ports	–	–	1 x 10/100/1000BASE-T
PoE/PoE+ ports	–	–	8
Max. PoE budget	–	–	54W
Layer Type	Unmanaged	Unmanaged	Unmanaged
Switching capacity	10 Gbps	16 Gbps	18 Gbps
Forwarding rate	7.44 Mpps	11.9 Mpps	13.5 Mpps
MAC address table	2000	4000	8000
Dimensions (W x D x H)	19 mm x 62 mm x 24 mm	160 mm x 75 mm x 24 mm	206.5 mm x 108.5 mm x 28 mm
Weight (With package)	0.25 kg	0.35 kg	1.1 kg
Warranty	3 Years	3 Years	3 Years
Software Features
Auto/Full/Half Duplex Negotiation	✔️	✔️	✔️
Auto MDI/MDIX	✔️	✔️	✔️
Switching model	Store-and-forward	Store-and-forward	Store-and-forward
Cloud Management	Cloud monitoring	Cloud monitoring	Cloud monitoring
Hardware Features
Reset Button	–	–	–
Flow Control	–	–	✔️
Port Isolation	–	–	✔️
Power Consumption	≤5W	≤5W	≤64W
Power Supplies	5V power adapter, 1A	5V power adapter, 1A	54V DC Power adapter, 1.11A
Surge Protection	6kV	6kV	6kV
Fan	Fanless	Fanless	Fanless
Operating Temperature	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)	0°C to 45°C (32°F to 109°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% RH	10% to 90% RH	10% to 90% RH
Storage Humidity	5% to 95% RH	5% to 95% RH	5% to 95% RH
Certificate	CE, RoHS	CE, RoHS	CE, RoHS

Specification	RG-ES110GDS-P	RG-ES116G	RG-ES118GS-P
Basic
Downlink Ports	8 x 10/100/1000BASE-T	16 x 10/100/1000BASE-T	16 x 10/100/1000BASE-T
Uplink Ports	2 x 1000BASE-X SFP	–	2 x 1000BASE-X SFP
PoE/PoE+ ports	8	–	8
Max. PoE budget	120W	–	247W
Layer Type	Unmanaged	Unmanaged	Unmanaged
Switching capacity	20 Gbps	32 Gbps	36 Gbps
Forwarding rate	14.88 Mpps	23.81 Mpps	26.78 Mpps
MAC address table	4000	8000	8000
Dimensions (W x D x H)	280 mm x 180 mm x 44 mm	280 mm x 126 mm x 44 mm	440 mm x 240 mm x 44 mm
Weight (With package)	2.26 kg	1.75 kg	4.0 kg
Warranty	3 Years	3 Years	3 Years
Software Features
Auto/Full/Half Duplex Negotiation	✔️	✔️	✔️
Auto MDI/MDIX	✔️	✔️	✔️
Switching model	Store-and-forward	Store-and-forward	Store-and-forward
Cloud Management	Cloud monitoring	Cloud monitoring	Cloud monitoring
Hardware Features
Reset Button	–	–	–
Flow Control	✔️	✔️	✔️
Port Isolation	✔️	✔️	✔️
Power Consumption	≤130W	≤11W	≤285W
Power Supplies	100V AC to 240V AC, 2.5A	100V AC to 240V AC, 0.5A	100V AC to 240V AC, 3.5A
Surge Protection	6kV	6kV	6kV
Fan	Fanless	Fanless	Support
Operating Temperature	0°C to 45°C (32°F to 109°F)	0°C to 45°C (32°F to 109°F)	0°C to 45°C (32°F to 109°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% RH	10% to 90% RH	10% to 90% RH
Storage Humidity	5% to 95% RH	5% to 95% RH	5% to 95% RH
Certificate	CE, RoHS	CE, RoHS	CE, RoHS

Specification	RG-ES124GD	RG-ES126G-LP-L （End of Sale)	RG-ES126G-P-L (End of Sale)
Basic
Downlink Ports	24 x 10/100/1000BASE-T	24 x 10/100/1000BASE-T	24 x 10/100/1000BASE-T
Uplink Ports	–	2 x 1000BASE-X SFP	2 x 1000BASE-X SFP
PoE/PoE+ ports	–	24	24
Max. PoE budget	–	180W	370W
Layer Type	Unmanaged	Unmanaged	Unmanaged
Switching capacity	48 Gbps	52 Gbps	52 Gbps
Forwarding rate	35.71 Mpps	38.7 Mpps	38.7 Mpps
MAC address table	8000	8000	8000
Dimensions (W x D x H)	280 mm x 126 mm x 44 mm	440 mm x 208 mm x 44 mm	440 mm x 292 mm x 44 mm
Weight (With package)	1.76 kg	4.2 kg	4.2 kg
Warranty	3 Years	3 Years	3 Years
Software Features
Auto/Full/Half Duplex Negotiation	✔️	✔️	✔️
Auto MDI/MDIX	✔️	✔️	✔️
Switching model	Store-and-forward	Store-and-forward	Store-and-forward
Cloud Management	Cloud monitoring	Cloud monitoring	Cloud monitoring
Hardware Features
Reset Button	–	–	–
Flow Control	✔️	✔️	✔️
Port Isolation	✔️	✔️	✔️
Power Consumption	≤16W	≤200W	≤430W
Power Supplies	100V AC to 240V AC, 0.5A	100V AC to 240V AC, 3A	100V AC to 240V AC, 6A
Surge Protection	6kV	6kV	6kV
Fan	Fanless	Support	Support
Operating Temperature	0°C to 45°C (32°F to 109°F)	0°C to 45°C (32°F to 109°F)	0°C to 45°C (32°F to 109°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% RH	10% to 90% RH	10% to 90% RH
Storage Humidity	5% to 95% RH	5% to 95% RH	5% to 95% RH
Certificate	CE, RoHS	CE, RoHS	CE, RoHS

Warranty

3 Years warranty

Download

Product Datasheet

RG-ES100

1 file(s) 4.29 MB
