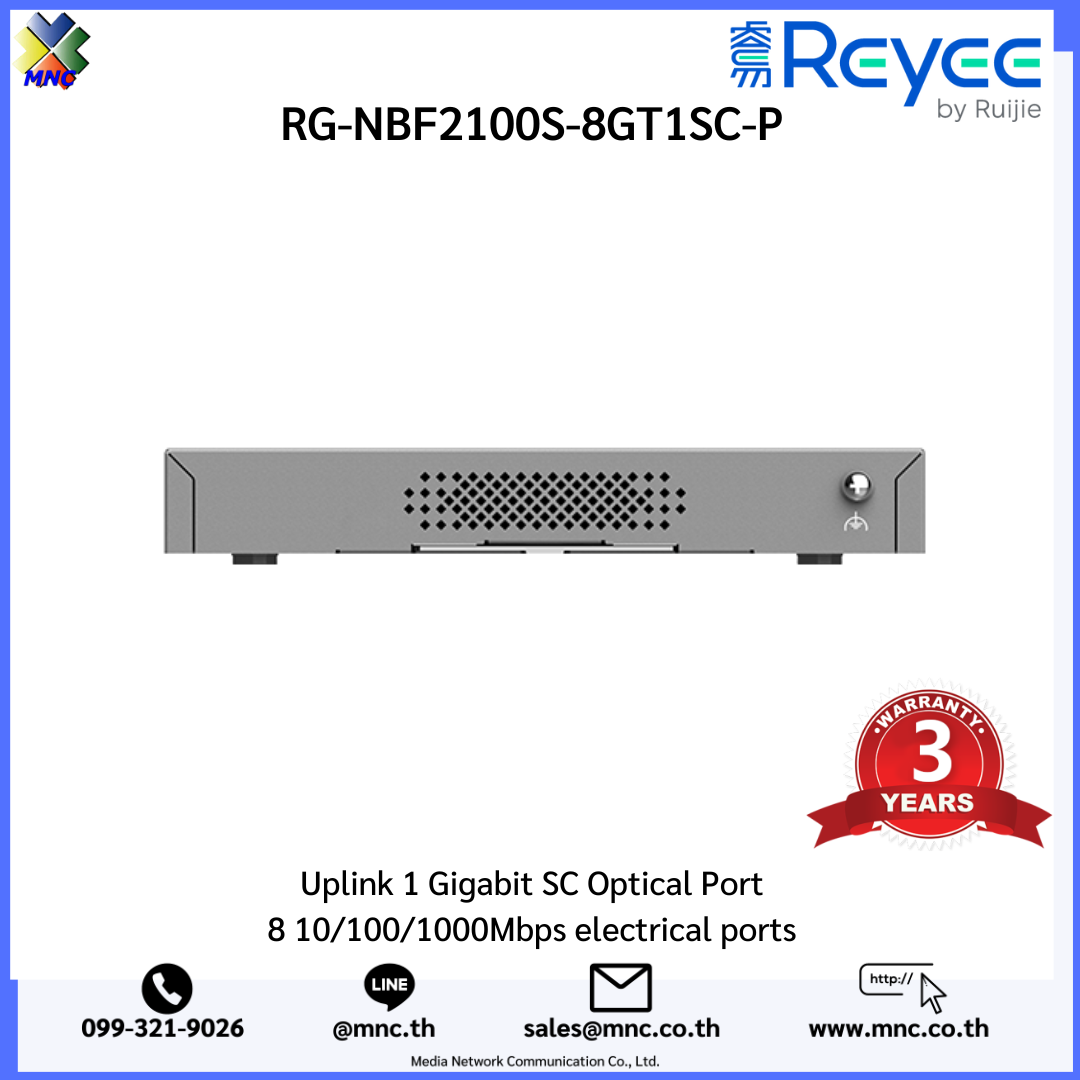

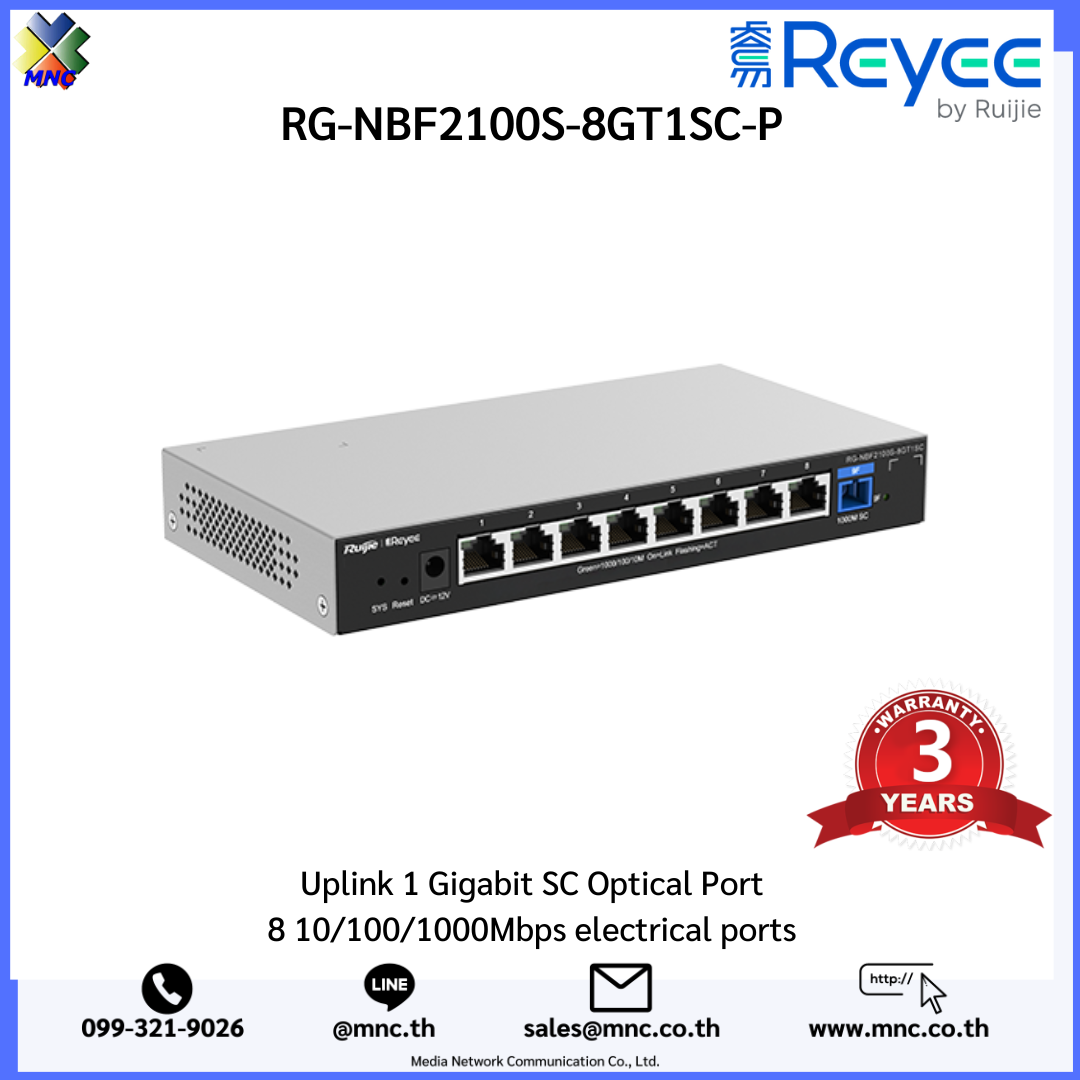

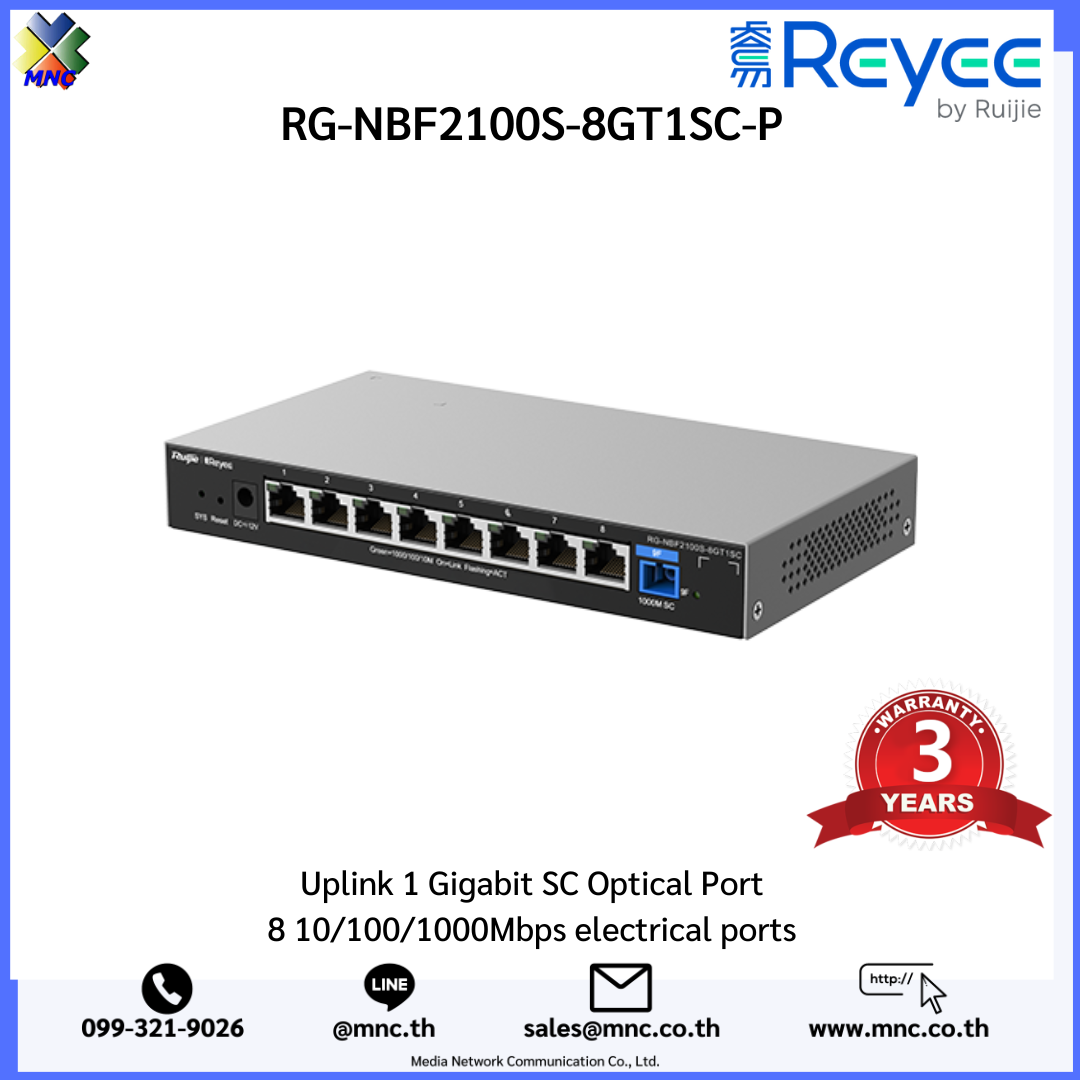

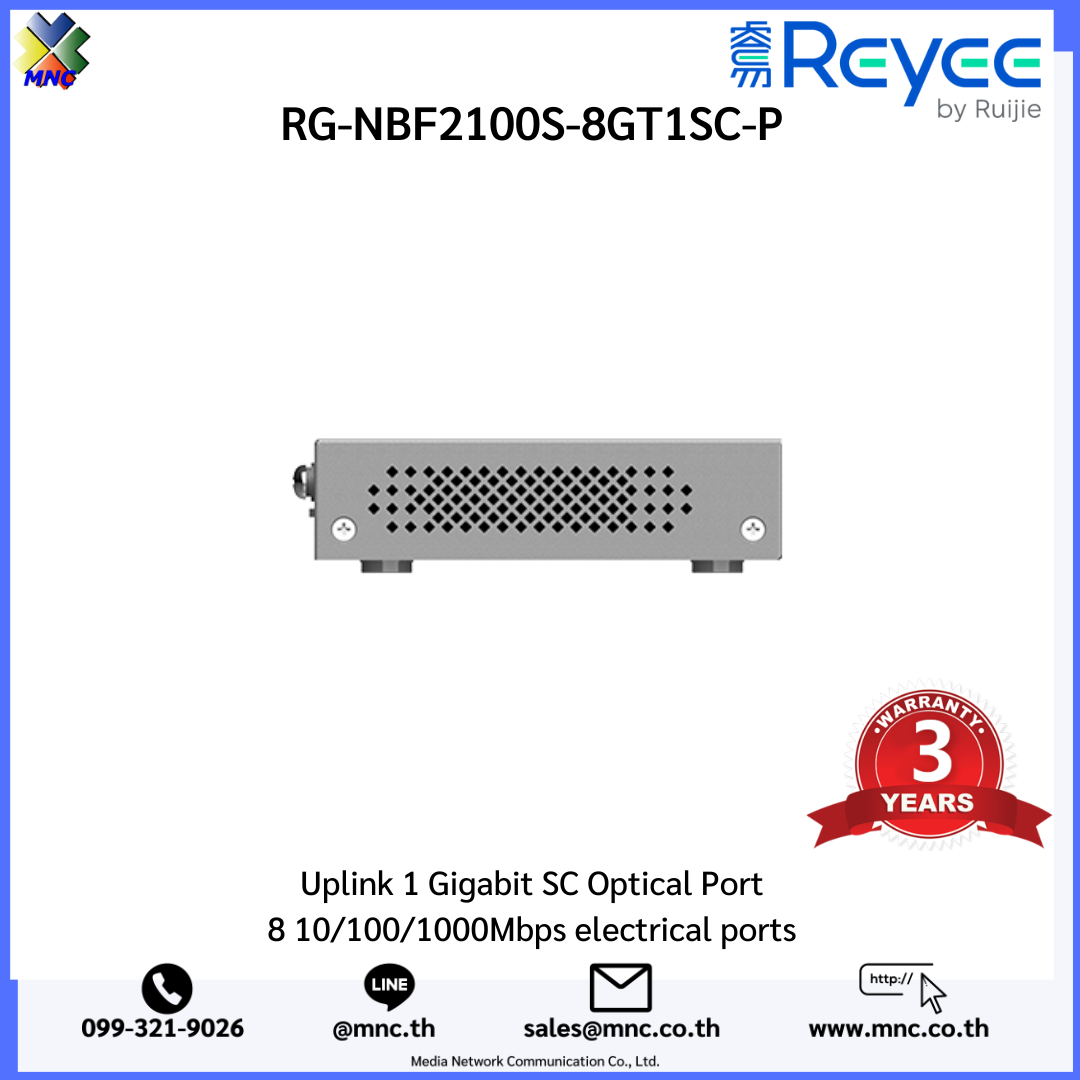

RG-NBF2100S-8GT1SC-P, Reyee Light network mangement 8 Port Gigabit passive optical uplink (ONU)

คำอธิบาย

Reyee RG-NBF2100S-8GT1SC-P Light network mangement 8 Port Gigabit passive optical uplink Optical Access switch (ONU)

Passive all-fiber LAN is a new LAN networking method (P2MP). Compared with the traditional Ethernet solution (P2P), it has fewer maintenance nodes, a more streamlined layer 2 network structure, and smoother upgrade transition capabilities.

Ruijie Ruiyi has developed a new set of Ethernet optical splitting products (referred to as “Yiguang solution”). The new solution can support both passive all-fiber LAN (P2MP) and traditional Ethernet network (P2P) networking methods. Engineering companies do not need to After re-learning, you can complete the networking and debugging of the passive all-fiber LAN.

Yiguang’s solution includes optical network convergence switches (OLT), optical APs (ONUs), optical access switches (ONUs), optical splitting optical modules, passive optical splitters and other products. RG-NBF2100S series switches are Gigabit optical access switches (ONUs) launched by Ruijie Ruiyi for passive all-fiber LANs. They can be used in campus weak power, offices, hotels, homes, small and medium-sized businesses and other scenarios according to business needs, and are a perfect match. Application requirements of SMB scenarios.

The RG-NBF2100S series switches have a variety of hardware port specifications, including RG-NBF2100S-4GT1SC, RG-NBF2100S-4GT1SC-P, RG-NBF2100S-8GT1SC, RG-NBF2100S-8GT1SC-P and other models, which can meet the needs of customers in Africa. Intelligent management needs for PC computers, printers, and non-PoE monitoring access in PoE scenarios. It can also meet customers’ remote PoE management needs for PoE monitoring and PoE wireless AP access in PoE scenarios. RG-NBF2100S series switches are plug-and-play while maintaining the factory default configuration. They also support Easy Network APP/MACC remote management, providing simple and easy-to-use debugging and operation and maintenance functions, which can quickly locate network faults and restart POE power supply. Port, VLAN configuration, etc. make the later operation and maintenance of the entire network simpler and more convenient, and reduce operation and maintenance costs.

Features

Direct fiber connection makes construction wiring more convenient

The optical access switch (ONU) RG-NBF2100S series uses a built-in SC Gigabit uplink optical port, which can be directly used with an Ethernet splitter central office core switch for passive all-fiber LAN networking. Not only does it not need to purchase additional optical modules, it can also meet Long-distance coverage of over 100 meters.

Two-layer networking architecture makes maintenance easier

Compared with the traditional Ethernet three-layer architecture, the optical access switch (ONU) RG-NBF2100S series adopts a flat two-layer networking architecture. Through the passive aggregation design, not only the use of a large number of active aggregation switches is reduced, there is no need to build weak current rooms in the corridor, but also a large amount of maintenance work is reduced.

Inheriting the traditional Ethernet configuration method, the debugging and operation of all-optical networks are easier

The optical access switch (ONU) RG-NBF2100S series inherits the configuration logic of traditional Ethernet and can achieve extremely fast deployment of a passive all-fiber LAN in 3 minutes.

The optical access switch (ONU) RG-NBF2100S series supports remote management through Ruiyi APP and Nok Cloud MACC. You can easily understand the status of the passive all-fiber local area network without going to the site, and you can remotely modify parameter configurations and perform remote faults. Locate and repair.

The optical access switch (ONU) RG-NBF2100S series also supports local extremely fast intelligent configuration. It can complete an ad hoc network without obtaining an IP. It can also perform unified configuration of the entire network without going to the cloud, and the equipment debugging is simple.

Allocate VLANs on demand to make the network more efficient

The optical access switch (ONU) RG-NBF2100S series provides a convenient and flexible VLAN division method. It can divide ports into different VLANs according to scene needs to form mutually isolated broadcast domains. Users in different VLANs do not interfere with each other, providing a more stable network.

High-standard lightning protection design, the product is more stable

The lightning protection capability of all ports of the optical access switch (ONU) RG-NBF2100S series reaches 6KV, which reduces the probability of ports being damaged by surges, easily copes with the needs of harsh outdoor environments, improves customer network stability, and ensures a better network experience.

No configuration required, plug and play

In the factory default state of the optical access switch (ONU) RG-NBF2100S series, no configuration operation is required after powering on. You only need to correctly connect the switch to terminal equipment such as network cameras and wireless APs to quickly build a video surveillance transmission network.

Full PoE power, supports fully loaded PoE network cameras

The total output power of POE series switches is full power (only for RG-NBF2100S-P series switches), supporting all PoE ports to be fully loaded with PoE network cameras at the same time. No matter day or night, the camera’s infrared light is turned off or on, ensuring normal power supply to all PoE network cameras.

PoE power automatically adjusts, safe and energy-saving

The ports of the optical access switch (ONU) RG-NBF2100S series support 802.3af and 802.3at protocols (only for RG-NBF2100S-P series switches) and can provide up to 30W power supply to connected devices. At the same time, it will negotiate with the connected device to automatically match the power consumption of the connected device to save energy.

In addition, when the POE power supply port is connected to a PC, hard disk video recorder or other non-PoE devices, the switch will automatically identify the device and will not output current to such devices to ensure device safety.
