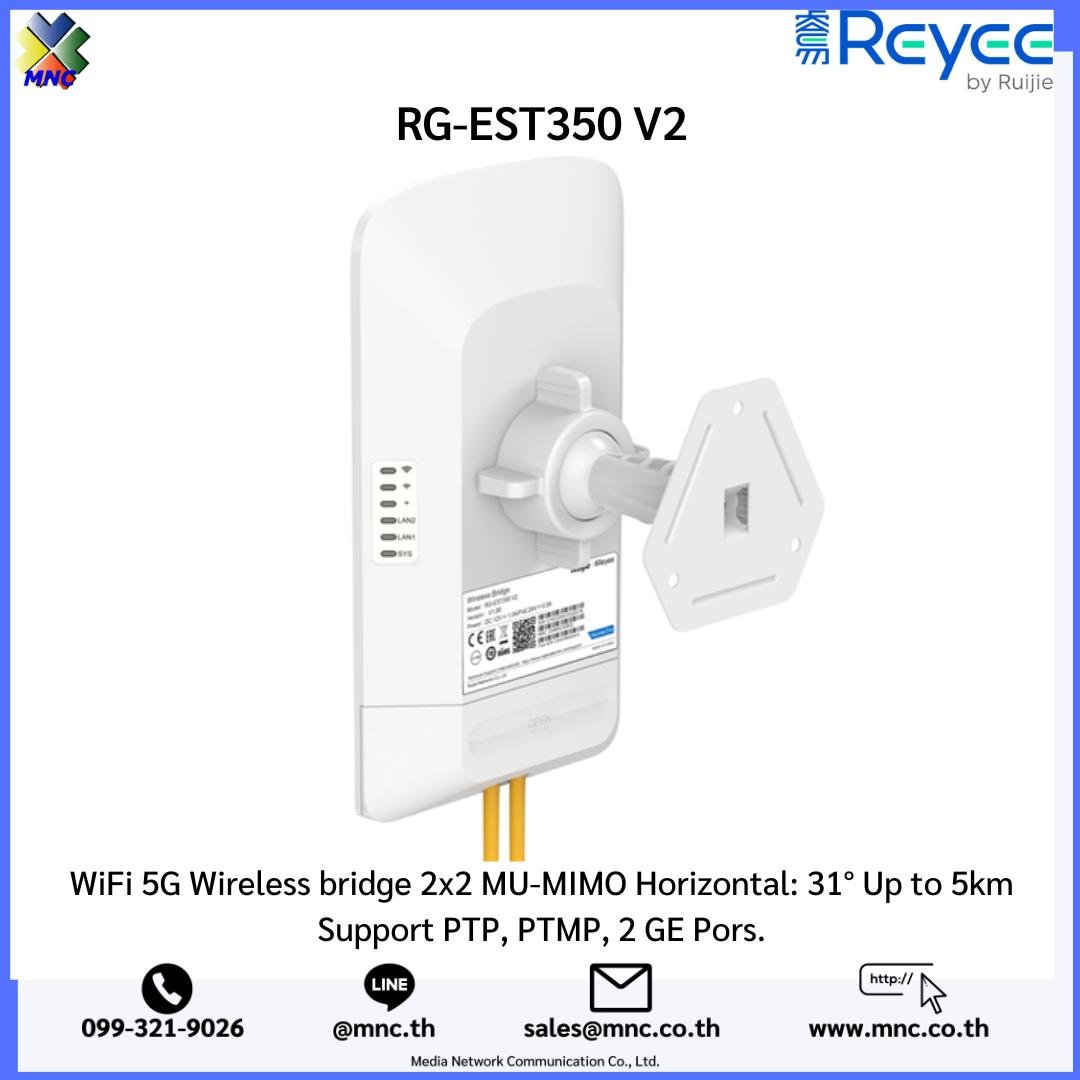

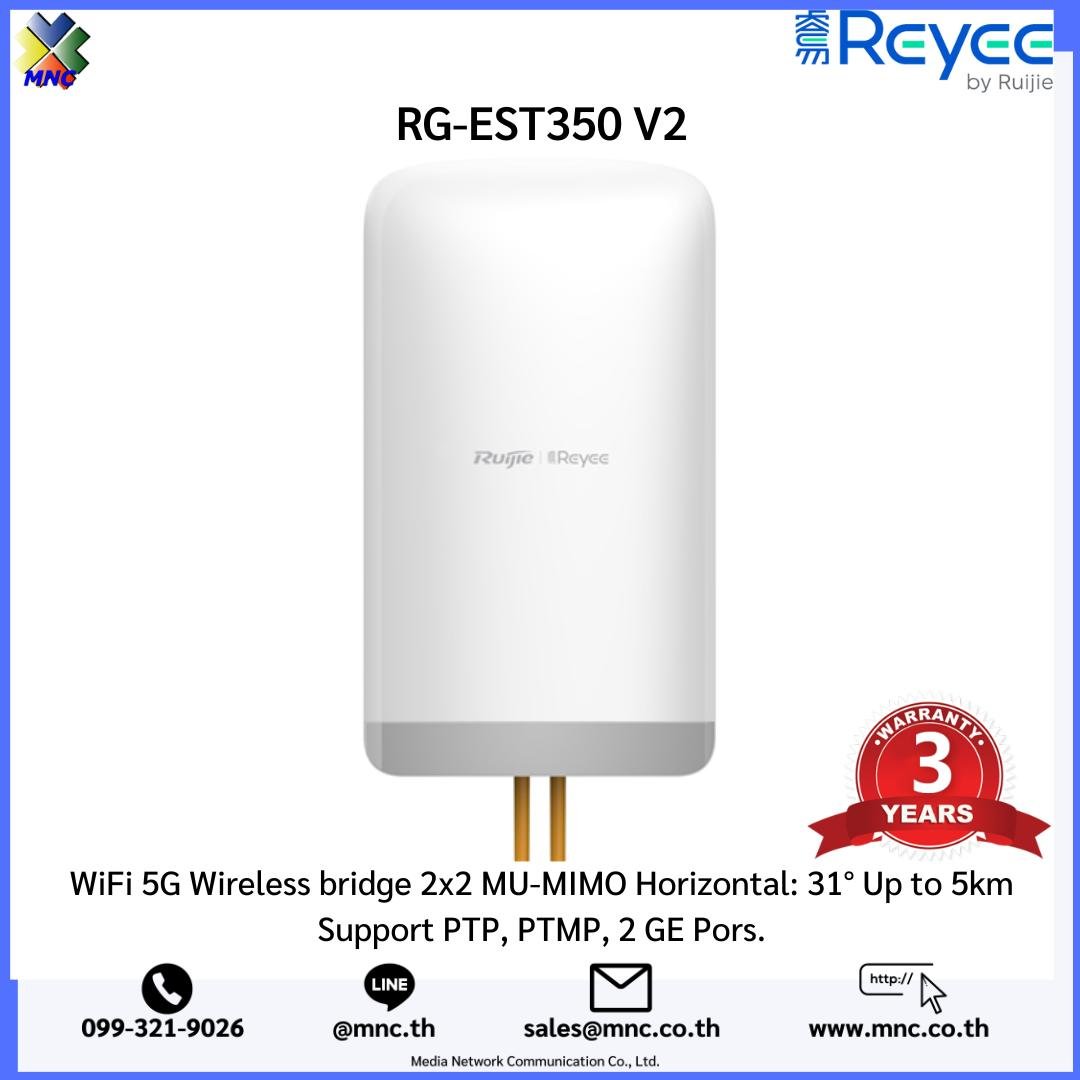

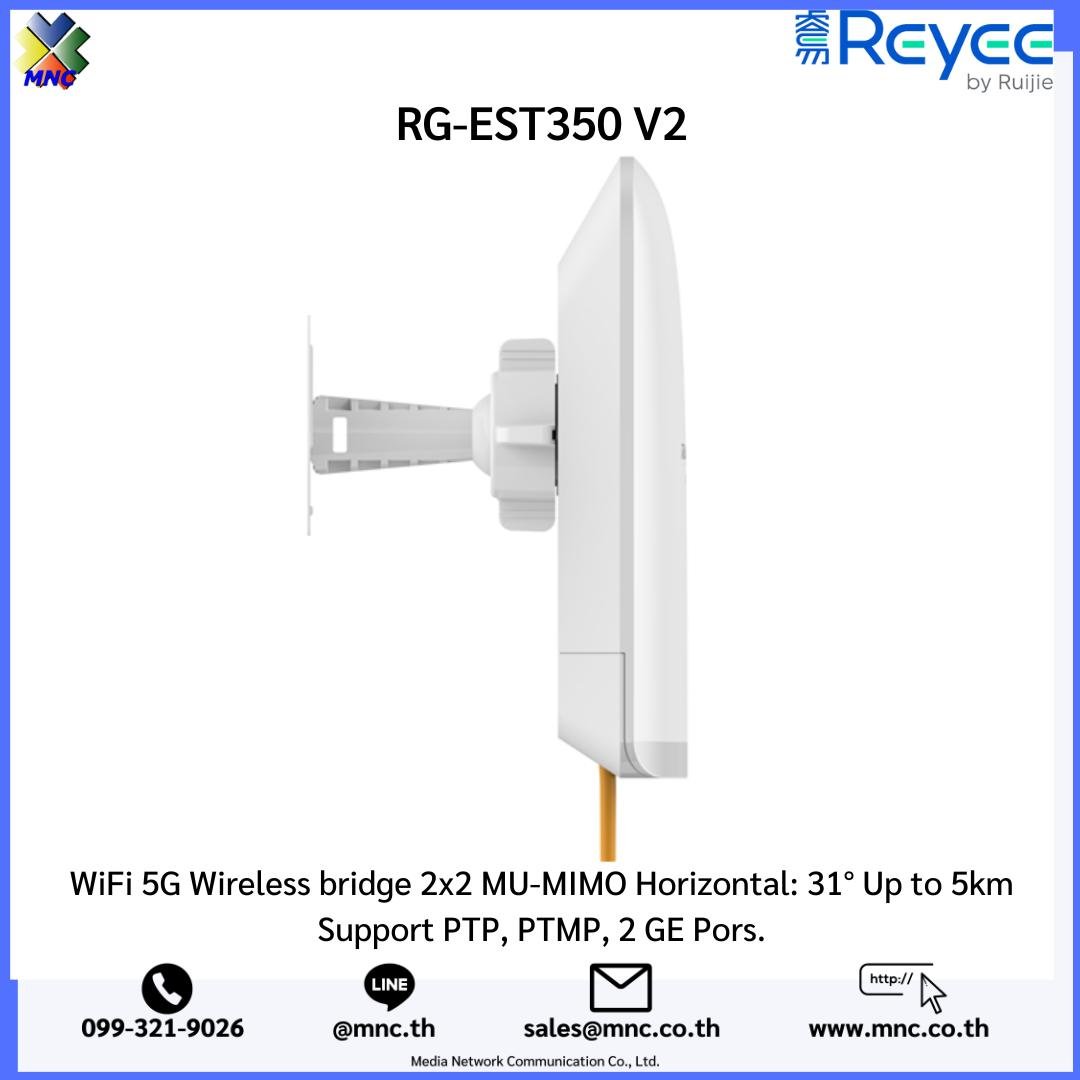

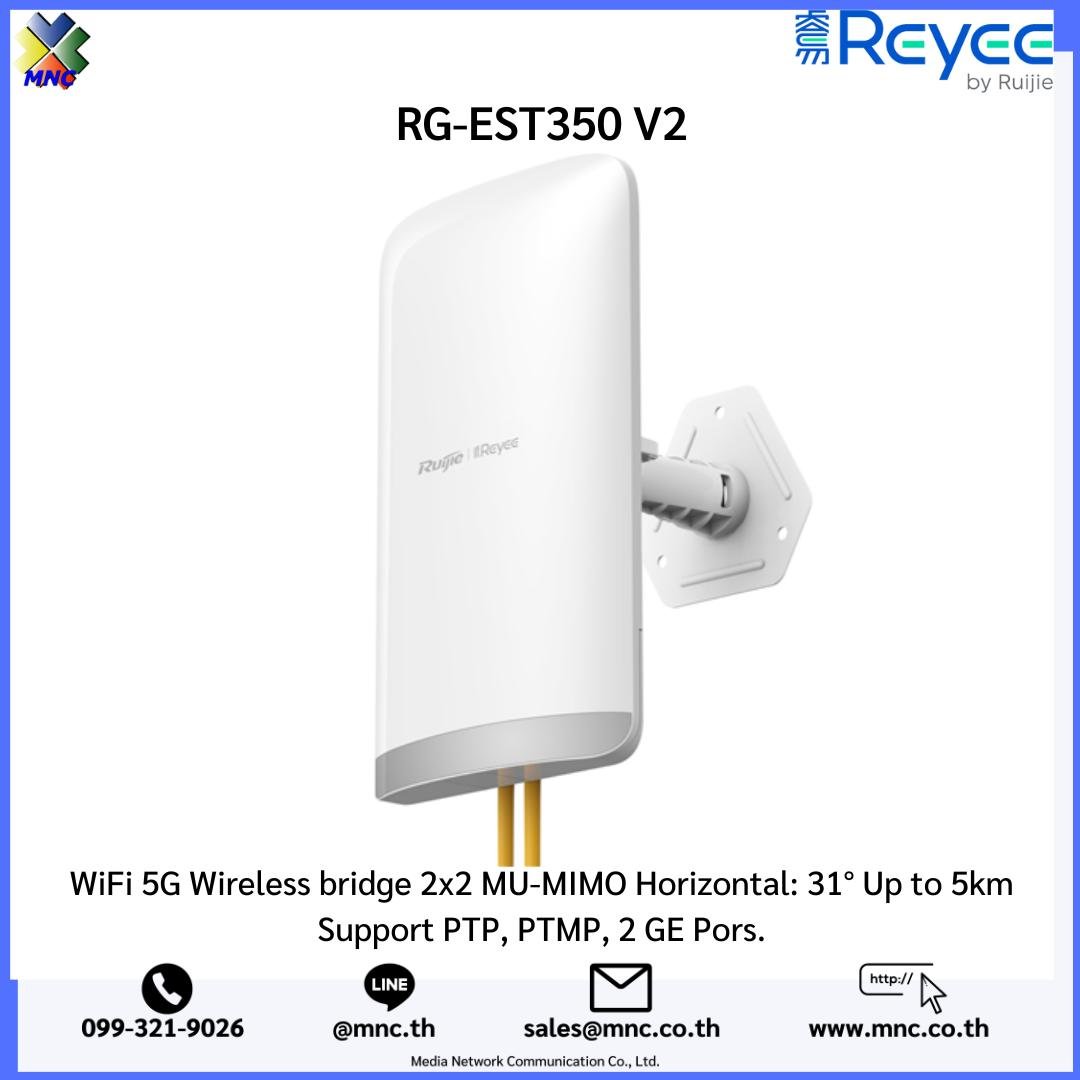

Ruijie Reyee Series RG-EST350 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as tower cranes, factories, scenic spots, campuses, planting bases, aquafarm breeding bases, and construction sites. Operating at 5 GHz, RG-EST350 supports two spatial streams (2×2 MIMO technology) and provides up to 867 Mbps throughput, which can fully meet the data link bandwidth requirements of various services.
RG-EST350 consists of 2 devices, including the recorder-end and camera-end devices. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.
RG-EST350 can be managed via the app, including viewing the network topology and modifying configurations, which has completely revolutionized the conventional contact-type bridge configuration method. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level.
With the four-sided curved edge design, RG-EST350 is equipped with a high-gain antenna. It fully utilizes the compact size and offers an exquisite exterior design. Hose clamps are provided for easy equipment installation. The casing of the device is optimized to deliver better dustproof and waterproof performance, providing IP65 protection. The weather-resistant materials enable the casing to stay robust for a long time under harsh conditions such as exposure to the sun, wind, acid, and alkali corrosion. Moreover, the wide temperature range of the industrial materials adopted for the device fully guarantees the reliability and durability of the device under various complex environments such as hot and humid weather, dry and cold weather, sun exposure, rain, strong winds, etc. The device is capable of effectively withstanding the impact of bad weather or harsh environments, offering high stability while significantly reducing construction and installation difficulties.
Key Specification
- Wi-Fi Standards Wi-Fi 5 (IEEE 802.11ac, Wave2)
- Max. Wireless Speed 5 GHz: 867Mbps
- Weatherproof IP54
- Operating Temperature -30°C to 65°C (-22°F ~ 149°F)
- Fixed Ports 2 x 10/100/1000Base-T
- Demensions 230 mm × 132 mm × 48 mm
- Certification CE, RoHS
- MIMO 2X2, MU-MIMO
- Antenna Gain Directional, 15 dBi
- Polarization Horizontal: 31°, Vertical: 14°
- Recommended Distance 5 KM
- Transmit Power ≤400 mW(26 dBm) (adjustable)
- Weight 0.5 kg
