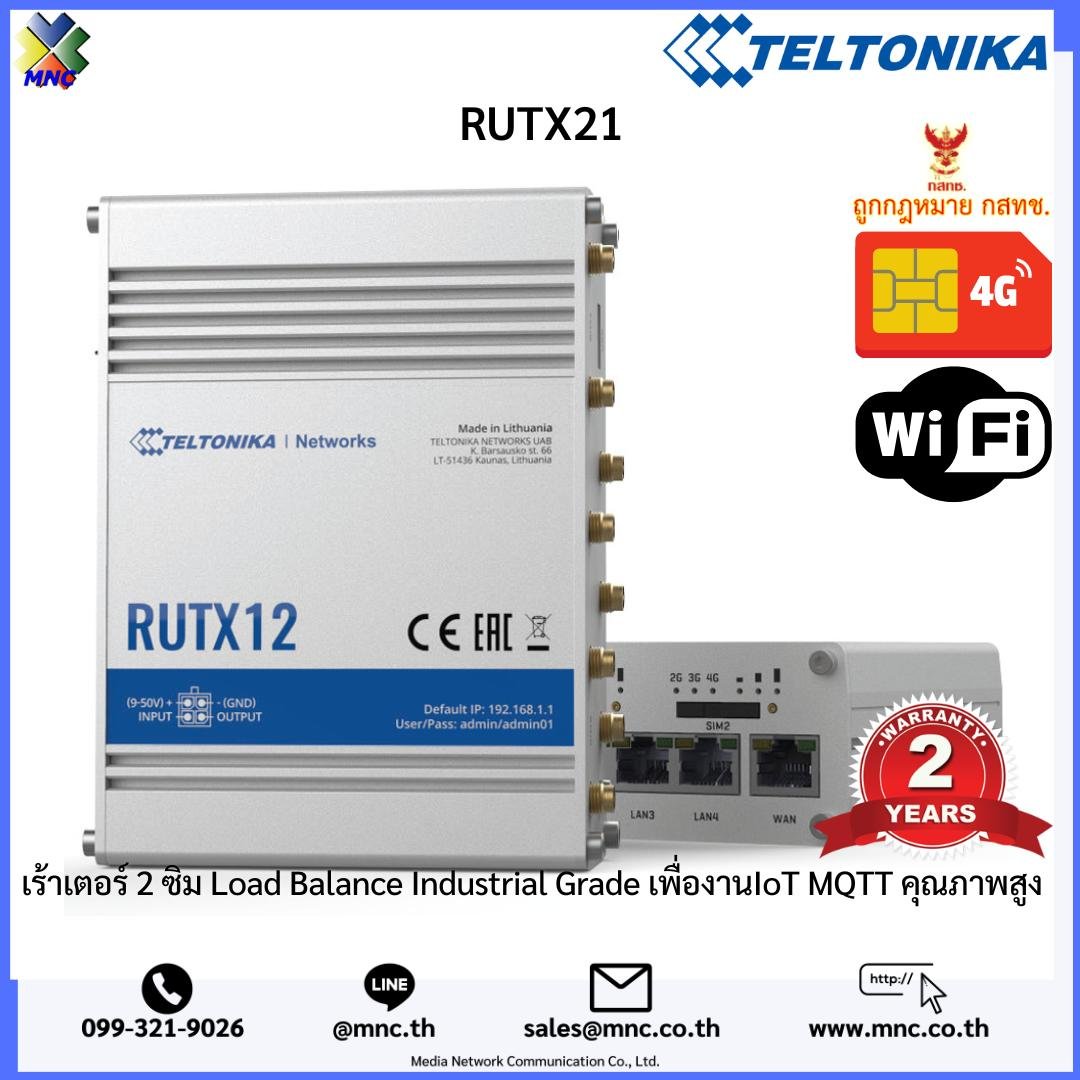

RUTX12, Teltonika Router 4G Dual SIM Load Balancing

Mobile module 2 x 4G LTE Cat 6 up to 300 DL/50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

3GPP Release Release 12

Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list Operator black/white list (by country or separate operators)

Multiple PDN Possibility to use different PDNs for multiple network access and services

Band management Band lock, Used band status display

SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN

APN Auto APN

Bridge Direct connection (bridge) between mobile ISP and device on LAN

Passthrough Router assigns its mobile WAN IP address to another device on LAN

Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

Wi-Fi security WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect

SSID/ESSID ESSID stealth mode

Wi-Fi users Up to 150 simultaneous connections

Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter Whitelist, blacklist

Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information.

Bluetooth 4.0 Bluetooth low energy (LE) for short range communication

WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall Port forward, traffic rules, custom rules

Firewall status page View all your Firewall statistics, rules, and rule counters

Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology Visual representation of your network, showing which devices are connected to which other devices

Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS Supported >25 service providers, others can be configured manually

DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing Balance Internet traffic over multiple WAN connections

SSHFS Possibility to mount remote file system via SSH protocol

VRF support Initial virtual routing and forwarding (VRF) support

802.1x Port-based network access control client

Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN Port and tag-based VLAN separation

Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control Flexible access control of SSH, Web interface, CLI and Telnet

SSL certificate generation Let’s encrypt support

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN Method of building scalable IPsec VPNs

SSTP SSTP client instance support

ZeroTier ZeroTier VPN client support

WireGuard WireGuard VPN client and server support

Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

Supported modes Client, Server

Supported connection types TCP

Supported modes Server, Client

Supported connection types TCP, USB

Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Protocol HTTP(S), MQTT, Azure MQTT, Kinesis

Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

Supported modes Station, Outstation

Supported connection TCP, USB

DLMS Support DLMS – standard protocol for utility meter data exchange

Supported modes Client

Supported connection types TCP, USB

Teltonika Networks Web API (beta) support Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA Firmware update from server, automatic notification

SSH SSH (v1, v2)

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT MQTT Broker, MQTT publisher

SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC Management API over HTTP/HTTPS

RMS Teltonika Remote Management System (RMS)

ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity – Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.

Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

CPU Quad-core ARM Cortex A7, 717 MHz

RAM 256 MB, DDR3

FLASH storage 256 MB, SPI Flash

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA Update FW

RMS Update FW/configuration for multiple devices at once

Keep settings Update FW without losing current configuration

Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

Operating system RutOS (OpenWrt based Linux OS)

Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager

Development tools SDK package with build environment provided

GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager The Package Manager is a service used to install additional software on the device

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA  0183

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server software Supported server software TAVL, RMS

Geofencing multiple geofence zones

Data rate USB 2.0

Applications Samba share, USB-to-serial

External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high

Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Events Email, RMS, SMS

I/O juggler Allows to set certain I/O conditions to initiate event

Connector 4-pin industrial DC power socket

Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC

Power consumption Idle: < 4 W, Max: < 22 W

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps

I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs 4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders

Power 1 x 4-pin power connector

Antennas 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS

USB 1 x USB A port for external devices

Reset Reboot/User default reset/Factory reset button

Other 1 x Grounding screw

Casing material Full aluminium housing

Dimensions (W x H x D) 132 x 44.2 x 95.1 mm

Weight 540 g

Mounting options DIN rail, wall mount, flat surface (all require additional kit)

Operating temperature -40 °C to 75 °C

Operating humidity 10% to 90% non-condensing

Ingress Protection Rating IP30

Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark
