Product Description
The IP Paging Adapter SIP-T20 is simple and slim design with black color. It has built-in 15W amplifier, interface of MIC input, Headset output, Speaker output, GPIO Alarm input, GPIO Alarm output, Relay Alarm output. The SIP Paging Adapter can connect analog speaker or amplifier so as to realize SIP Speaker or SIP Intercom function. Besides, it can also connect Alarm and MIC. The Paging Adapter is compatible with VoIP devices and ONVIF VMS. The SIP Paging Gateway supports two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control.It’s perfect to be applied in various PA System, for instance, school, retail, commercial centers, etc.
Specification
| Audio | |
| Decoding | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Network | |
| Security | Password protection, IP address filtering, Digest authentication, User access log |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support SIP protocol for intergration with VoIP systimes, intergrated with SIP/PBX. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
| Amplifier | |
| Amplifier | 15W |
| General | |
| Material | Metal |
| Power Supply | PoE or DC 12V/24V |
| Interface | 1* MIC input, 1* Headset output, 1* Speaker output, 2* GPIO Alarm input, 1* GPIO Alarm output, 2* Relay Alarm output |
| Dimensions | 112mm *105mm * 29mm |
| Weight | 250g |
| Languages | English |
| Warranty | 2 years |
| Package includes | SIP Paging Adapter
Quick Start Guide |
| Customization | Accept OEM, ODM |

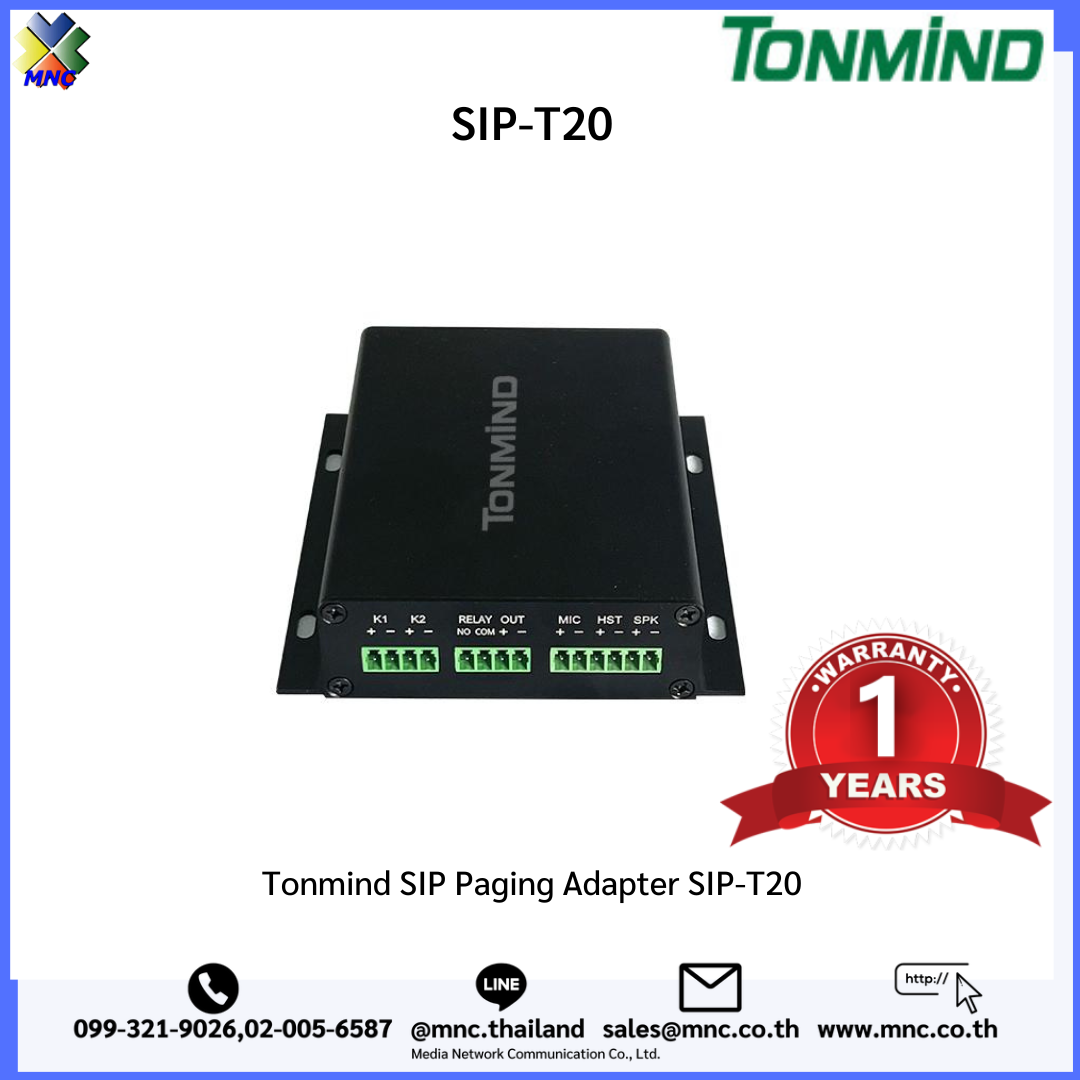

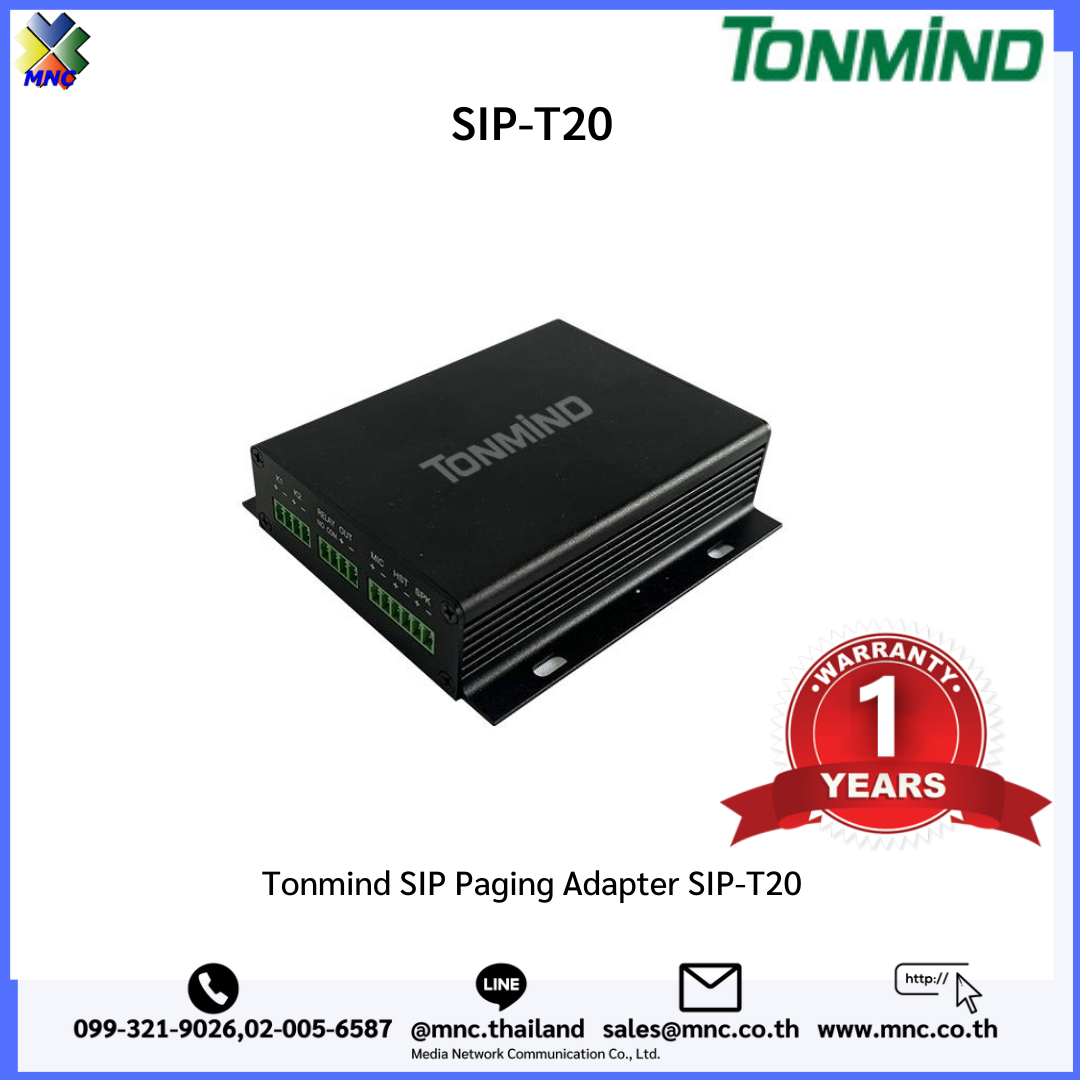

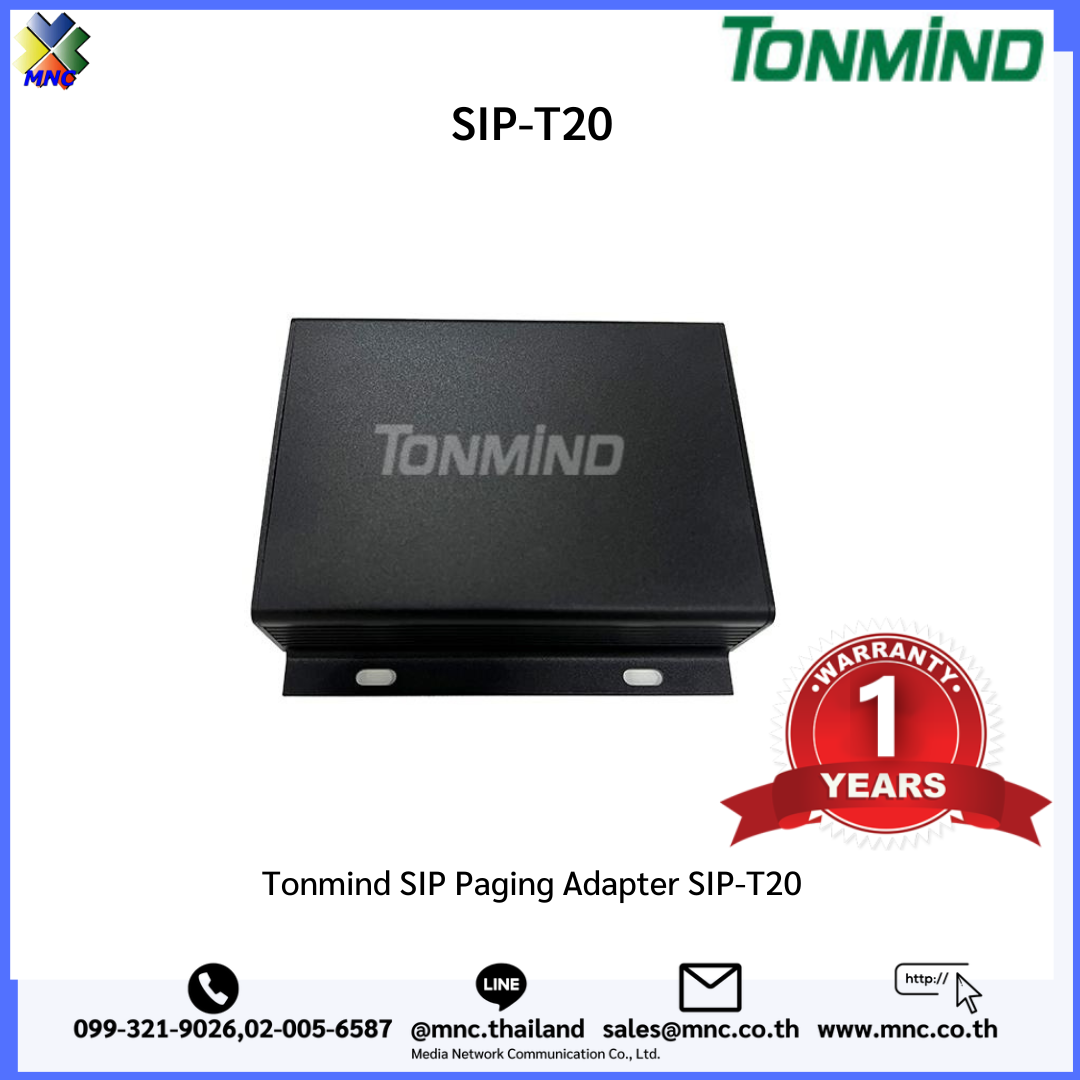

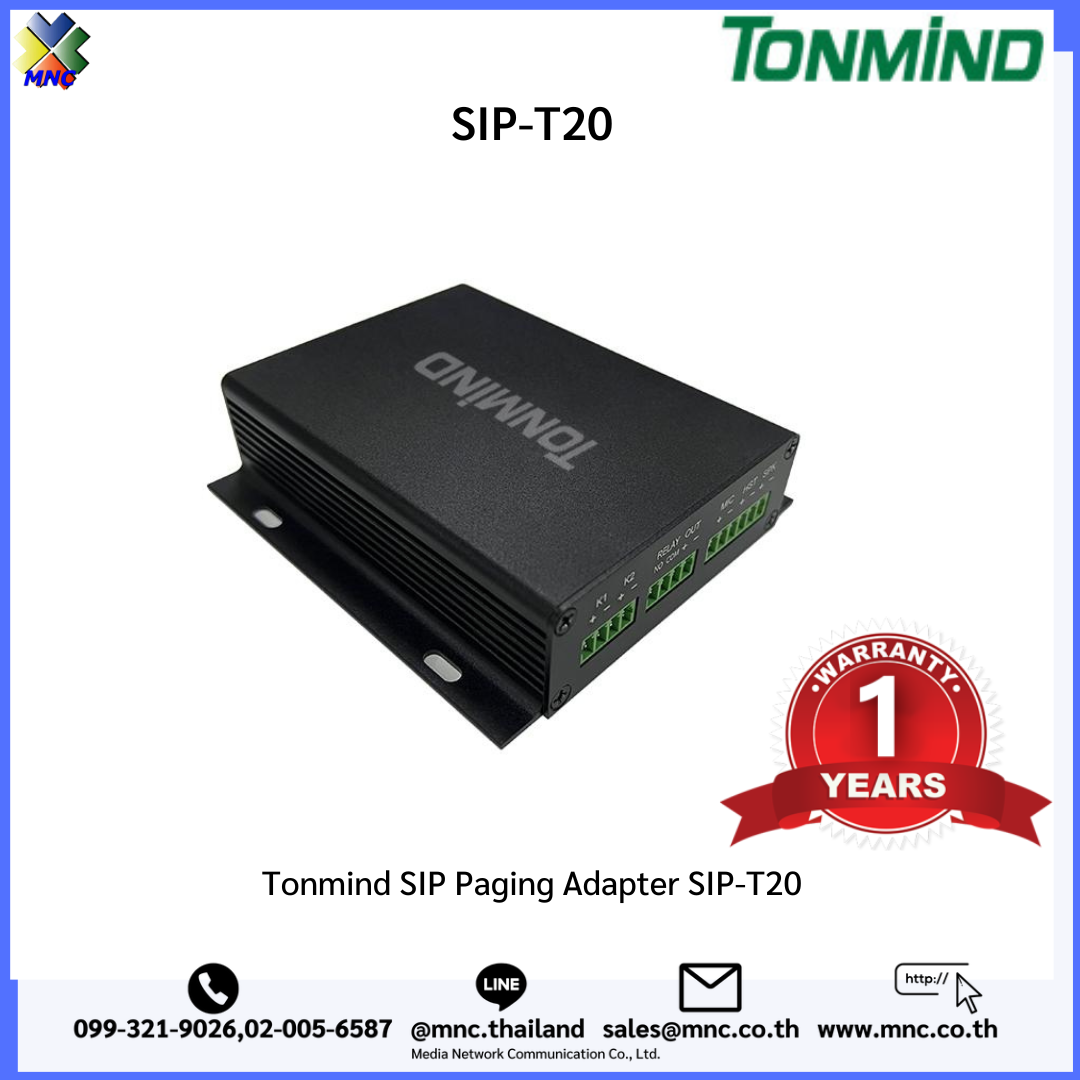

Product Show
