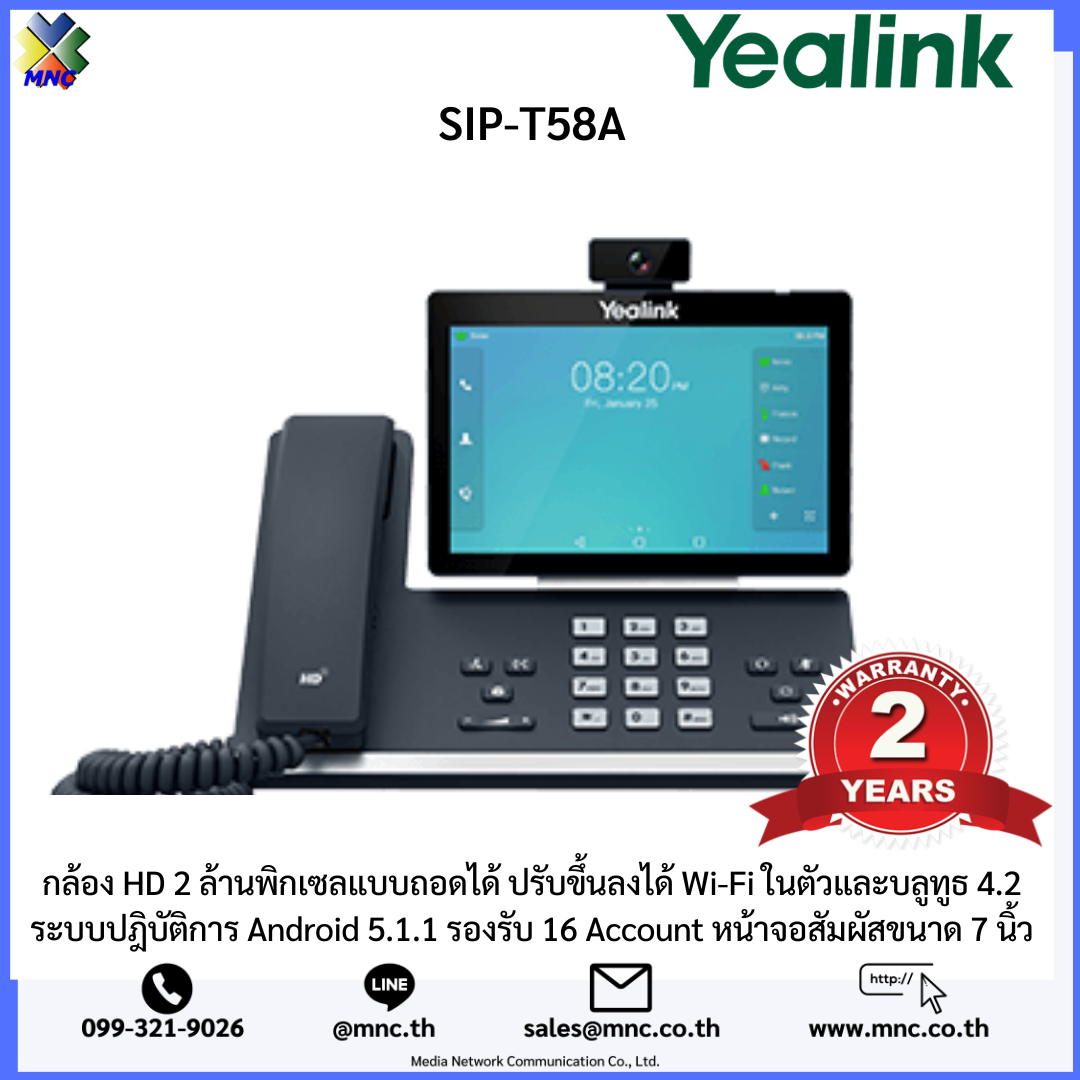

SIP-T58A Easy Audio and Visual Communication The Yealink SIP-T58A is a simple-to-use smart business phone that provides an enriched HD audio and video calling experience for
business professionals. This smart business phone enables productivity-enhancing visual communication with the ease of a standard phone. Based on Android 5.1.1 operating system, the SIP-T58A features a seven-inch adjustable multi-point touch screen, integrated 2.4G/5G Wi-Fi and Bluetooth 4.2, and it is coupled with a built-in web browser, calendar, recorder and more, which also supports the installation of third-party applications for business customization. More than that, you can easily turn your SIP-T58A smart business phone into a video phone ready with an optional removable two-megapixel HD camera CAM50. Thanks to the DECT technology, if you want to expand your horizons for busy environments, or, share one phone system with your small team by adding multiple handsets, simply turn Yealink SIP-T58A phone to the corded-cordless phone, and it will repay you up to 4 DECT handsets in total to meet your daily demands. The Yealink SIP-T58A Smart Business Phone strikes an exquisite balance between simplicity and sophistication, offering an all-in-one communications solution for today’s busy executives, managers and teleworkers.
Audio Features
• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield, Noise Proof
• Smart Noise Filtering
• Audio codec: Opus, G.722, PCMA, PCMU, G.729,G.729A, G.726, G.723.1, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Video Features
• 720p@30fps HD video call
• Video codec: H.264 High Profile, H.264, VP8
• Video quality: 720P (1280×720)-30fps ( ≥ 512 kbps)
• Yealink CAM50 camera:
– 2 mega-pixel
– Plug and play
– Adjustable
– With privacy shutter and LED indicator
– Vertical tilt angle adjustable: 50°
• Field of view (FOV): 70.2°
• Self view (local video preview)
Display and Indicator
• LCD screen:
– 7″ 1024 x 600 capacitive adjustable touch screen
– Vertical tilt angle adjustable: 48°
• 5 points multi-touch surface
• Screensaver and Wallpaper
• LED for call and message waiting for indication
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number, and photo
Android bundled Applications
• FileManager/Email/Calendar/Camera/Gallery/
Recorder/Calculator/Browser/Message
• Third-party Android application support
Phone Features
• Yealink’s SDK (Software Development Kit)
• 16 VoIP accounts
• Call hold, call forward, call waiting, call transfer
• One-touch speed dial, hotline, mute, DND
• Group listening, emergency call
• Redial, call return, auto-answer
• Direct IP call without SIP proxy
• Ring tone select/import/delete
• Set date time manually or automatically
• Dial plan, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• 3-party video conferencing
• 10-party audio/video mixed conferencing (up to two video calls)
• Data import/export via Bluetooth, email, etc.
• DoorPhone features: Preview, One-button Open, Monitoring
• Content sharing (via Yealink VCD)
• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:
– Basic functions: Answer/end, call mute
– Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
• Analog PSTN calls via CPN10
• Wireless Access Point (AP mode)
Corded-Cordless Phone (via DECT Dongle DD10K)
• Up to 4 DECT cordless handsets
• Up to 4 concurrent calls
• Support Yealink W52H/W53H/W56H/DD Phone/CP930W
• Slave Handset for Master Deskset
IP-PBX Features
• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Remote office, hot desking, intercom, paging
• Call completion
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup
• Music on hold
• Call recording
Directory
• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Google contacts
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
Feature keys
• 27 one-touch DSS keys
• 7 feature keys: hold, transfer, message, headset, mute, redial, speakerphone
• Volume control keys
• Illuminated mute/headset/hands-free speakerphone key
Interface
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• Built-in dual band Wi-Fi:
– Network standard: IEEE802.11a/b/g/n/ac
– Transmission rate: Up to 433Mbps (dynamic)
– Frequency range: 2.4GHz/5.0GHz
• Built-in Bluetooth 4.2 for
– Bluetooth headsets
– Pairing mobile devices
– Simultaneous connection of one headset and one mobile phone
• 1 x USB 2.0 port (on the top of the phone) for:
– Yealink CAM50 camera
• 1 x USB 2.0 port (on the rear of the phone) for:
– USB flash drive
– Wired/wireless USB headset
– Color-screen expansion modules
– Wireless Headset Adapter EHS40
• 1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• Supports up to 3 color-screen expansion modules
Management
• Configuration: browser/phone/auto provision
• Auto provision via FTP/TFTP/HTTP/HTTPS
• Auto provision with PnP, Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log
• Only the administrator can install/uninstall apps via autop
• Setup Assistant wizard
Network and Security
• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP
• Transport Layer Security (TLS1.2)
• HTTPS certificate manager
• AES encryption for configuration file
• Adb encryption authenticated
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
Other Physical Features
• Color: Classic Grey
• Wall mountable (optional)
• External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
• USB output currency: 5V 500mA
• Power consumption (PSU): 1.9W-5.7W
• Power consumption (PoE): 2.6W-7.4W
• Dimension (W*D*H*T): 259.4mm*220mm*239mm*42.6mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C (+32~104°F)
Package Features
• Package content:
– Yealink SIP-T58A with Camera IP phone
– Handset with handset cord
– Ethernet Cable
– Stand
– Yealink CAM50 camera
– Quick Start Guide
– Power Adapter (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 9.45 kg
• G.W/CTN: 10.55 kg
• Giftbox size: 324 mm*293 mm*128 mm
• Carton Meas: 680 mm*303 mm*332 mm
Warranty
- 1 Years warranty
Download
Product Datasheet
